CHARNWOOD W014 FLOOR STANDING UNIVERSAL ROUTER TABLE, FOR ALL MODELS OF ROUTER
Sold & shipped by Charnwood Machinery
Available online only and not stocked in B&Q stores
Product details
Product information

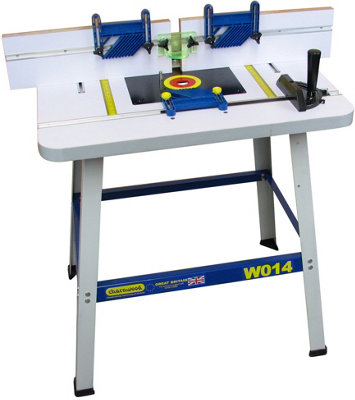

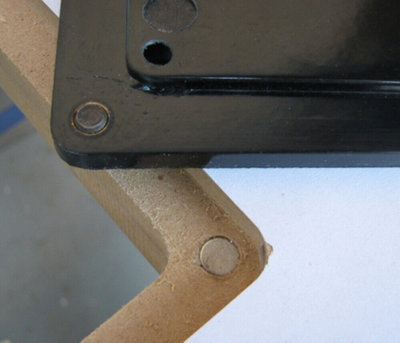

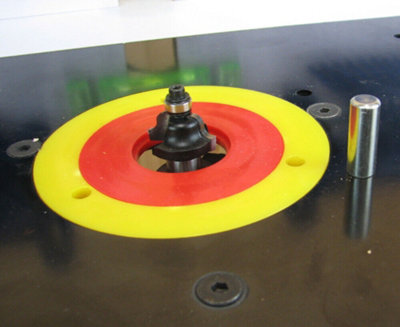

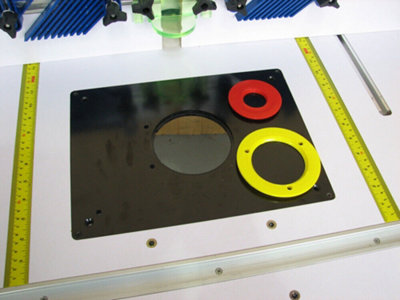

A versatile floorstanding router table for inverted table routing. Can be used with any 1/4″ or 1/2″ sized router. The table top is made from a single piece of 35mm thick laminated MDF, to provide a flat & durable surface to work on. The mounting plate is made from a tough plastic which can be drilled to mount any router. The plate is held in place by magnets allowing tool free removal of the router from the table, when making adjustments or changing cutters. Two insert rings allow the diameter of the aperture to be reduced when working with smaller diameter cutters.

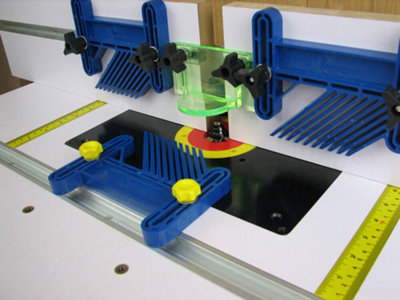

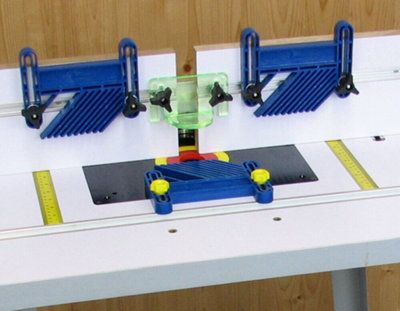

Secure clamping of the work piece is achieved by setting the 2 fence mounted featherboards, to hold the work down against the table top and the front featherboard to hold the work up against the fence. Using this method edge mouldings can safely be cut onto small pieces such as beading or picture frames.

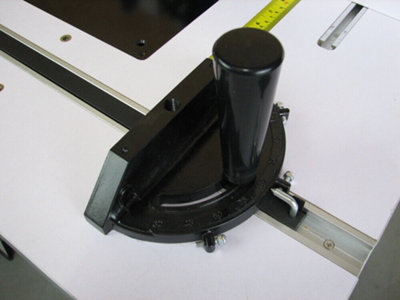

For cutting across grain, or tenons, a metal mitre fence is supplied which runs in a T-slot along the front of the table. The mitre fence has stops at 45 degrees each way and at 90 degrees.

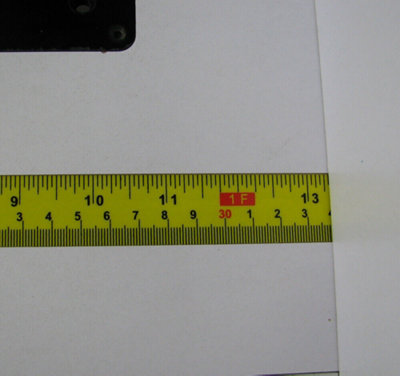

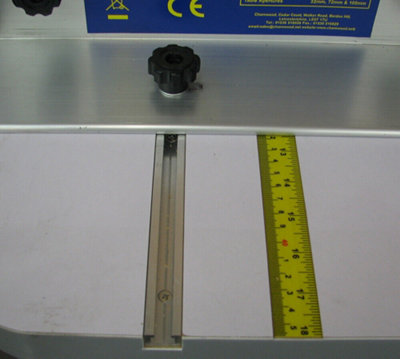

The guide fence has two adjustable faces which can be moved to match the diameter of the cutter. Two scales in the surface of the table allow fast and accurate setting of the fence.
At the rear of the fence is an outlet for dust extraction.
Supplied with 3 featherboards, mitre guide, lead in pin for curved pieces, 68mm diameter extraction outlet. Use our 100/75RC to convert for 100mm diameter extraction hose.
W014 Specification
Table Size 800mm x 600mm
Table Apertures 97, 67, 32mm
Table Height 870mm
Dust Outlet 68mm
Mitre Guide T Slot (W x D) 19mm/23.5mm x 9.5mm
Dimensions (WxDxH) 800mm x 600mm x 1020mm
Weight 24kgv
Warranty 1 Year
Rating Light Trade
Available as an optional item, our NVR switch is recommended as a safety device to prevent the operator from having to reach underneath the table to start and stop the router.
- Guarantee - 1 year
- Comes with Supplied with 3 featherboards, mitre guide, lead in pin for curved pieces, 68mm diameter extraction outlet.
Features and benefits
- A versatile floorstanding router table for inverted table routing.
- Can be used with any 1/4″ or 1/2″ sized router.
- The table top is made from a single piece of 35mm thick laminated MDF, to provide a flat and durable surface to work on.
- The mounting plate is made from a tough plastic which can be drilled to mount any router. The plate is held in place by magnets allowing tool free removal of the router from the table, when making adjustments or changing cutters.
- Secure clamping of the work piece is achieved by setting the 2 fence mounted featherboards, to hold the work down against the table top and the front featherboard to hold the work up against the fence.
- Integral Scale For Accurate Fence Setting
- Sliding Mitre Fence Included
- Lead On Pin For Curved Work
Specifications
Brand | Charnwood |
---|---|
Depth (cm) | 60cm |
Height (cm) | 102cm |
Pack quantity | 1 |
Weight (kg) | 30kg |
Width (cm) | 80cm |
Product code | 5060281696809 |
