See more Water heaters

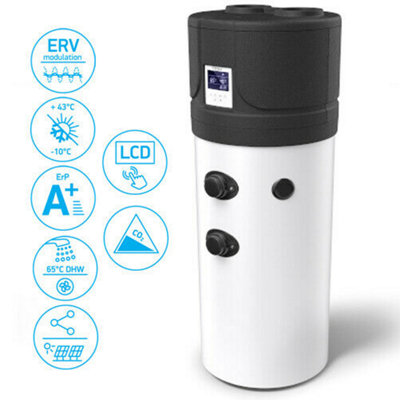

TESY Air Source Heat Pump 260 S Aquathermica
Sold & shipped by Modern Group Ltd
Available online only and not stocked in B&Q stores
Product details
Product information

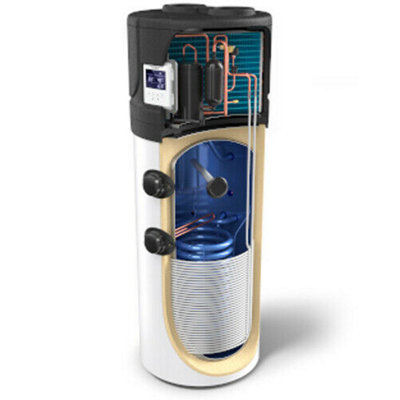

The TESY AquaThermica is an all in one air-to-water, air source heat pump for generating hot water for domestic hot water and central heating. The TESY AquaThermica has a capacity of 200 litres of water and offers a maximum water temperature of 65 degrees. It has an internal sealed coil heat exchanger to allow a closed (unvented) connection to a central heating / under floor heating circuit. The appliance has an efficiency rating of A+ making it one of the most efficient water heaters in its class. It is powered by a single phase 230v power supply that is wired via a fused spur. The heat pump requires connection of 160mm diameter intake and exhaust air hoses, that connect to the top of the appliance.The AquaThermica offers a state-of-the-art, compact solution to creating energy efficient hot water for domestic and central heating hot water. It is an environmentally friendly product, operating with renewable energy sources resulting in lower CO2 emissions. The appliance is highly efficient with a precisely balanced refrigerant cycle due to an electronically commutated motor and an electronic expansion valve resulting in 75% lower electricity consumption when compared to similar sized electric hot water cylinders.The appliance includes a user friendly programmable LCD touch control screen and a built in diagnostics control system.It can operate in conjunction with other heat sources, such a conventional boiler or with other renewable energy sources, such as Solar PV Panels.Exhaust and Intake Hoses Not Included - 160mm diameter.
Features and benefits
Maximum working pressure 8 barEnergy class A+Diameter 630 mmMaximumoperational temperature 75 °CCapacity 194 LThermo pocket x1 piecesHeating time 8:59 h:minDeclared load profile LInsulation (rigid PU) 50 mmElectric heating element power 1.5 kWHP maximum absorption 0.663 + 1.5 (e-heater) = 2.163 kWMin. ÷ max temperature heat pump air intake (90% R.H.) -10 ÷ 43 °CFrequency 50 HzAnnual electricity consumption in kWh under average climate conditions 811.7 kWhPower supply 230 VCompressor RotaryMin. ÷ max temperature installation site -10 ÷ 43 °CCompressor protection Thermal circuit breaker with automatic resetMaximum current in HP 3.1 + 6.5 (e-heater) = 9.6 AThermodynamic circuit protection type Safety pressure switch with automatic resetRequired overload protections 16A T fuse/ 16 A automatic switch characteristic C (to be expected during installation on power supply systems)Fan CentrifugalHP Maximum settable temperature 65 °CInternal protection Single safety thermostat with manual reset on a resistive elementNominal air capacity 314 m³/hMax. pressure head available 50 PaMotor protection Internal thermal circuit breaker with automatic resetCondenser Wrapped externally not in contact with waterTransport weight 112 kgSound power Lw (A) 53 dB(A)Automatic anti-Legionnella disinfection cycle YESHeight 1720 mmMinimum height of the premise 1785 mmCathodic protection Mg anode Ø 32 x 400 mmDefrosting 4-way valveCoP (DHW) 2.9Heat Pump Thermal Power yield (P rated) 1.1 kWDegree of Protection IPX4Refrigerant R134aRefrigerant charge 880 g CO2 equivalent 1287 tMax. quantity of hot water at 40; V40; [EN16147:2017] 262 LAverage heat pump consumption [Condition EN16147:2017 A7/W55] 0.43 kW

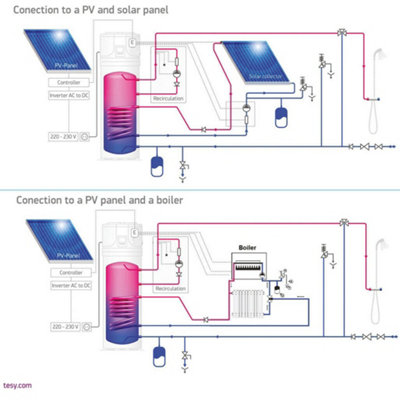

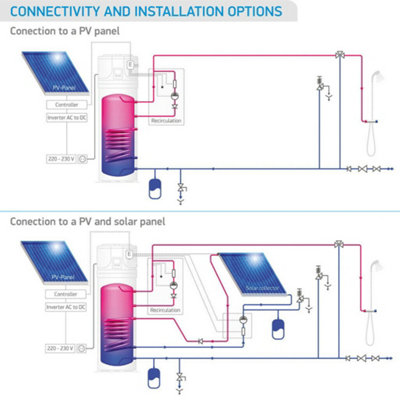

- ERP A+ Optional connections to solar thermal and photovoltaic systems
- Minimum and maximum temperature of the incoming air:( at 90% R.H): +4 up to +43 ⁰ C
- Operation modes - Automatic / Economy / Rapid heating Automatic defrost system
- Anti-Legionellae disinfection cycle Low noise levels
- Highly efficient rotary compressor Eco friendly refrigerant
- COP 2.8 – 3.1 according to EN16147 Indoor 20 ⁰c
Specifications
| Product code | 3800879310500 |
|---|
