20mm Pre-Insulated Multilayers Composite PEX Al PEX Pipe for Hot Water System 50m Roll
Sorry, this product is currently out of stock.

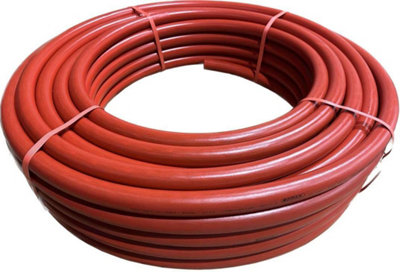

20mm Pre-Insulated Multilayers Composite PEX Al PEX Pipe for Hot Water System 50m Roll
Currently unavailable
This item is not available at this time.Product details
Product information
The pre-insulated pipe incorporates a fire -ressistant insulation that is manufactured according to EN 14313. The insulation foam has a fire class rating of BL-S2-D0 as per BS EN13501-1. The combined assembly of the pipe,insulation and PE-LD foil achieves a fire class rating of E according to BS EN3501-1.
Benefits:
Fast Installation Meets the fire requirements for most building types. Maintains the effectiveness of the insulation Reduced costs with no further insulation or labour required. Perfect for joint-free plumbing applications
Performance

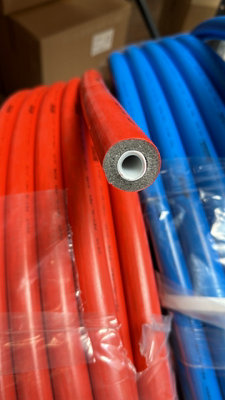

Insulation : 7mm round extruded pipe insulation made of polyethylene foam with closed-cell material structure
Thermal conductivity(insulation) : λ=0, 040 W/m*k
- Guarantee - 10 years
Specifications
| Pack quantity | 1 |
|---|---|
| Pipe thickness | 2mm |
| Product diameter | 20mm |
| Product length | 500mm |
| Product weight | 19kg |
| Water regulations | WRAS approved |
| Connection type | Compression |
| Material | Aluminium & cross-linked polyethylene (PE-X) |
| Maximum operating pressure | 10bar |
| Pipe shape | Coiled |
| Product code | 5060706095330 |
