Vent Axia 454061 Silhouette 150XH Kitchen / Utility Room Extractor Fan (Humidistat/Timer)
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
Product details
Product information

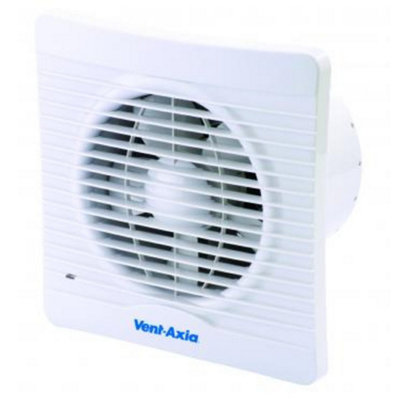

Ultra slim axial extractor fan for kitchen, utility room or larger bathrooms.
Built in humidity (condensation) sensor automatically switches fan on when condensation is detected, then off after a pre-set time. Additionally the fan can be connected to run in conjunction with the room light switch, so that when the room light is switched on the fan starts, then after a pre-set time the fan switches off. This fan requires at a permanent live connection. If using the timer option a permanent live, switched live and neutral (3 cores, excluding earth) connections are required. In any case this fan needs to be connected to a permanently energised circuit that is not routinely switched off.
- Fittings & fixings not included
- Ducting not included
Features and benefits

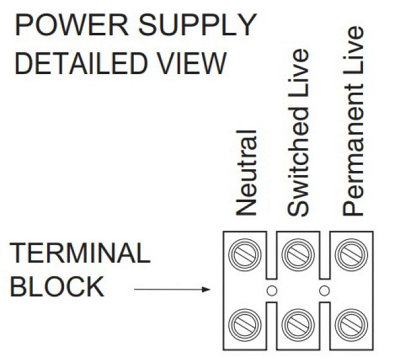

- Mains voltage 220-240V AC 50Hz. Requires THREE separate electrical connections, permanent live, switched live and neutral. Class II - double insulated, no earth connection required
- Extraction rate 67 litres per second, 241 cubic metres per hour
- Sound output 43dB(A) @3m. Suitable for wall or ceiling mounting
- Power consumption 20 watts. Time on adjustable 3 - 30 minutes

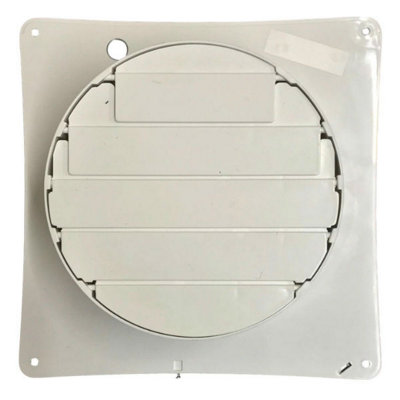

- Electrically operated back draught shutters. IPX4
- UKCA & CE certified
- Dimensions: 223mm wide x 223mm deep x 19mm thick (beyond installed surface). 147mm diameter spigot which extends for 111mm.
- THIS IS THE LARGER MODEL OF THIS FAN FOR USE WITH 150MM / 6 INCH DIAMETER DUCTING. PLEASE CHECK DIMENSIONS CAREFULLY!
Specifications
| Brand | Vent-Axia |
|---|---|
| Material | ABS plastic |
| Colour | White |
| Product height | 223mm |
| Product width | 223mm |
| Projection from the wall | 19mm |
| Spigot diameter | 147mm |
| Extraction rate | 241m³/h |
| Power voltage supply | 220-240V |
| Noise level at 3m | 43dB(A) |
| Maximum timer duration | 30min |
| Power consumption in use | 20kWh |
| Room use | Kitchen |
| IP rating | IPX4 |
| Model name/number | 454061 |
| Control type | Humidistat & timer |
| Overload protection | Overload protection |
| Timer type | Adjustable |
| Product code | 5015135494766 |
