Aqualisa eSense Gloss White Manual Electric Shower, 8.5kW
Product Features

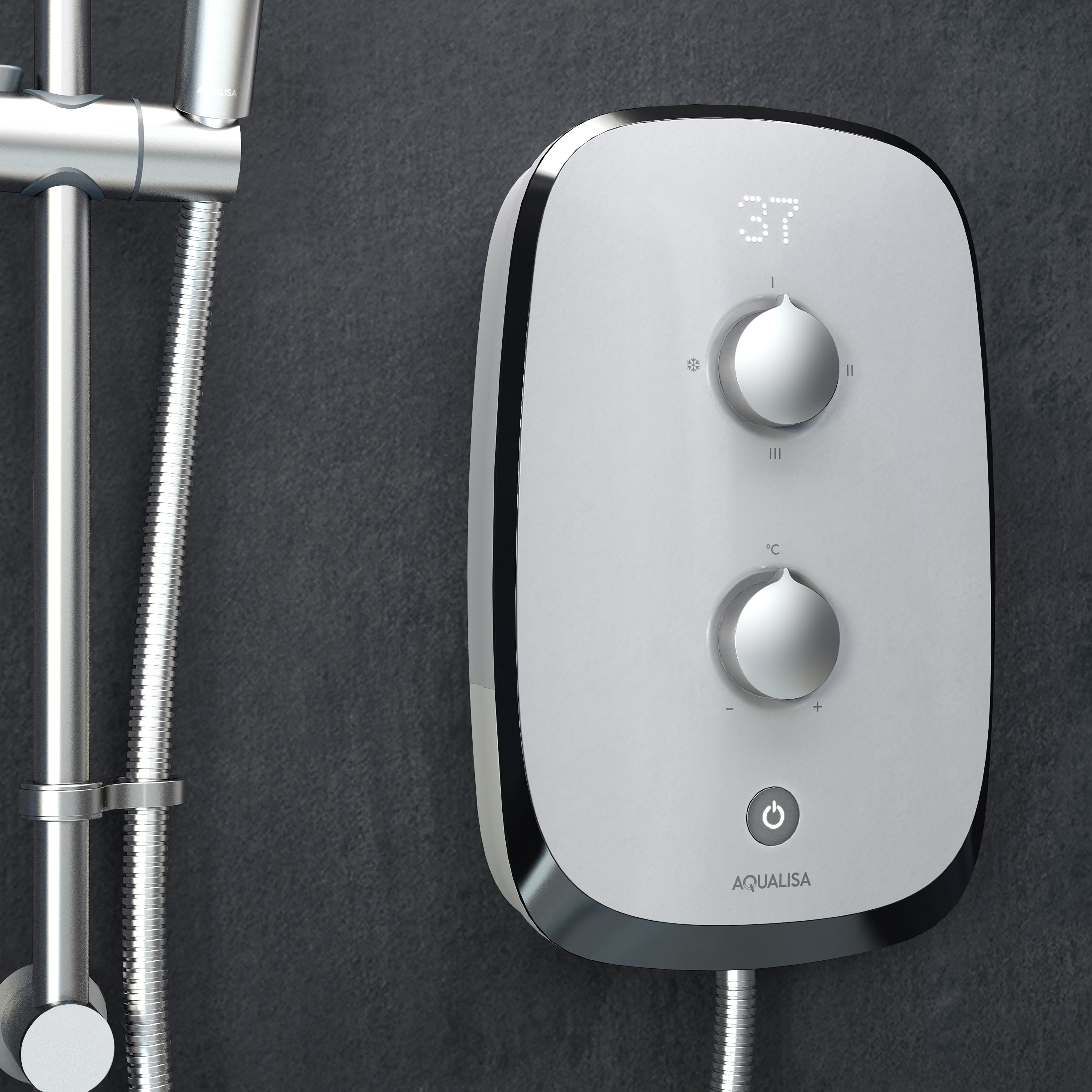

- Digital temperature display and control dial
- 3 power settings
- 8 water & 6 electric entry points
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information
Product information
In brilliant Arctic White, with a contoured, black chrome trim, the streamlined Aqualisa eSense White Manual Electric Shower has unmistakeable style appeal and is the perfect solution for showering on-demand. Alternative power settings and three spray patterns give plenty of showering choices in terms of force and coverage. A separate temperature control smoothly adjusts to the required level, which is digitally displayed and kept safe by the over temperature stop function. Automatic phased shutdown reduces limescale build-up for better performance and product durability.
- Guarantee - 2 years
- Comes with Electric engine, 600mm rail, rail ends, metal hose, hose restraint, 105mm handset, adjustable height slider, fixtures and fittings
- Assembly required
- Fittings & fixings included
Features and benefits
- Digital temperature display and control dial
- 3 power settings
- 8 water & 6 electric entry points
- Stainless steel hose
- Illuminated push power button
- Low water pressure indicator
- Over temperature protection and phased shut down safety features

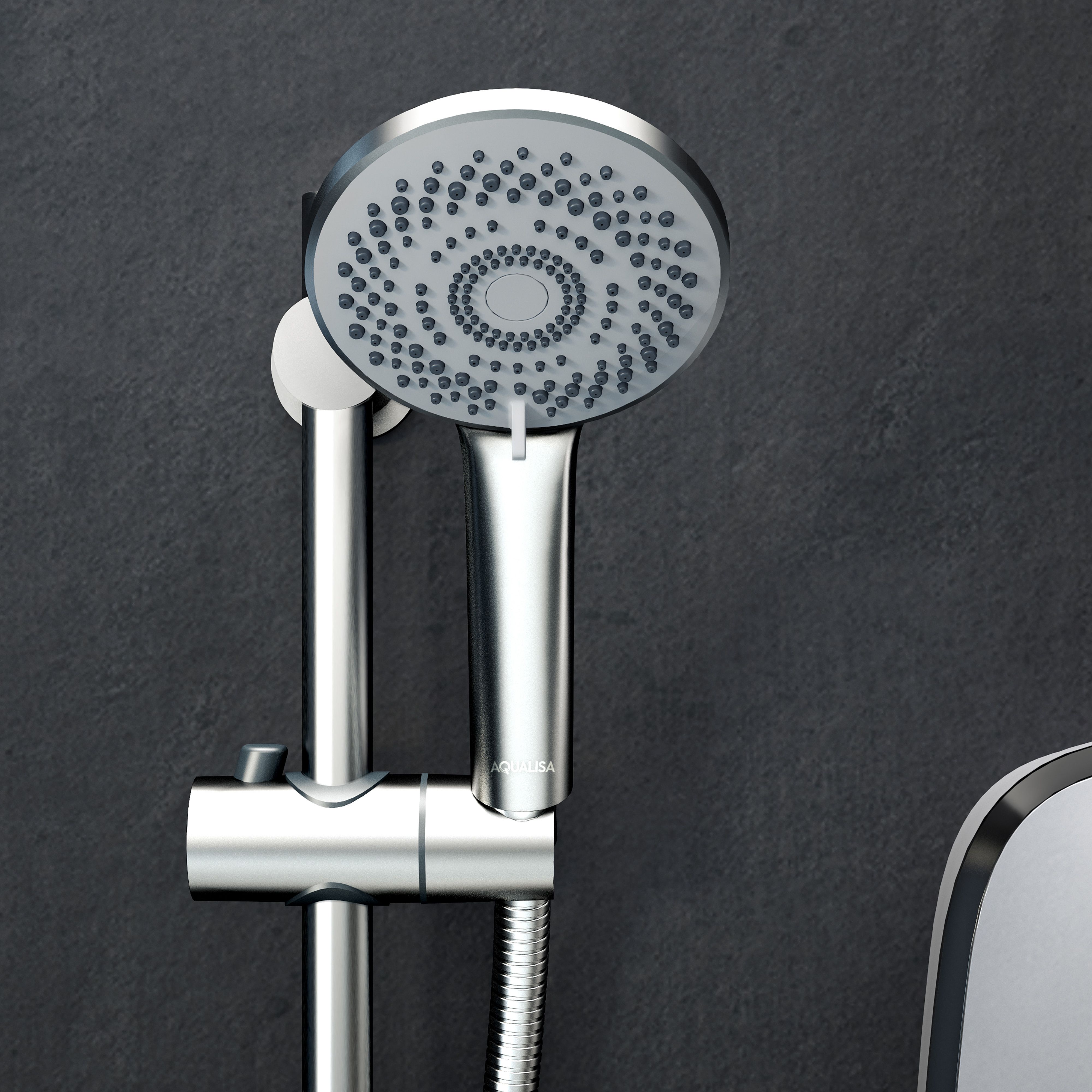

- Handheld showerhead with 3 spray settings, rub clean nozzles and a push button slider
Specifications
| Brand | Aqualisa |
|---|---|
| Range | eSense |
| Model name/number | 920KN |
| Colour | White |
| Finish | Gloss |
| Entry point (power) | Left bottom, right bottom, left top, right top, left back, top & side |
| Entry point (water) | Left back, left bottom, left side, right back, right bottom & right side |
| Flow rate | 11L/min |
| Hose length | 1.5m |
| Material | Plastic |
| Maximum operating pressure | 10bar |
| Minimum operating pressure | 0.85bar |
| Operation | Manual touch start/stop & rotary controls |
| Power output | 8.5kW |
| Power settings | 4 |
| Power voltage supply | 220-240V |
| Shower head spray patterns | 3-spray pattern |
| Suitable water pressure | Low pressure |
| Thermostatic control | Manual |
| Rail length | 600mm |

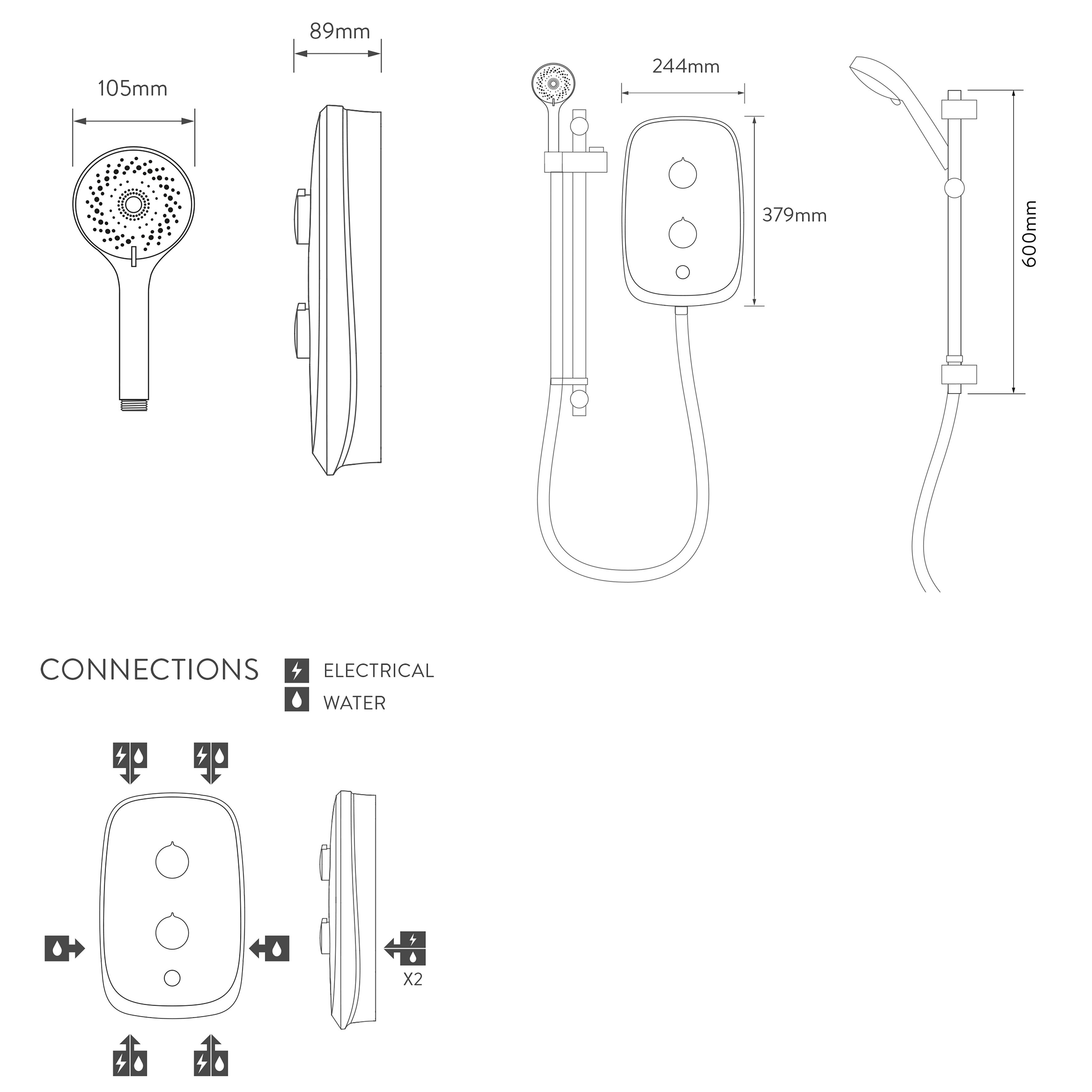

| Depth (cm) | 8.9cm |
| Height (cm) | 37.9cm |
| Width (cm) | 24.4cm |
| Product code | 5023942308008 |
Documents
Installation Guide
Fiche Document
Declaration of Conformity
Product Instruction Manual
Safety Information
Aqualisa - Rating 230-240V, 7800-8500 W Max static pressure: 1.0 Mpa (10bar) Min working pressure: 0.1 Mpa (1 bar) Open outlet: 0 Mpa (0 bar) CE UKCA BEAB Approved Intertek IPX4
INSTALLATION: Ensure shower is fully primed with water before power is connected. USAGE: Always isolate the shower from power supply after use SAFETY WARNING 1. The outlet acts as a vent and must not be connected to any form of tap or fitting not recommended by the manufacturer 2. The handset must be regularly descaled 3. Switch off immediately at the isolation switch if water ceases to flow 4. The heater unit must not be used if suspected of being frozen 5. This product will only function correctly with the shower hose and handset provided. See instructions for details
IMPORTANT - Ensure shower is fitted to flat piece of wall - Lower corner sections must be fitted and screwed home before front cover is fitted - For technical advice call +44 (0)1959 560010
Important Ensure cables fully enter the terminal block and all 6 screws are correctly tightened. Loose connections can cause overheating of cables and damage to the shower
Manufacturer / EU responsible person
EU responsible person
Aqualisa International
Address
Jan Palfijnstraat 26/002
Kortrijk
Belgium
