BG Flatplate Screwless 20A Single Intermediate Switch, Matt Black

Product details

Product information

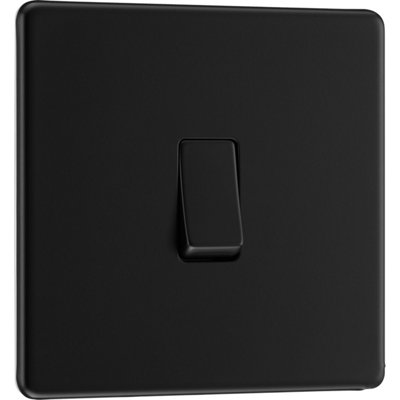

From the BG Electrical Flatplate range, this premium 20A intermediate single light switch in matt black has a flat profile, soft rounded-corners, and a removeable screwless clip on/off front plate. Intended as a middle switch that allows for more than 2 switches are in a circuit, e.g. stairways.

  • Guarantee - 25 years
  • Only fixings included
  • Rocker
  • Backed-out captive screws

Features and benefits

Part of BG Electricals' Flatplate range, this premium 20A intermediate light switch should be used as the middle switch when operating one light from more than two locations, such as either end of a hallway and the top of the stairs. With a matt black finish and rounded corners, the screwless front plate is simple to clip on/off, so you can leave the base in place when redecorating. A moisture control gasket prevents metal edges from tarnishing whilst captive backed out terminal screws ensure a quick and straight forward installation.

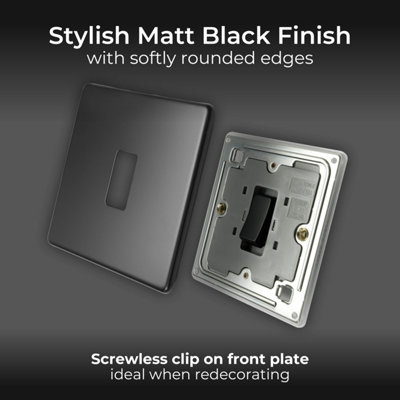

  • Style: The Screwless Flatplate front plate which clips on and off, ideal when re-decorating. No visible plastic around switch.

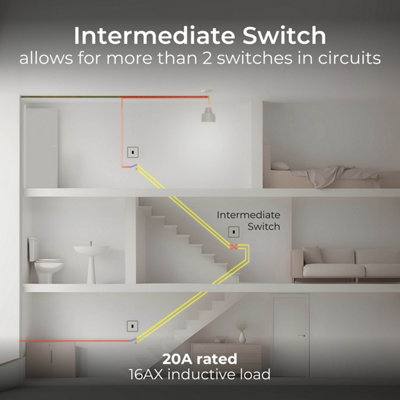

  • 20A Intermediate Light Switch: Use as the middle switch when one light needs to be operated from more than two locations, such as on a landing and the top and bottom of the stairs.

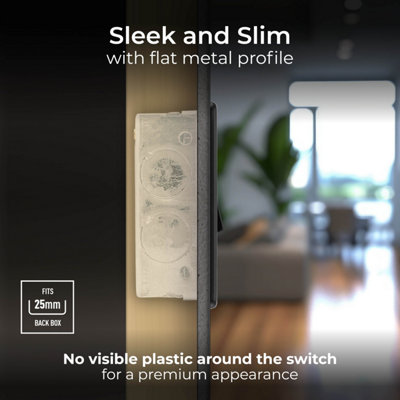

  • Moisture Control Gasket: Protects metal edges from tarnishing. Minimum mounting box depth 25mm.

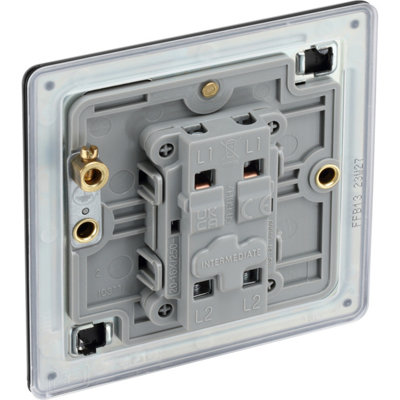

  • Easy Installation: Captive, backed out terminal screws for a quick installation and to prevent screw loss. Adheres to BS60669-1 regulations which ensures a safer electrical installation.
  • 25 Year Warranty: Giving you peace of mind with this British General product.

Specifications

BrandBG Electrical
Model name/numberScrewless Flatplate
ColourMatt Black
Pack quantity1
Switch/socket profileFlat
Screwed/screwlessScrewless
Power voltage supply220-240V
Number of earth terminals1
Number of gangs1
Minimum box depth required25mm
Amp rating20A
Insert colourBlack
Product code5050765238021

Documents

Product Instruction Manual
