Charnwood B300 12'' Premium Woodworking Bandsaw 165mm Cutting Depth

Sold & shipped by Charnwood Machinery

Left chevron
Charnwood B300 12'' Premium Woodworking Bandsaw 165mm Cutting Depth
Right chevron
Checking availability...

Product details

Product information

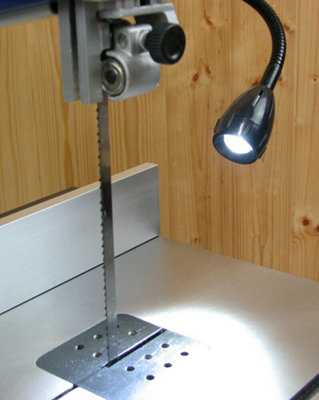

Premium Grade 12” Woodworking Bandsaw. A floor standing woodworking bandsaw with a cutting capacity of 150mm (6”). The power is delivered by a quiet induction motor with a belt drive to the bandsaw wheel. A two speed pulley allows the correct blade speed to be selected, depending on the hardness of the material being cut. The key to straight & accurate cutting on a bandsaw is to have a good set of blade guides. The B300 has 3 bearings on the blade guard. The 2 sealed bearings mounted side-on to the blade, control blade twist and keep it true. The rear bearing takes the thrust of the back of the blade allowing it to run freely. The same setup is repeated beneath the table. The cast iron table tilts from 90 to 45 degrees, on a rack & pinion, & has a positive stop at both of those positions. Any angle in between can be read off the scale and locked in. For rip cuts the guide fence can be situated on either side of the blade, & locked into position with a single press of the lever & has a clear marker to set against the metric scale. The fence can be fitted in 2 ways. When cutting thicker material the full face height of 60mm is used. When cutting thin and narrow strips the fence is fitted with the small face against the blade to allow clearance around the guides. Fitted with an LED work light on a flexible stem. The doors are fitted with safety locks which cut power to the motor when the doors are open for blade changing or cleaning. A blade tension lever quickly sets the tension & after a blade change fine tuning can be carried out with the aid of a tension indicator and scale. A window in the top door allows the operator to confirm blade tension is correct and make an adjustment when necessary. A dust extractor is always recommended. The dust collection outlet has 3 rings which allow it to accept 3 sizes of hose, 50mm, 75mm & 100mm dia making it compatible with any type of extraction system. Fitted with an integral dust collection draw & a High Quality British blade

  • Comes with 1/2” x 4tpi blade, rip fence, mitre fence, work light, floor stand, 2.0m power cable and UK 3 pin plug.Guarantee - 5 years
  • Includes - 1/2” x 4tpi blade, rip fence, mitre fence, work light, floor stand, 2.0m power cable and UK 3 pin plug.

Features and benefits

Charnwood B300 Specification; Maximum cutting depth 165mm (6″), Throat width 305mm (12″), Max. cutting width with fence 185mm Left / 180mm Right, Table size 480mm x 390mm, Table Height 1000mm, Table tilt 0-45 degrees, Mitre Guide T-Slot (x2) 16mm / 20mm, Cutting speed 800 & 370m/min, Motor (induction) 750w (1hp), Blade length 2240mm, Blade widths 6-20mm (1/4″ – 3/4″), Dimensions (WxDxH) 790mm x 580mm x 1600mm, Weight 62Kg, Assembly Time Required 45 Minutes (Needs 2 People), Product Guarantee 5 Years,

  • Precision Ground Cast Iron Work Table
  • Quick Action Lock On Rip Fence
  • Crosscutting Mitre Guide Included
  • Quiet Induction Motor
  • Mains Powered LED work Light
  • Integral Dust Collection Tray
  • Supplied with a High Quality Blade
  • 5 Year Guarantee


Cable length2m
Maximum blade length2240mm
Maximum blade speed800m/min
Maximum cutting height165mm
Maximum cutting width305mm
Maximum table tilt45°
Model name/numberB300
Motor typeBrushless
Product depth580mm
Product height1600mm
Product width790mm
Table adjustment typeRack & pinion tilt
Table depth390mm
Table width480mm
Tool weight (corded)62kg
Product code5060281698322
