Charnwood W629 10'' Cast Iron Table Saw

Sold & shipped by Charnwood Machinery

Left chevron
icons.title_zoominicons.title_zoomouticons.title_zoomreset
Charnwood W629 10'' Cast Iron Table Saw
Right chevron
£
1,147
Loading
Checking availability...

Product details

Product information

The W629 has now become our best selling table saw model. The cutting capacities are big enough for any hobby workshop, providing a level of accuracy only normally found on industrial machinery, with a compact foot print suited to the average sized workshop. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. Supplied with 36 tooth TCT sawblade, sliding carriage, extension tables, sliding mitre fence, floorstand, adjustable feet, 1.7m power cable and UK 3 pin plug. Charnwood W629 Specification: Maximum Ripping Width Using Fence 730mm, Maximum Crosscutting Width 500mm, Blade Tilt 90 – 45 degrees, Mitre Guide T-Slot Width 15/19mm, Mitre Guide T-Slot Depth 7mm, Motor (induction) Braked 2200w (3hp) / 240v, No-Load Blade Speed 4000 rpm, Minimum Blade Width (Kerf) 3.0mm, Dimensions (WxDxH) 1480mm x 1000mm x 1100mm, Weight 110Kg, Rating Light Trade, Product Guarantee 5 Years. It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. Note: It is not possible to use a stacked dado set with this saw

  • Guarantee - 5 years

Features and benefits

  • Quiet Induction Motor with Brake
  • Cast Iron Precision Ground Table
  • Extension Tables as Standard Equipment
  • Sliding Carriage as Standard Equipment
  • Separate Hand wheels for Blade Adjustment
  • Quick Action Precision Rip Fence

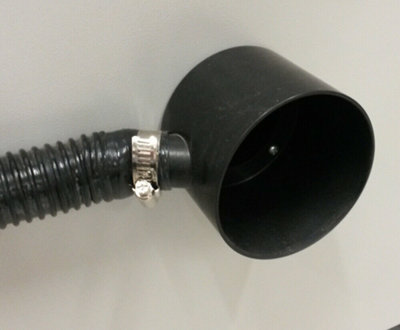

  • 100mm Dust Extraction Outlet
  • Solid Floor stand Base Included

Specifications

Brake typeMotor
Cable length1.7m
ColourBlue
Compatible blade diameter250mm
Disc bore size30mm
Dust extraction typeDust extraction facility
Fence typeAdjustable fence & mitre fence
Maximum bevel left45°
Maximum cutting capacity (45° bevel)64mm
Maximum cutting capacity (90° bevel)80mm
Motor typeInduction
No load speed4000
Plug includedIncludes plug
Power voltage supply220-240V
Product depth1480mm
Product height1100mm
Product width1000mm
Table depth635mm
Table width1000mm
Tool weight (corded)110kg
Wattage2200W
Product code5060281699978
