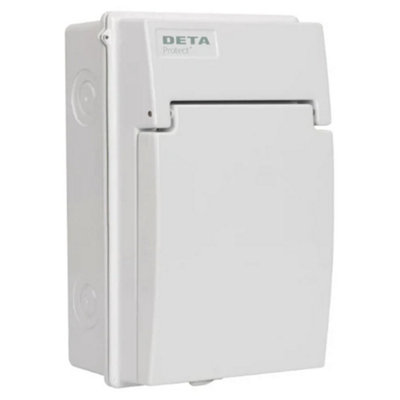

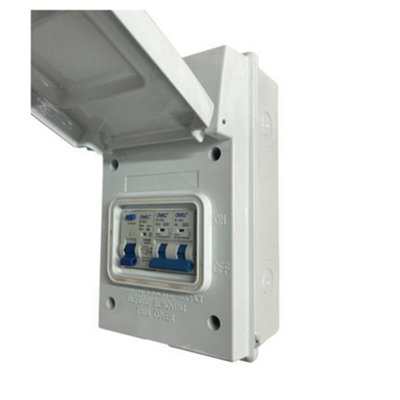

Deta BV1086 2-Way IP65 Garage Consumer Unit with 63A RCD / 32A & 6A MCB's
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£36.45
Product Features
- Robust metal unit in full compliance with amendment 3
- Latching lid. IP65 rated
- B1620 - 63A / 30mA double pole RCD incomer. 1 x B1232 SP Type B and 1 x B1206 Type B MCB's fitted
Product details
Product information
Product information
Garage Consumer Unit
- Guarantee - 1 year
- DIN rail supplied
- Fixed busbar
Features and benefits
- Robust metal unit in full compliance with amendment 3
- Latching lid. IP65 rated
- B1620 - 63A / 30mA double pole RCD incomer. 1 x B1232 SP Type B and 1 x B1206 Type B MCB's fitted
- 2 x 20mm knockouts top, bottom and sides. 1 x 20mm knockout on rear
- Manufactured to BS EN 61439-3. UKCA & CE certified
- Dimensions: 220mm tall x 140mm wide x 100mm deep
Specifications
| Amp rating | 63A |
|---|---|
| Brand | Deta |
| Consumer unit usage | Garage |
| Mains switch rating | 63A mains switch |
| Model name/number | BV1086 |
| Number of MCBS supplied | 2 x MCBs (1 x 6A & 1 x 32A) |
| Number of populated ways | 2 |
| Number of RCDS supplied | 1 x 63A 30mA RCD |
| Pack quantity | 1 |
| Depth (cm) | 10cm |
| Height (cm) | 22cm |
| Weight (g) | 1820000g |
| Width (cm) | 14cm |
| Product code | 5016211425025 |
Reviews
5 / 5(1 reviews)ARB123 - 5 / 5 - 19/09/2025
Great product
Bought for domestic garage. The configuration was right for what was needed.
