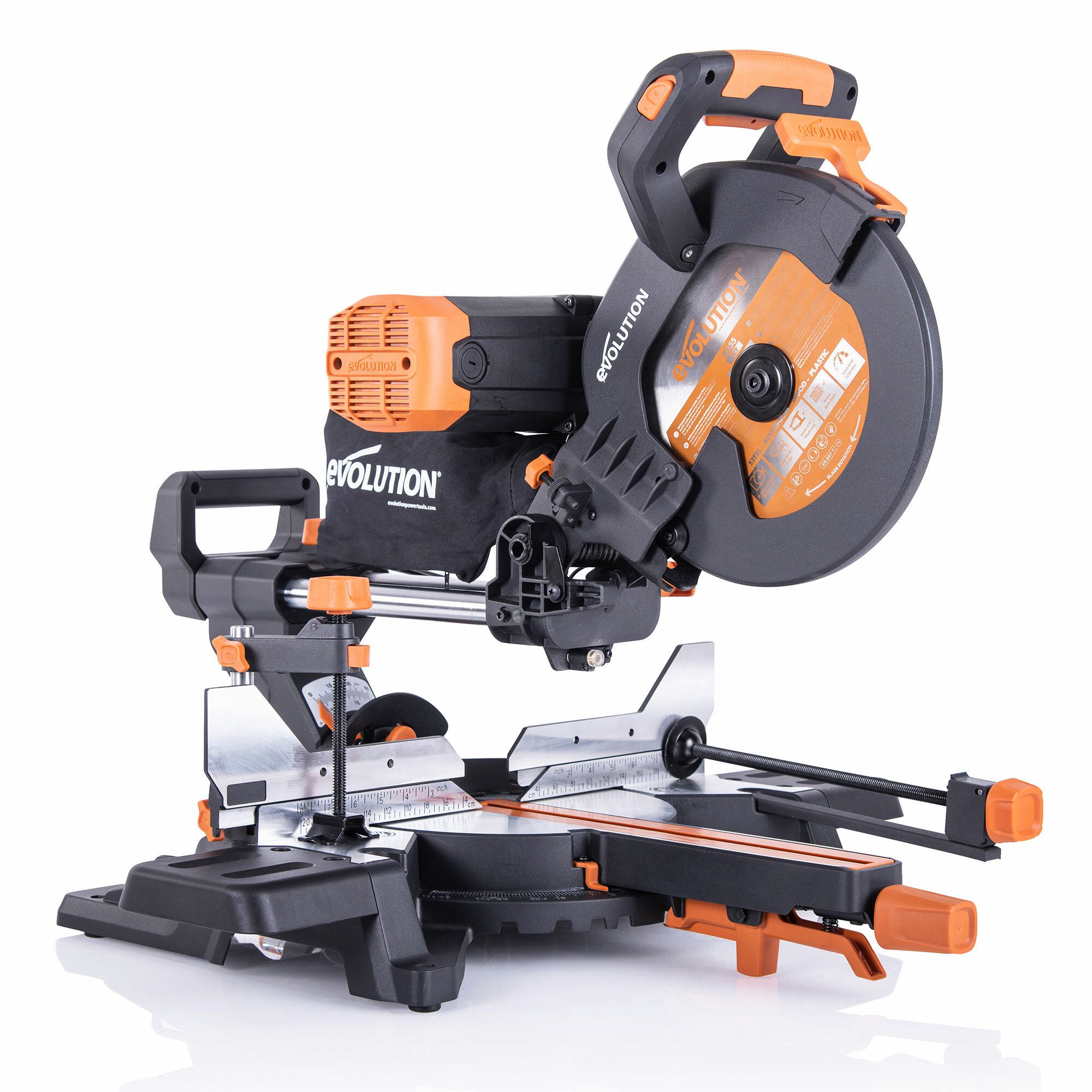

Evolution 2000W 230-240V 255mm Corded Sliding double compound mitre saw R255SMS+
Product Features

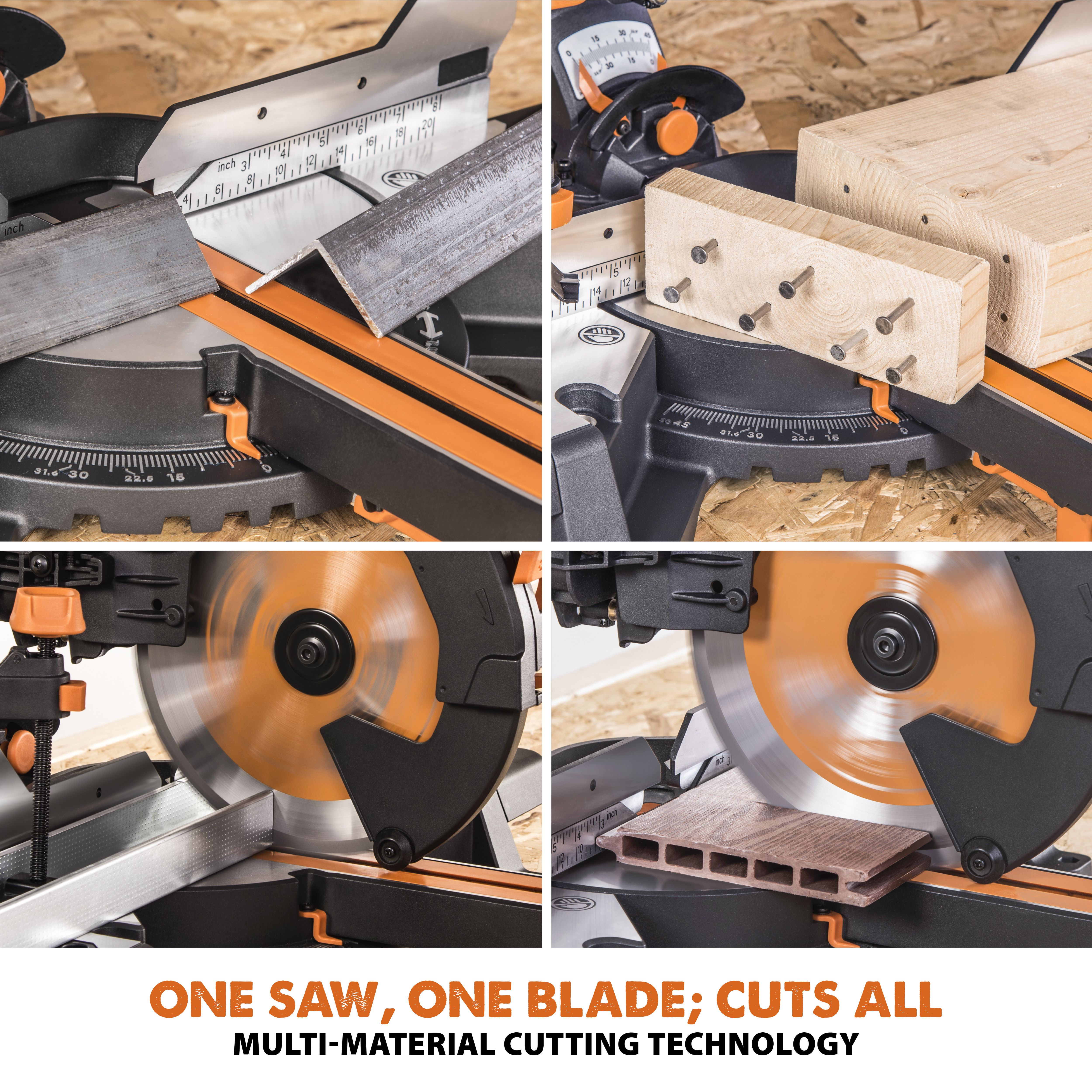

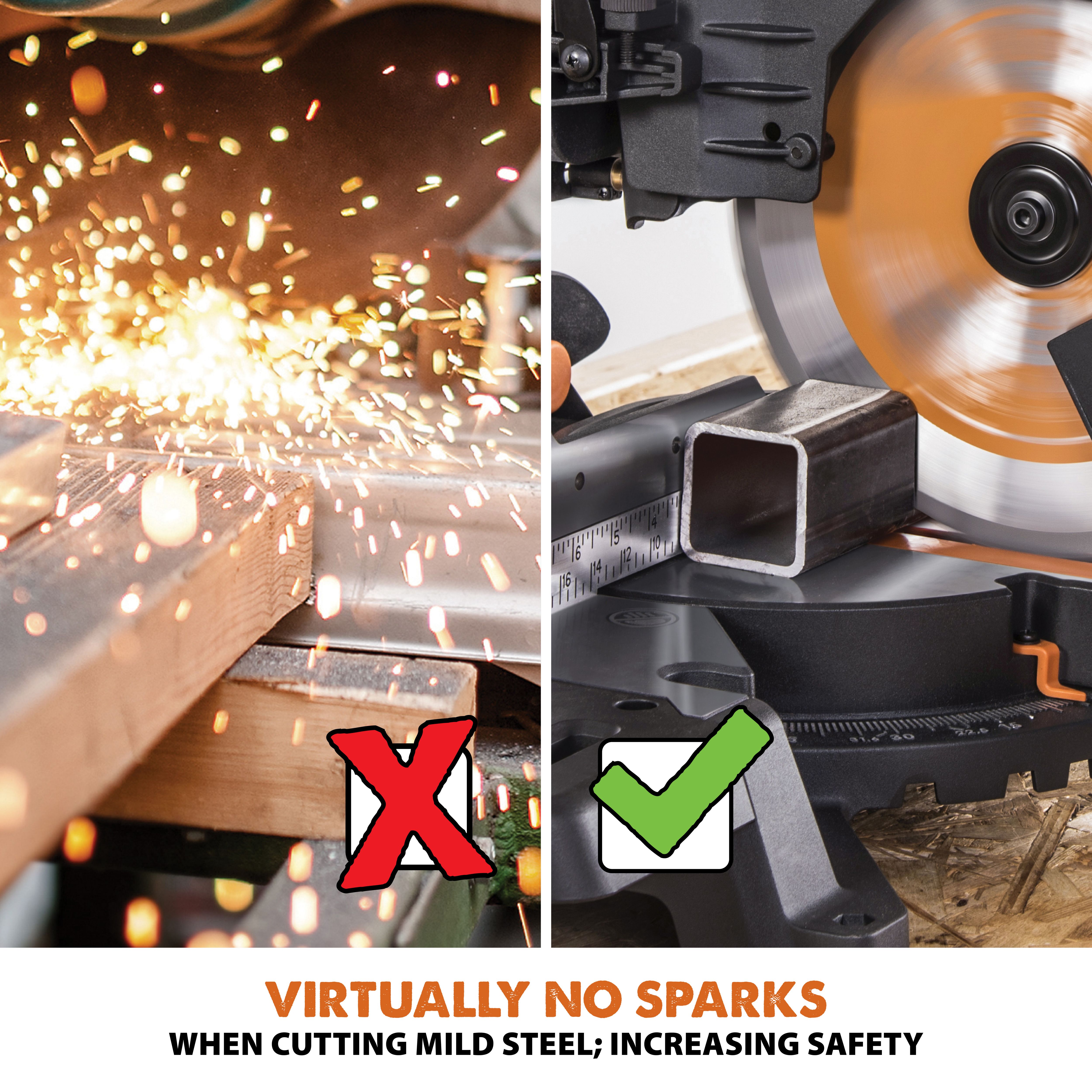

- Provides clean and precise cuts no matter the material with multi-material technology

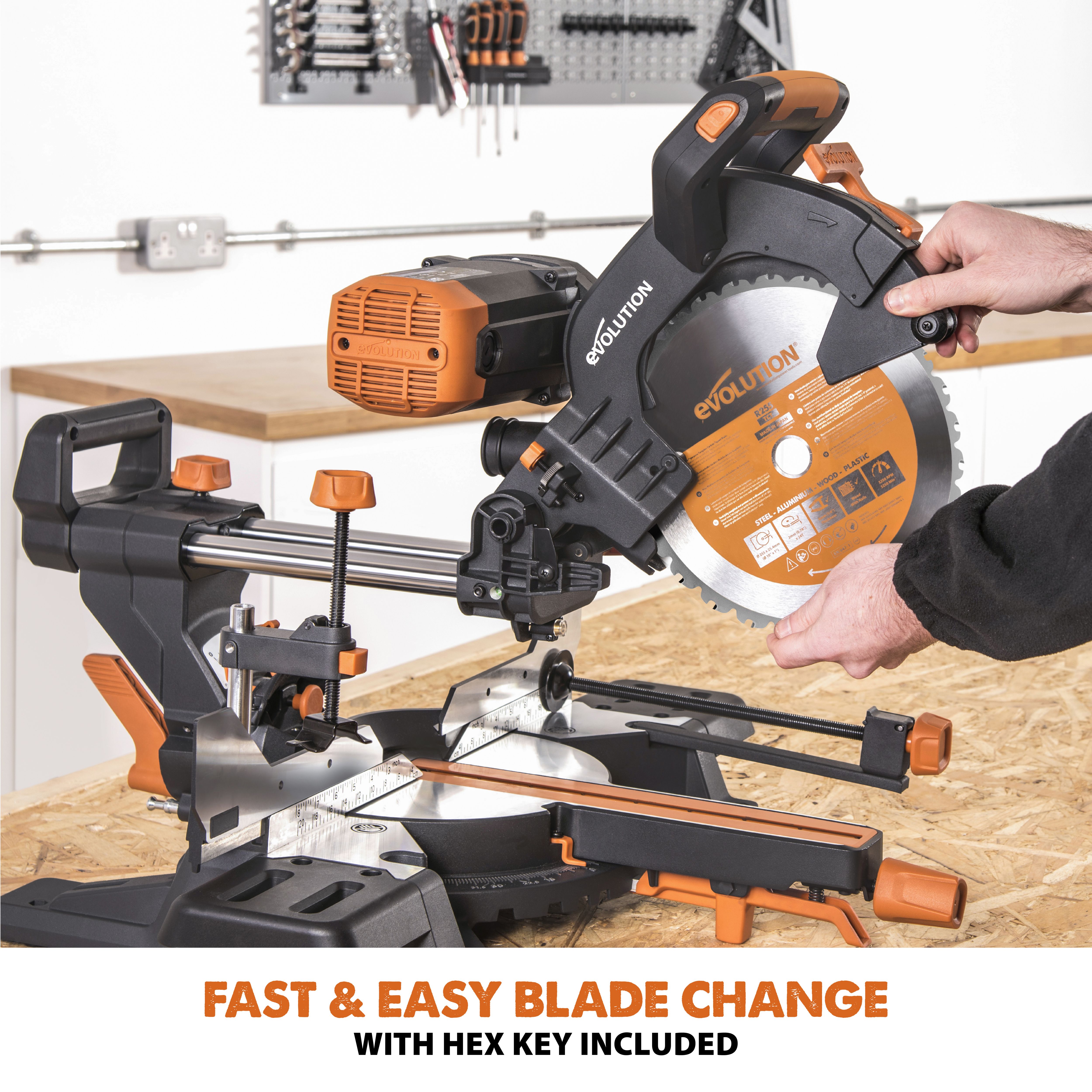

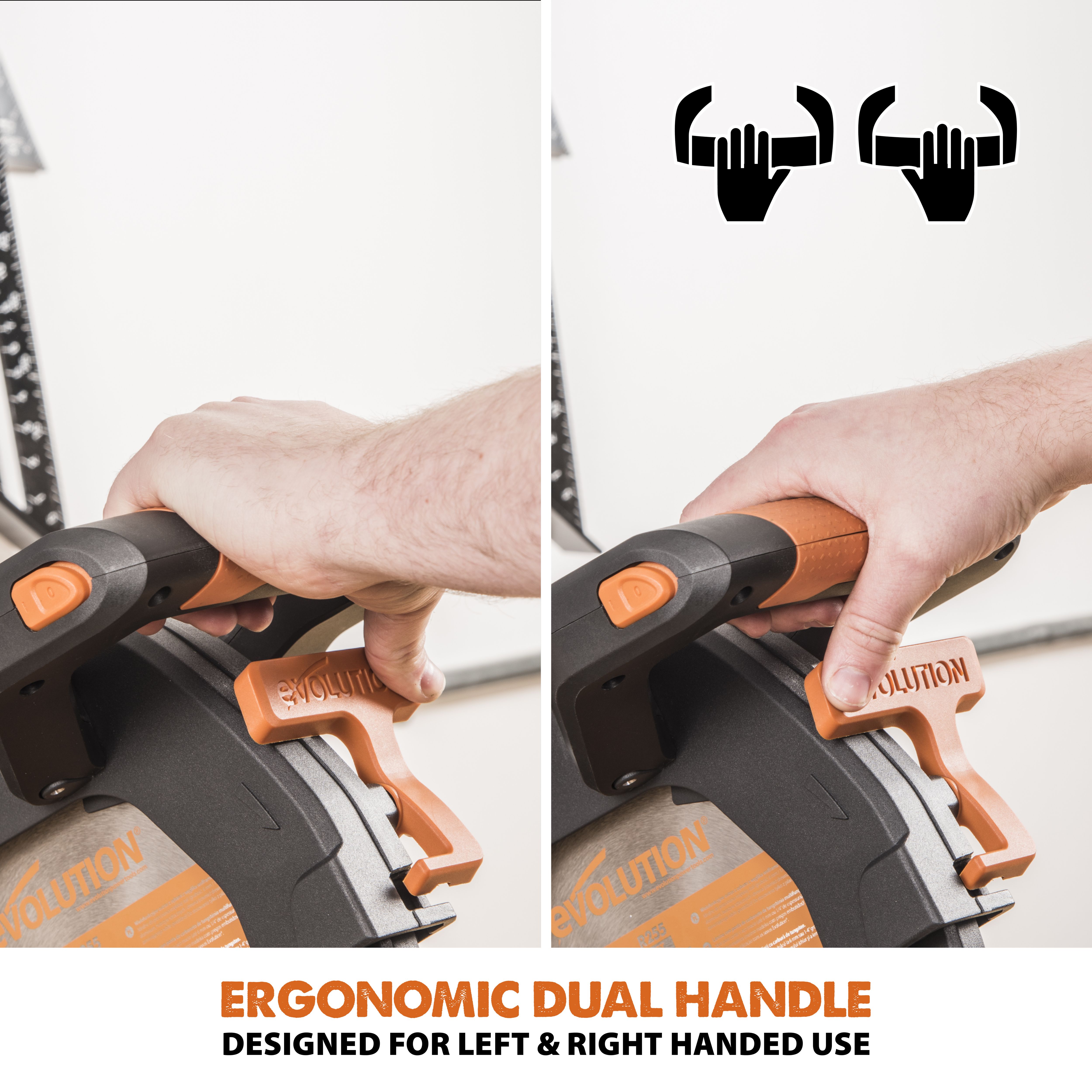

- Features powerful 2000W motor and ergonomic over-moulded, in-line handle. On-board tool storage for convenient storage of the blade change hex key

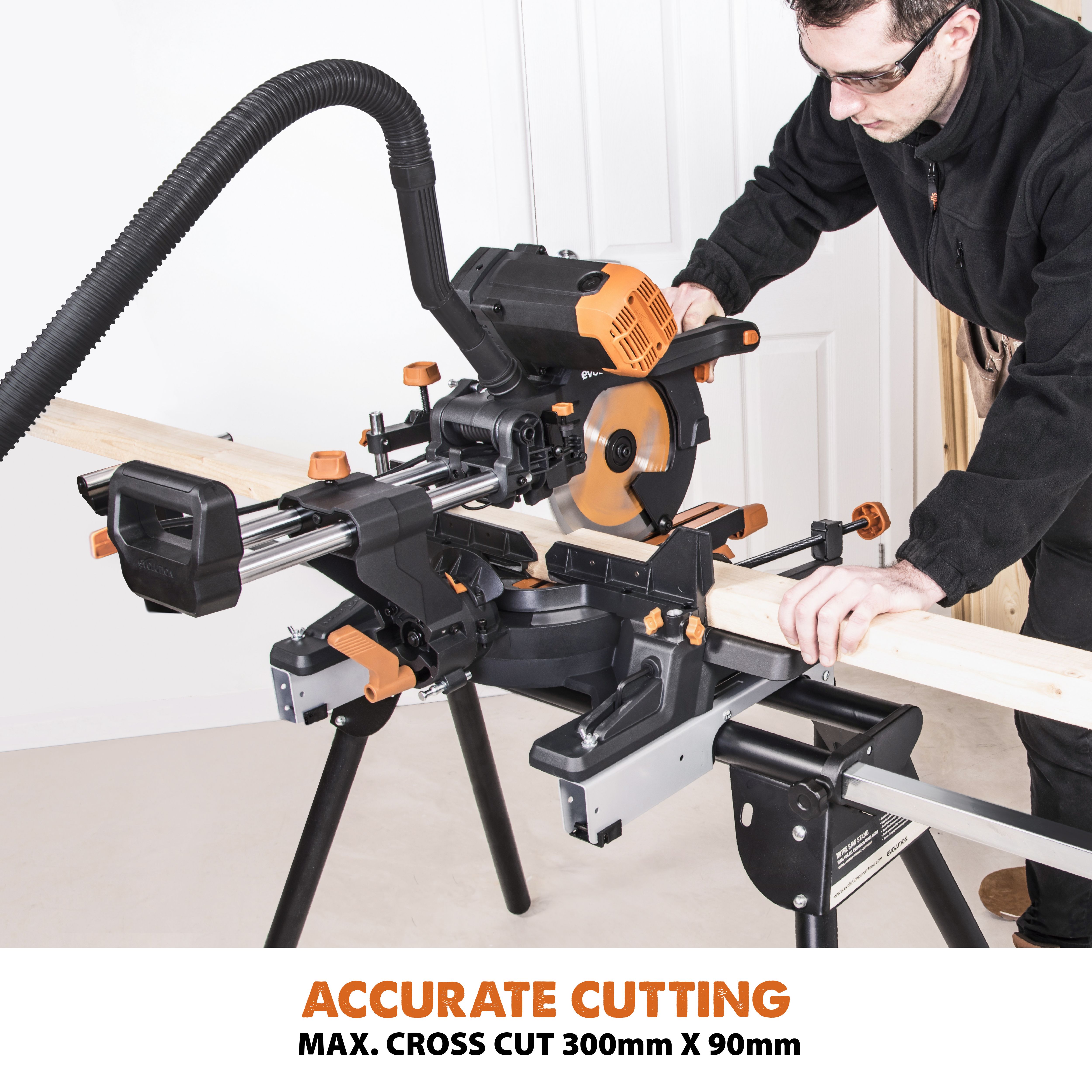

- Bevels to 45° in both directions and offers a maximum cross cut of 300 x 90mm both ways
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information
Product information
The R255SMS-DB+ is Evolution’s most powerful and capable mitre saw, boasting a massive 300 x 90mm crosscut capacity—perfect for slicing through floor joists in a single pass. Built on a durable die-cast aluminium base, it features ergonomic single-handed operation, onboard tool storage, and workpiece clamps. Designed for professionals, the R255SMS-DB+ delivers unbeatable performance and versatility.
- Guarantee - 3 years
- Comes with 28T multi-material blade, table extensions, double ended hex key (M6 & M4), guide/clamp, self tapping cap screw, 4x M6x16mm socket headed screws, 2x M5x12mm socket headed screws, laser lens cap, dust port adaptor, dust collection bag, quick release hold down clamp & instruction manual
- Includes Integrated carry handle
- Includes plug
Features and benefits
- Provides clean and precise cuts no matter the material with multi-material technology
- Features powerful 2000W motor and ergonomic over-moulded, in-line handle. On-board tool storage for convenient storage of the blade change hex key
- Bevels to 45° in both directions and offers a maximum cross cut of 300 x 90mm both ways
- 28-Tooth Multi-Material TCT Blade Included

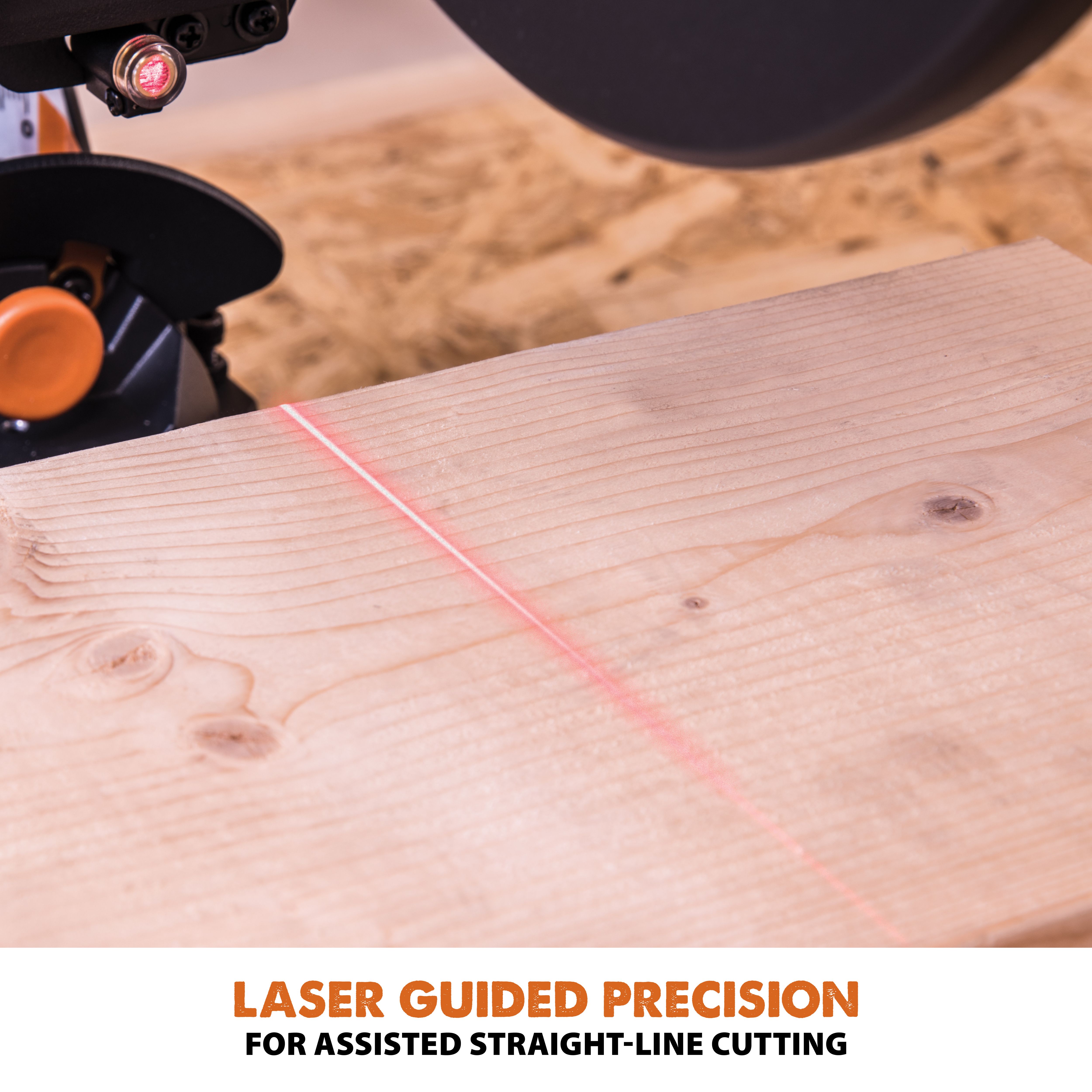

- Accurate cutting with laser guidance, smooth sliding functionality
- Adjustable depth of cut and positive mitre stops

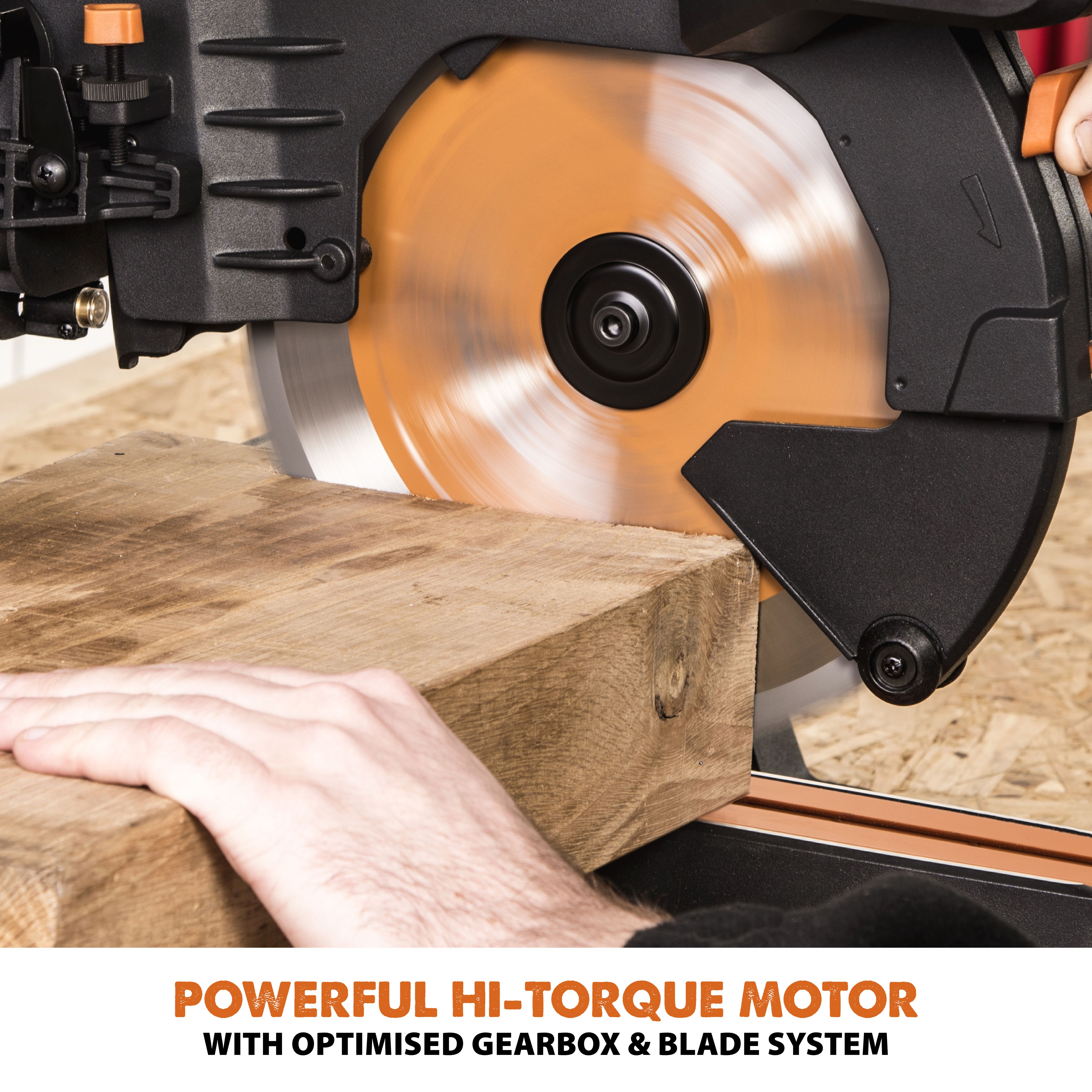

- Powerful 2000W hi-torque motor with optimised gearbox and blade system

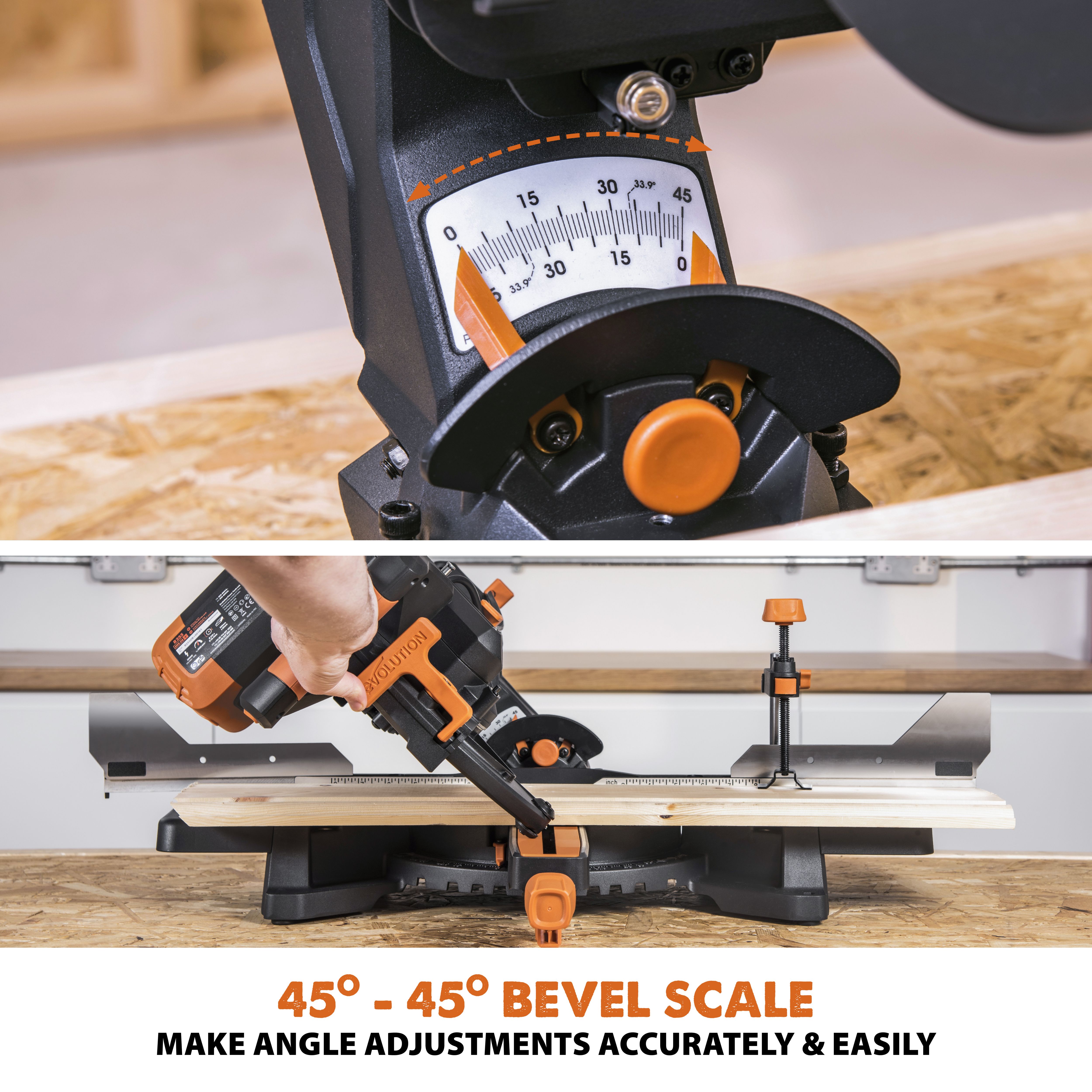

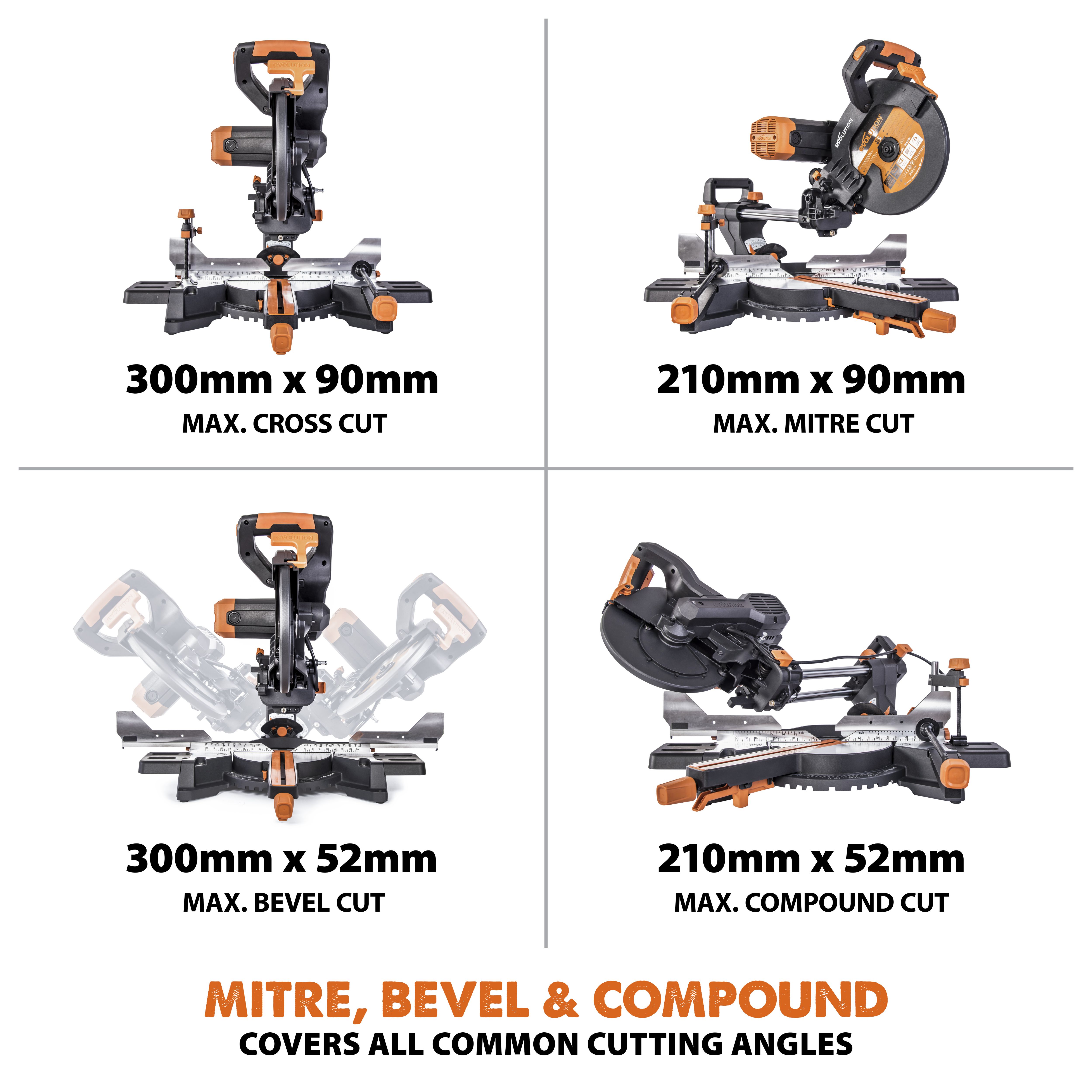

- 0° - 45° bevel tilt and 50˚ - 50˚ mitre covers all common cutting angles accurately & easily
- Reliable, smooth square cutting every time in a variety of materials
- Integrated carry handles - easy to carry and transport around the workplace.
Specifications
| Blade change method | With tool |
|---|---|
| Brake type | Electronic |
| Brand | Evolution |
| Compatible blade diameter | 255mm |
| Depth (cm) | 59cm |
| Disc bore size (mm) | 25.4mm |

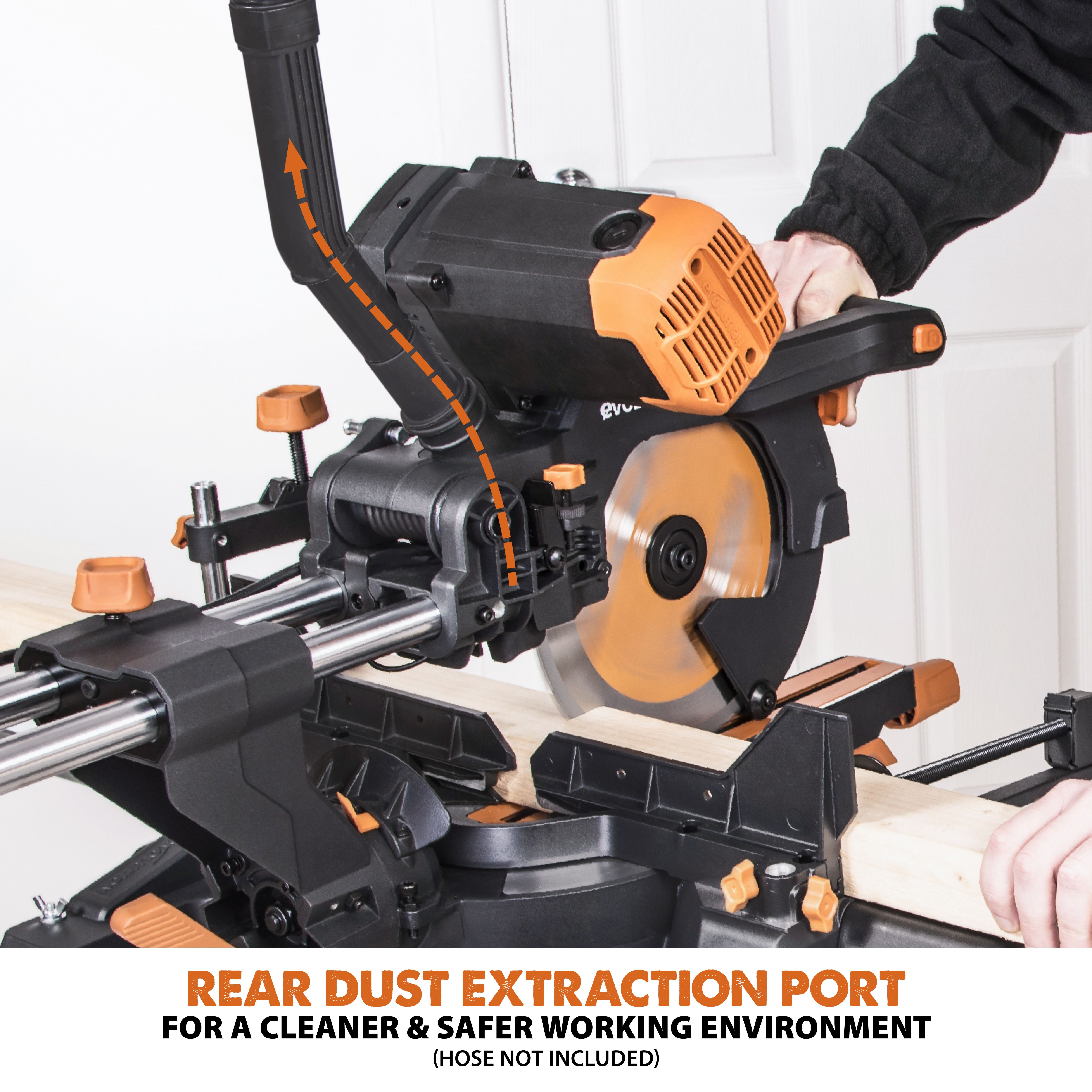

| Dust extraction type | Dust bag & extraction facility |
| Guide type | Laser line |
| Height (cm) | 38.5cm |
| Maximum bevel left | 45° |
| Maximum bevel right | 45° |
| Maximum mitre left | 50° |
| Maximum mitre right | 50° |
| Mitre stop angles | 0, 15, 22.5, 30 and 45 |
| Model name/number | R255SMS+ |
| Motor type | Brushed |
| No load speed | 2600rpm |
| Number of teeth | 28 |
| Pack quantity | 1 |
| Soft start | Soft start |
| Spindle lock | Spindle lock |
| Wattage | 2000W |
| Weight (kg) | 18.24kg |
| Width (cm) | 59.5cm |
| Product code | 0849713081117 |
Safety Information
WARNING: Do not operate this machine if warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for replacement labels.
WARNING: This product is a Multi-material sliding mitre saw and has been designed to be used with genuine Evolution blades rated for this machine. Only use blades designed for use in this machine and/or those recommended specifically by Evolution Power Tools Ltd.
WARNING: This product is a Multi-material sliding mitre saw and must only be used as such. It must not be modified in any way, or used to power any other equipment or drive any other accessories other than those mentioned in this Instruction Manual. (1.13) WARNING: This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the safe use of the product by a person responsible for their safety and who is competent in its safe use.
WARNING: For your protection if this tool is to be used outdoors it should not be exposed to rain, or used in damp locations. Do not place the tool on damp surfaces. Use a clean, dry workbench if available. For added protection use a residual current device (R.C.D.) that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms. Always check the operation of the residual current device (R.C.D.) before using the machine. If an extension cable is required it must be a suitable type for use outdoors and so labelled. The manufacturers instructions should be followed when using an extension cable.
WARNING: When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. WARNING: Read all safety warnings and instructions before attempting to operate this product and save these instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: If you suspect that paint on surfaces in your home contains lead seek professional advice. Lead based paints should only be removed by a professional and you should not attempt to remove it yourself.
WARNING: Some wood and wood type products, especially MDF (Medium Density Fibreboard), can produce dust that may be hazardous to your health. We recommend the use of an approved face mask with replaceable filters when using this machine, in addition to using the dust extraction facility.
WARNING: Rotating saw blades are extremely dangerous and can cause serious injury and amputation. Always keep fingers and hands at least 150mm (6”) away from the blade at all times. Never attempt to retrieve sawn material until the cutting head is in the raised position, the guard is fully closed and the saw blade has stopped rotating. Only use saw blades that are recommended by the manufacturer and as detailed in this manual and that comply with the requirements of EN 847-1.
WARNING: The operation of any mitre saw can result in foreign objects being thrown towards your eyes, which could result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shield or a full face shield when needed. WARNING: If any parts are missing, do not operate your mitre saw until the missing parts are replaced. Failure to follow this rule could result in serious personal injury.
WARNING: When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following.
Manufacturer / EU responsible person
Manufacturer
Evolution Power Tools LTD
Address
61 Avenue Lafontaine
Carbon-Blanc
Bordeaux
33560
France
Contact
Reviews
4.82 / 5(70 reviews)RitaL - 5 / 5 - 22/05/2026
Smaller wood use
Sometimes I need to make picture frames which needs a more delicate cut. The two blades mentioned above can be a little course for delicate jobs. If you do have some very refined blades - please let me know.
JohnL - 4 / 5 - 07/05/2026
Great but a couple of design niggles
I have also bought the xl saw bench to go with my new saw. There are hexagonal holes in the saw base feet to capture the nuts that hold it to the base plate from the saw stand but the bolts that come with the saw stand dont turn due to the square shaft therefore you finish up using washers to hold it above the fixing holes and tighten the nuts. It would be better if the two parts fitted together more seamlessly / ergonomically. I like everything about the saw operation except that it doesnt capture much sawdust even when connected to my Henry hoover. There was a screw missing from the box but Evolution sorted that out next day no problem.
PeterV - 5 / 5 - 05/05/2026
Excellent
Another Awesome Evolution Tool added to me ever grow collection of your power tools. The saw is exactly what I expected and does exactly what I mlneeded it to do. This new saw had just replaced my 15yr old 110v Evolution saw that has never let me down in any way shape or form. Let's hope this new saw lasts as long without any issues, which im very sure it will do. Thanks again Evolution for supplying affordable excellent equipment to us DIY and Professional wood workers.
JamesM - 4 / 5 - 15/03/2026
R255smsdb mitre saw.
Bought this saw to replace an old one. It’s very good indeed. V clean accurate cuts and very stable on the stand. Shame evolution have scrimped a little on build quality and features as it is the corded equivalent of the 36v cordless saw. The end plates on the cutting deck are plastic, alloy would have been nice. No zero rip plastic cutting plate included either which was a shame but otherwise an excellent saw.
Jeff 59 - 5 / 5 - 19/01/2026
Great upgrades on my old machine
I needed to replace my compound mitre saw following at least 15 years of use of my last trusty machine. The new machine has lots of improvements over the old one and I quickly got into using it. In putting it together I found the link and flow between the words and the images a bit slow. Looking forward to many years of use.
GarryK - 5 / 5 - 11/12/2025
Excellent
Excellent mitre saw, great functionality and value for money
AlfonsoT - 5 / 5 - 17/11/2025
Mitre Saw.
Very professional quality product, accurate straight out of the box. Very interested to see how it performs and how the dust bag performs.
DavidE - 5 / 5 - 15/06/2025
I just used it for the first time to cut some huge sleepers in half (2.4M x 200mm x 100mm). It was like cutting through air, just wonderful.
AndrewB - 5 / 5 - 02/06/2024
This is an excellent saw. No need to fine-tune the laser setting on artival. Has the grunt to make the cuts which my previous cordless one could not.
DarrenV - 4 / 5 - 18/05/2024
My opinion is they are a well priced reliable well made tool with good features that make things easier and would recommend them to anyone professional or diyer
