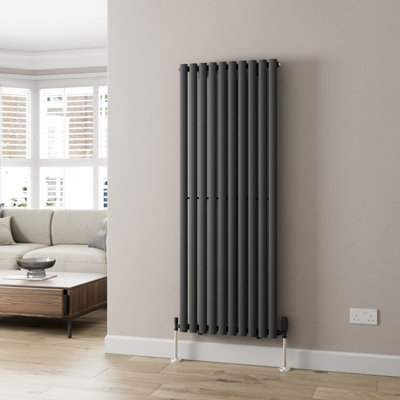

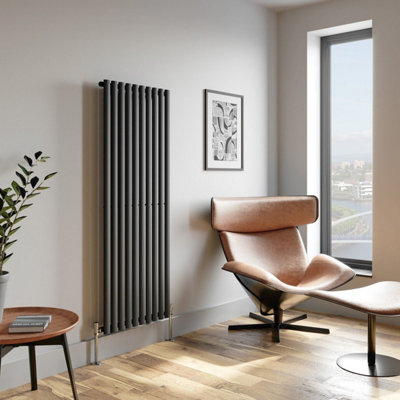

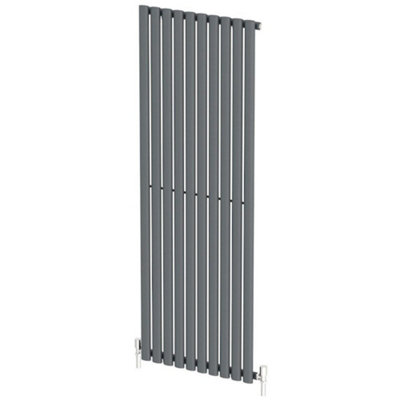

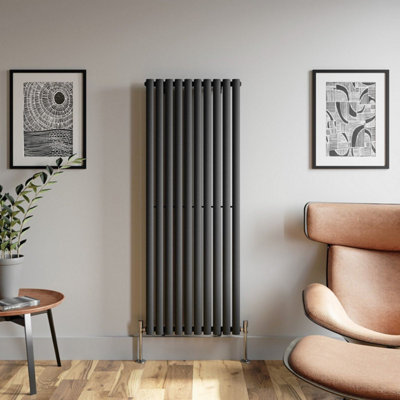

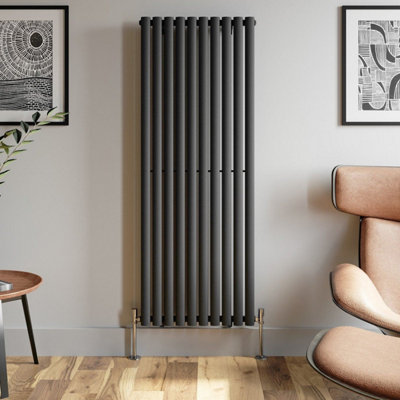

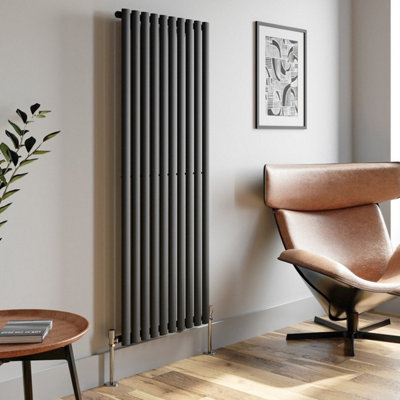

RadiLux Anthracite Designer Radiator Vertical Oval Column Single Panel Rad 1600x600mm
Product details
Product information
Key Features: - Single oval panel design ideal for compact spaces like hallways or entrances. - Vertically hung for a sleek, modern profile. - Stylish anthracite finish offers a contemporary alternative to white radiators. - Crafted from premium mild steel for superior heat conduction and durability. - Fully compatible with most domestic heating systems with standard 1/2 inch inlet/outlet. - Easy installation with included wall fixings and brackets. - Backed by a robust 10-year guarantee. - Meets BS EN 442 safety standards. This designer radiator blends modern aesthetics with practical performance. Its singular oval panel design is perfect for areas with limited space, while its vertical mounting delivers a refined, unobtrusive look. The anthracite finish adds a unique touch that enhances any interior, and the high-quality mild steel construction ensures efficient heat output and long-lasting durability. Complete with all necessary fixings and brackets, this radiator is simple to install, making it an excellent choice for both new builds and renovations. Enjoy reliable warmth and peace of mind thanks to its quality construction and adherence to strict safety standards. Technical Specifications: - Dimensions: 1600mm height, 600mm width, 55mm depth; 83mm wall projection (including brackets). - Heat Output: 3391 BTU (Delta 50) / 994W (Delta 50); 1762 BTU (Delta 30) / 516W (Delta 30); 1391W (Delta 65). - Operating Conditions: Maximum working pressure 6 bars, maximum working temperature 95°. - Build: Weight 18.08kg, 10 tubes. - Plumbing: Pipe centres 600 mm (allowance of 5 mm), wall-to-centre tapping 51mm, inlet connection G1/2 inches. - Finishing: RAL Code 7016; designed for hot water installations.
- Non-adjustable
- Fittings & fixings included
- Comes with- Radiator & Fittings
- Guarantee - 15 years
Features and benefits
- High-quality designer radiator with a stunning anthracite finish.
- Compact size of 1600 x 600mm, ideal for various spaces.
- Constructed from low-carbon steel for durability.

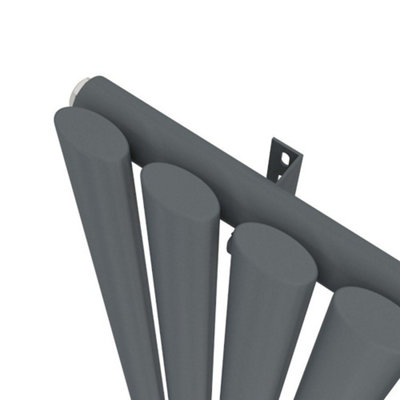

- Single panel design with an elegant oval tube shape.
- Scratch- and rust-resistant for long-lasting use.
- Compatible with all tank-fed and combination heating systems.
- Comes with a fantastic FREE 15 Year Guarantee.
Specifications
| BTU | 3391BTU |
|---|---|
| Coating | Powder-coated |
| Colour | Grey |
| Finish | Matt |
| Fitting type | Wall-mounted |
| Heat output | 994W |
| Inlet position | Bottom |
| Material | Mild steel |
| Maximum operating pressure | 6bar |
| Maximum operating temperature | 95°C |
| Model name/number | RadiLux |
| Number of columns | 10 |
| Outlet position | Bottom |

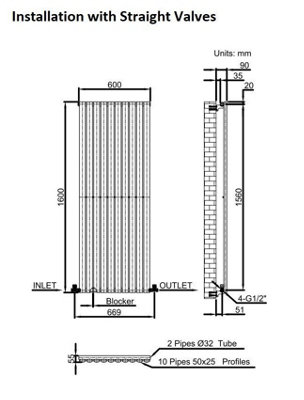

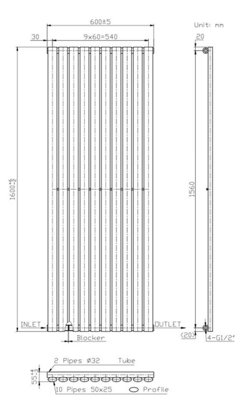

| Product depth | 55mm |
| Product height | 1600mm |
| Product weight | 18.08kg |
| Product width | 600mm |
| Projection from the wall | 83mm |
| Radiator type | Designer |
| Thermostatic control | No thermostat control |
| Orientation | Vertical |
| Product code | 5056806140704 |
