RadiLux Designer Radiator Horizontal White Flat Panel Rads Double Panel 600x912mm
Product details
Product information
Key Features: - Double panel design with flat panels for a modern aesthetic and increased heat output - Horizontally hung for easy installation and retrofitting on a solid wall - Classic white finish that complements minimalist and contemporary decor - Constructed from premium mild steel for excellent thermal conduction and long-lasting durability - Compatible with most domestic central heating systems using standard 1/2 inch inlet and outlet connections - Fixings and brackets supplied for simple wall mounting installation - Backed by a 10-year guarantee and meets BS EN 442 safety standards These designer radiators combine style with performance, making a striking statement in any room while ensuring efficient heating. Their dual-panel design offers increased surface area for superior heat distribution, and the horizontal arrangement promotes straightforward installation. Finished in a timeless white, these radiators blend effortlessly with modern interior design. The package includes all necessary mounting fixings and brackets, so you can commence installation immediately upon delivery. Built using premium mild steel, they provide robust performance and enhanced energy efficiency, making them a durable heating solution for your home. Technical Specifications: - Height: 600mm - Width: 910mm - Projection from wall (including brackets): 83mm - BTU Output (Delta 50): 3933 BTU; Watts Output (Delta 50): 1153W - BTU Output (Delta t60): 4153 BTU - Pipe Centres: 912mm (approximately plus/minus 5mm) - Tube Quantity: 24 - Depth: 66mm - Maximum working pressure: 4 bars - Maximum working temperature: 95° - RAL Colour Code: 9016 - Installation Type: Hot Water - Inlet Connection: G1/2 inches - Wall to Centre Tapping: 50mm - BTU Output (Delta 30): 2044 BTU; Watts Output (Delta 30): 599W; Watts (Delta 65): 1614W
- Non-adjustable
- Fittings & fixings included
- Comes with- Radiator & Fittings
- Guarantee - 15 years
Features and benefits
- High-quality designer radiator with a stunning white finish

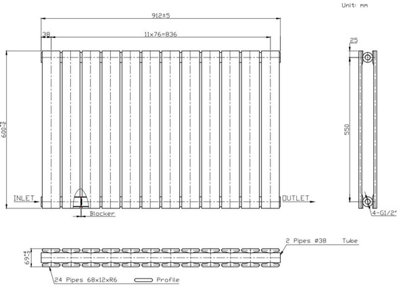

- Dimensions: 600 x 912mm
- Double flat panel design for efficient heating
- Manufactured from low-carbon steel, ensuring durability
- Scratch- and rust-resistant for long-lasting performance
- Suitable for all tank-fed and combination heating systems
- Comes with a fantastic FREE 15 Year Guarantee
- Radiator valves available for purchase separately
Specifications
| BTU | 3933BTU |
|---|---|
| Coating | Powder-coated |
| Colour | White |
| Finish | Gloss |
| Fitting type | Wall-mounted |
| Heat output | 1153W |
| Inlet position | Bottom |
| Material | Mild steel |
| Maximum operating pressure | 4bar |
| Maximum operating temperature | 95°C |
| Model name/number | RadiLux |
| Number of columns | 24 |
| Outlet position | Bottom |
| Product depth | 66mm |
| Product height | 600mm |
| Product weight | 26.26kg |
| Product width | 912mm |
| Projection from the wall | 83mm |
| Radiator type | Designer |
| Thermostatic control | Without thermostat |
| Orientation | Horizontal |
| Product code | 5056806141312 |
