RadiLux Designer Radiator Horizontal White Oval Column Rads Single Panel 600x1200mm
Product details
Product information
Key Features: - Modern single oval panel design optimised for compact spaces such as hallways and entrances. - Horizontally hung for seamless retrofitting into existing structures. - Elegant white finish that complements minimalist interiors. - Constructed from premium mild steel for superior thermal conduction and durability. - Compatible with most domestic central heating systems via standard 1/2 inch inlet and outlet connections. - Installation kit with all fixings and brackets included for a quick mount. - Backed by a 10-year guarantee and compliant with BS EN 442 safety standards. These designer radiators merge style and functionality to enhance any room while providing efficient heating. The single panel design is perfect for areas where a low-profile approach is needed, such as hallways and entrances, delivering effective warmth without excessive projection. Installed horizontally, they offer a modern replacement for outdated systems and blend seamlessly with contemporary décor thanks to their sophisticated white finish. Made with premium mild steel, these radiators ensure long-lasting performance and excellent thermal conductivity to keep your home cosy. The package includes all necessary brackets and fixings, making installation straightforward once your heating system is ready. Please note that RadiLux radiators are not suitable for single pipe systems. Technical Specifications: - Dimensions: Height 600 mm, Width 1200 mm, Depth 55 mm; Projection (with brackets): 83 mm - Heat Output: BTU Output (Delta 50) 2789, Watts Output (Delta 50) 817, Watts Output (Delta 65) 1144, BTU Output (Delta 30) 1448, Watts Output (Delta 30) 425 - Pipe Centres: 1200 mm with a tolerance of 0.5 per cent; Wall to Centre Tapping: 51 mm - Weight: 15.46 kg; Tube Quantity: 20 - Maximum working pressure: 6 bars; Maximum working temperature: 95° - RAL Colour Code: 9016; Inlet Connection: G1/2 inches; Installation Type: Hot Water
- Non-adjustable
- Fittings & fixings included
- Comes with- Radiator & Fittings
- Guarantee - 15 years
Features and benefits
- High-quality designer radiator with a stunning white finish.

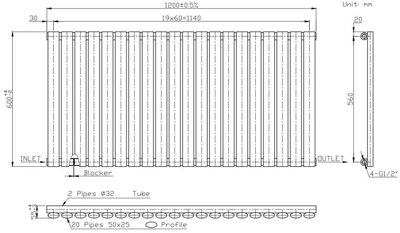

- Dimensions: 600 x 1200mm.

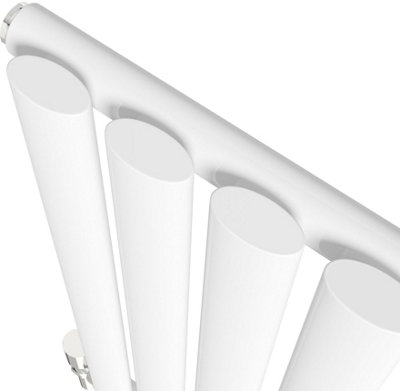

- Single panel construction utilizing oval tubes.
- Made from low-carbon steel for durability.
- Scratch- and rust-resistant surface.
- Compatible with all tank-fed and combination heating systems.
- Includes a fantastic FREE 15-year guarantee.
- Radiator valves sold separately.
Specifications
| BTU | 2789BTU |
|---|---|
| Coating | Powder-coated |
| Colour | White |
| Finish | Gloss |
| Fitting type | Wall-mounted |
| Heat output | 817W |
| Inlet position | Bottom |
| Material | Mild steel |
| Maximum operating pressure | 6bar |
| Maximum operating temperature | 95°C |
| Model name/number | RadiLux |
| Number of columns | 20 |
| Outlet position | Bottom |
| Product depth | 55mm |
| Product height | 600mm |
| Product weight | 15.46kg |
| Product width | 1200mm |
| Projection from the wall | 83mm |
| Radiator type | Designer |
| Thermostatic control | No thermostat control |
| Orientation | Horizontal |
| Product code | 5056806139616 |
