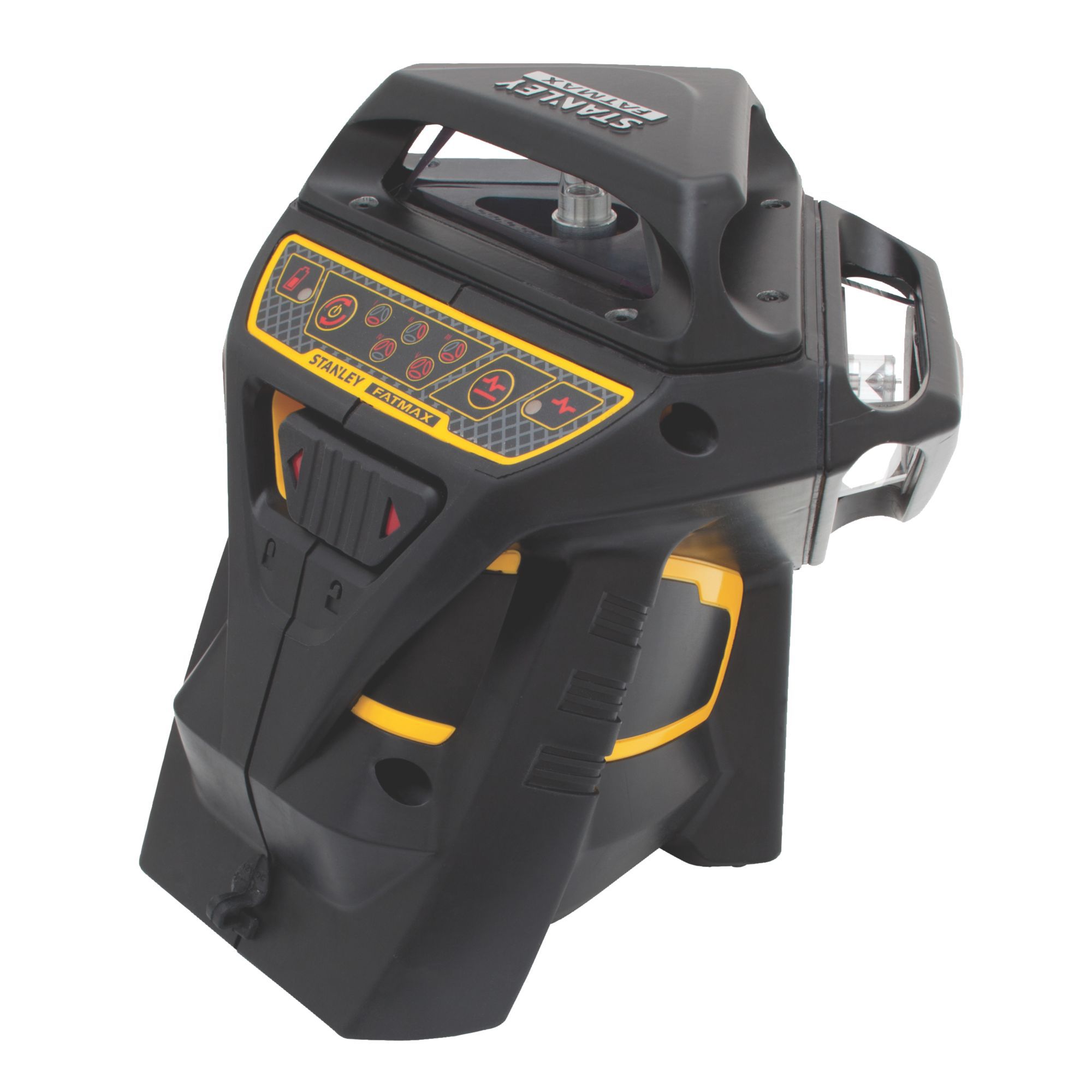

Stanley FatMax 360º X3R 20m Self-levelling Laser level
Right chevron

Stanley FatMax 360º X3R 20m Self-levelling Laser level

Checking availability...
Checking availability...

Product details

Product information

A superb layout laser with a rugged over-moulded body and a pendulum lock for transport. Easy to use and accurate. The 3 full 360° lasers work to give 6 cross lines, covering all levelling needs. Features a forward-facing cross line, 90°, 180° and 270°. Giving 90° reference points perfect for studding, building, tiling, suspended ceilings and all layout tasks in between. The other 2 cross lines are above and below and form a plumb bob.

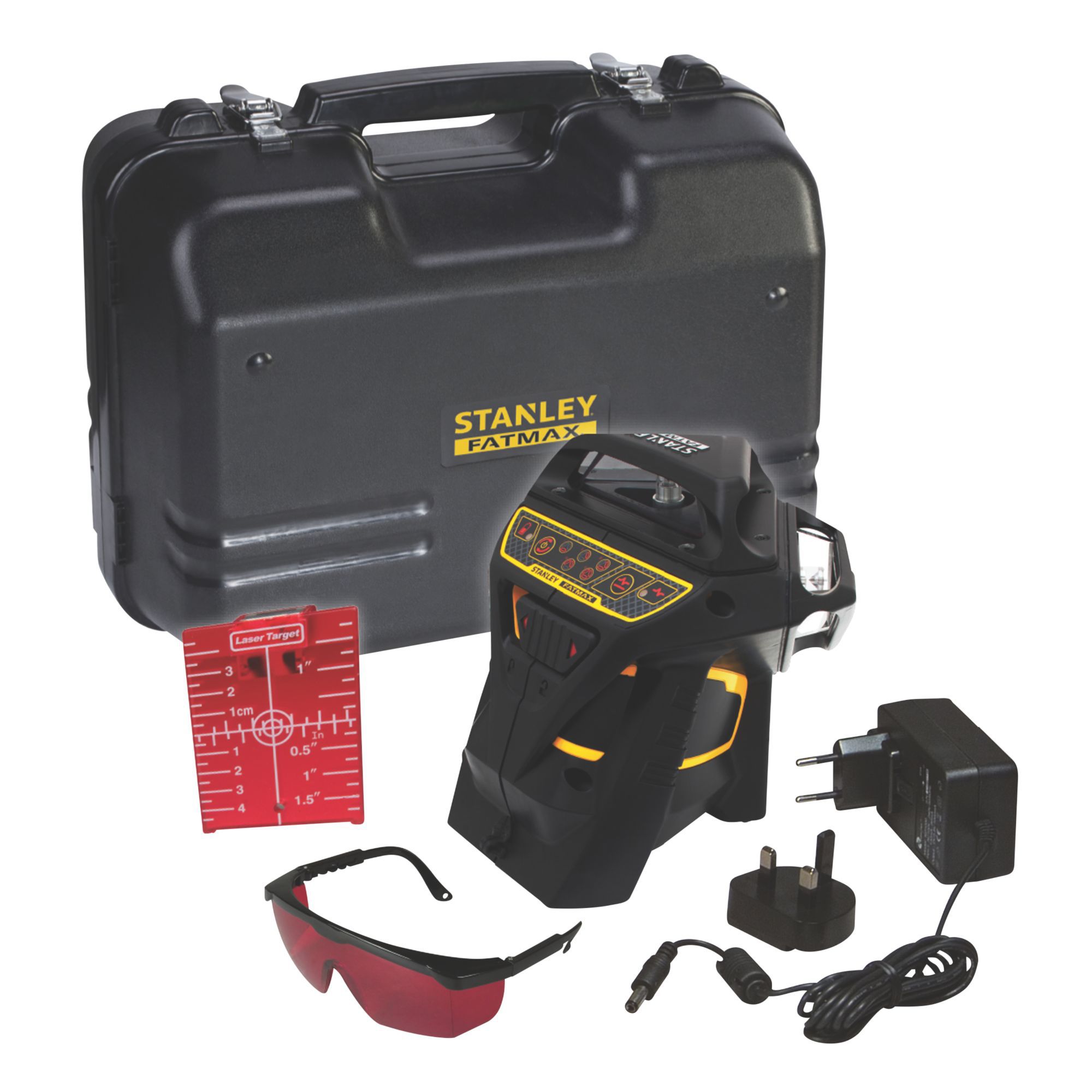

  • Includes - X3R laser, charger cable, target card, glasses and carry case.
  • Laser Class 2

Features and benefits

  • 3 x 360° Lasers
  • Rechargable Battery
  • IP54 Resistance
  • 0-20m Range
  • Accurate to ±0.3mm/m


Battery technologyLithium ion (Li-ion)
Carrying facilityCarry case
Colour groupBlack
IP ratingIP54
LocationIndoor & outdoor
Measuring accuracy0.3mm
Model name/numberX3R
Operating range20m
Power sourceBattery-powered
Product depth145mm
Product height140mm
Product weight1060g
Product width145mm
Product code3253561773570
