Whitesales, em.glaze Economy Flat Glass Rooflight & Timber Sloping Upstand S8 900mm x 900mm (3-5 day UK wide delivery)
Product details
Product information
With a clean, minimalistic finish both inside and out, em.glaze Economy offers a stylish solution for a wide range of building projects and budgets. Available in 11 sizes, em.glaze Economy is designed to flood your home with natural light all year round.
- Ready assembled
- CWCT Class 3, self-cleaning glass. Laminated inner pane and toughened outer pane. Glazing: Double-glazed as standard Standard double-glazed glass specification: 6mm Clear toughened outer 16mm Argon filled warm edge spacer silicone bonded 8.8mm laminated inner pane with PVB interlayer (11.5mm on larger units)
- Guarantee - 10 years
- Ready assembled
- See the Operation & Maintenance Guide
- Unvented
Features and benefits

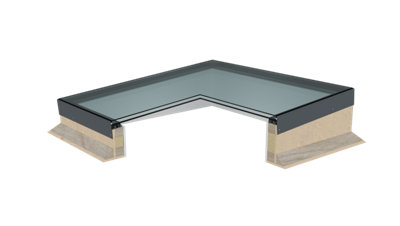

Available in a wide range of sizes, the em.glaze Economy rooflight is an entry level, thermally broken aluminium rooflight that is fully compliant with Building Regulations and has excellent sound insulation and thermal properties. Manufactured with flat sealed glass units, em.glaze Economy comes with Class 3 glazing and is available in popular RAL 7016 anthracite grey. It is recommended that this rooflight is installed on roof pitch of 5-20 degrees. The Timber Sloping Upstand ensures that em.glaze Economy is fully compliant. It is constructed from thick CLS timber sandwiched together with Rockwool insulation and marine grade plywood with a fire rated plasterboard lining. This upstand is supplied pre-assembled making it quick and easy to install. Please refer to the drawing for additional sizing guidance.
- 11 sizes available from stock for delivery in 3-5 working days.
- Sleek and minimal with flush glazed glass-to-edge design for more transmissible daylight.
- Highly energy-efficient rooflight with low U-value of 1.3 W/m2K for a warmer home.
- Part L and Part B Building Regulations compliant rooflight and timber sloping kerb. When combined, these products exceed regulations and make installation quick and hassle-free.
- Self-cleaning glass for easy maintenance.
- Factory pre-glazed rooflight for easy installation.
- Pre-assembled timber sloping kerb - ready for waterproofing and internal decorating.
- This product will fit a roof opening of 900 x 900mm. Please refer to the drawing for more information.
Specifications
| Brand | em.glaze |
|---|---|
| Colour group | Grey |
| Finish | Matt |
| Fixed/opening windows | Fixed windows |
| Glass finish | Clear |
| Glazed | Fully glazed |
| Glazing thickness | 30.8mm |
| Frame material | Aluminium |
| Material | Aluminium, glass & rubber |
| Model name/number | AJS11D115TA1AB |
| Number of panes | 1 |
| Operation | Fixed |
| Pack quantity | 1 |
| Product height | 1140mm |
| Product thickness | 292mm |
| Product weight | 62kg |
| Product width | 1140mm |
| Standard | Airtight BS6375-1:2015 and BS EN 12207 Wind loads BS 6375- 1:2015 and BS EN 12210 Water Tightness EN 1873 Impact Resistance CWCT |
| U-value (thermal insulation) | 1.3W/m²K |
| Window opening type | Manual |
| Glazing type | Double glazed |
| Product code | 5056787400132 |
