What is a close-coupled toilet?
A close-coupled toilet is a popular choice for many homes due to its sleek, compact nature. In this guide, you’ll find what defines the close-coupled design, where it works best, and how it compares with other toilet types.
Key features of a close-coupled toilet
A close-coupled toilet joins the cistern directly to the pan, forming one compact unit. This neat profile saves space and hides awkward pipe runs. Plus, the minimalist, versatile design makes it a great choice for any bathroom style.
Many of these toilets use glazed ceramic or porcelain that wipes clean and resists stains. Some pans have a rimless shape that guides water around the bowl and reduces surfaces for germs. Plus, the tight junction between the cistern and the pan leaves fewer gaps to trap dust.
These popular toilet models are typically easy to install and widely available. As a result, they’re a convenient option for any home.
How does a close-coupled toilet work?
When you flush a close-coupled toilet, a valve opens inside the cistern. This causes water to flow into the bowl, pushing waste through the trap. The trap holds a small amount of water that creates a seal, which stops smells from coming back up the soil pipe.
There are two main types of flush in a close-coupled toilet system:
- Dual flush buttons control the volume for liquid or solid waste.
- Single flush levers send a full volume every time.
Modern fill valves control how the cistern refills and help reduce noise after you flush. Some rimless pans use shaped channels to guide water around the bowl for a more thorough rinse.
The close-coupled layout also keeps the cistern and pan sitting tightly together. This compact setup is what shortens connections and reduces exposed pipework. At the same time, fittings stay easy to reach behind the button plate and at the base of the pan.
What is a non-close-coupled toilet? Understanding the difference

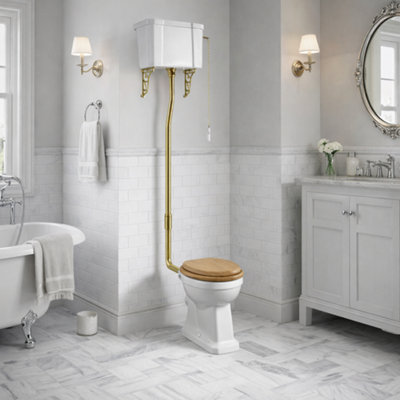

A non-close-coupled toilet is a system with a separate cistern and pan linked by a flush pipe. You’ll see them fitted in low-level, high-level, back-to-wall, and wall-hung layouts. Below, we compare these with a close-coupled toilet, where the cistern sits on the pan.
Look and style
High-level and low-level toilets have a classic aesthetic. Back-to-wall and wall-hung toilets hide the cistern for sharper lines. A close-coupled toilet has one neat unit with fewer joints, so it suits most schemes.
Space and installation
Non-close-coupled toilets need space for a pipe, a frame, or a unit, so fitters have to plan service access before they start fixing anything in place. In tighter rooms, this design can slow work and add labour. A close-coupled toilet is usually quicker to fit, as the cistern sits on top of the pan.
Flushing and water use
Hidden cisterns often use dual-flush plates to save water. Close-coupled toilets offer the same control with easy-to-use buttons on the lid. Modern valves in both types also manage the refill and help cut noise.
Cleaning and upkeep
High and low level toilets have more surfaces to clean. Their exposed pipework can attract dust and requires more regular cleaning. Close-coupled toilets have fewer gaps for grime to accumulate.
Close-coupled toilet styles

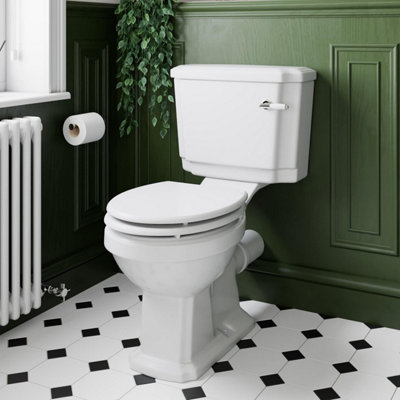

Traditional close-coupled
Classic styles that are great for traditional bathrooms.

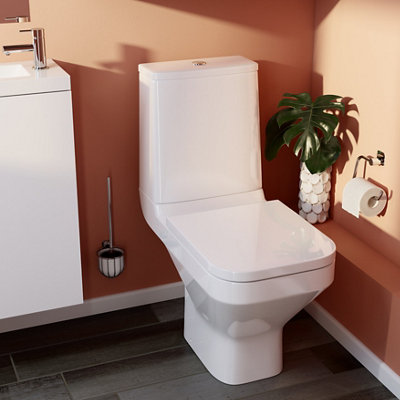

Contemporary close-coupled
Slim cistern and square edges create a modern look.
Open back close-coupled
A rear gap allows for quick pipe checks but can allow dust to accumulate.
Back-to-wall close-coupled
The pan sits tight against the wall, hiding the pipework. That neat line reduces dust traps. Plan waste alignment and future access before fixing.
Short projection close-coupled
A shorter pan frees floor space in small bathrooms. Test comfort if you’re tall, and confirm the waste position matches.
Comfort height close-coupled
Increased height can make standing easier.
Rimless close-coupled
No inner rim, so water rinses through open channels that make the toilet easier to clean.
Benefits of choosing a close-coupled toilet
Easy to install
Fit the pan, set the cistern, then seal and test. It has clear access points that make checks simple later.
Compact design
One joined unit saves space and keeps lines neat.
Wide range of styles
Rounded or square fronts are available to suit different decor styles. Short projection toilets can save space in smaller bathrooms.
Low maintenance
Fewer gaps means fewer dirt traps. Choosing a seat with quick-release hinges will help you clean around the seat in seconds.
Considerations when buying a close-coupled toilet
It’s crucial to pick a toilet model that fits your room, suits your plumbing, and feels comfortable every day.
Here's a checklist of things to consider when buying a close-coupled toilet:
Size and projection
Measure wall to front, width, and door clearance.
Plumbing match
Check that the toilet will fit within your existing plumbing system.
Flush choice
Choose a dual flush to reduce water use.
Comfort height
The extra height of these toilets is designed to make sitting and standing easier.
Seat and shape
Look out for rounded or square fronts. Short projection helps in tight spaces.
Style match
Try choosing a design that matches your basin and bath for a cohesive look.
Installation overview of close-coupled toilets
Close-coupled toilets are quick to fit because the cistern fixes onto the pan. The compact design cuts parts and keeps everything nicely aligned. You position the pan, secure the fixings, then set the cistern on top. Connect the water, check the flush, and then check for any small leaks.
Although this is a job that can be completed by a competent DIYer, if you need to move any pipework, or you’re not confident drilling into tiles, it may be better to call a professional.
See our how to fit a toilet guide for tips on how to manage your installation with confidence.
Maintenance and cleaning tips for close-coupled toilets
The close-coupled design leaves fewer gaps for dust and grime to collect. However, it’s still important to clean your unit regularly so it stays hygienic and efficient.
Keep your close-coupled toilet fresh with a simple weekly routine:
- Clean the bowl, rim, and under the rim with a soft brush and toilet cleaner.
- Wipe the seat, lid, and hinges with an antibacterial spray and a microfibre cloth.
- Descale stubborn marks around the waterline with a limescale remover.
- Wash the cistern exterior, including the flush button.
- Open the cistern lid monthly to check for limescale on the inlet and flush parts.
- Inspect silicone around the pan and the waste outlet and reseal any gaps if required.
- Check the supply hose and isolation valve for damp patches that hint at a slow leak.
- Ventilate the room during cleaning, wear protective clothing, and never mix products.
For step-by-step cleaning methods and product tips, see our guide on how to clean a toilet.
What is a close-coupled toilet? FAQs
What are the three main types of toilets?
The three most common toilet types are: close-coupled, back-to-wall and wall-hung. A close-coupled toilet has the cistern sitting on the pan. Back-to-wall toilets hide the cistern in a unit or wall. A wall-hung toilet fixes the pan to a frame to keep the floor clear.
Which type of toilet is easier to clean?
Rimless toilets are often considered easier to clean because the flush reaches every edge of the pan. However, any toilet can stay hygienic with the right maintenance.
