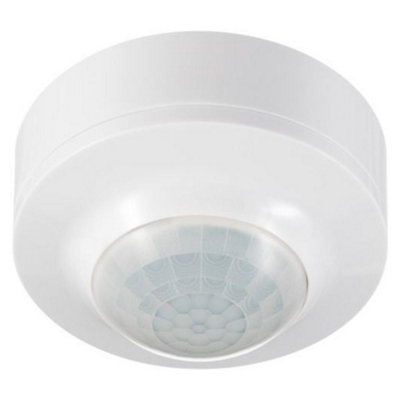

Timeguard STW360 Suretime 360 Degree Surface Mount PIR Sensor Switch
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£
20.15
Checking availability...
Product details
Product information
PIR Movement Sensor for Automatic Control of Lighting Circuits
- Guarantee - 1 year
- Batteries not required
Features and benefits
- Surface mount application, suited for bathrooms outside of zone 2, corridors and bedrooms alike
- 360° detection angle. Manual override (pulse) for extended light on times. Adjustable lux and time ON settings
- Concealed lux and time controls within PIR (under the lid). Operating Voltage 230V AC 50Hz. Operating Temperature -20°C to +40°C
- Earth Class Class II (no earth required). IP Rating - IP40. Switch Rating 200W LED, 1000W Halogen, 200W LED, fluorescent/low energy lighting
- ON Time Adjustment 3 seconds to 18 minutes. User adjustable. Lux Level Adjustment 10 lux (Moon Symbol) to 1000 lux (sun symbol)
- Detection Range up to 6m. Up to 5 sensors can be connected in parallel on same circuit. Max recommended mounting height 3m
- Dimensions: 90mm diameter x 55mm deep. 84mm fixing centres
Specifications
| Colour | White |
|---|---|
| Number of channels | 1 |
| Width (mm) | 90mm |
| Product code | 5012483014325 |
