10x 2 Way WAGO Connector 32A Electrical Lever Terminal Block Push Fit Junction
Product details
Product information

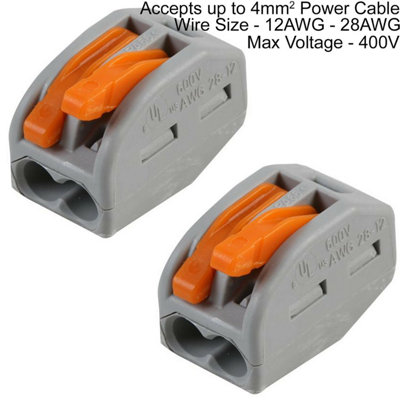

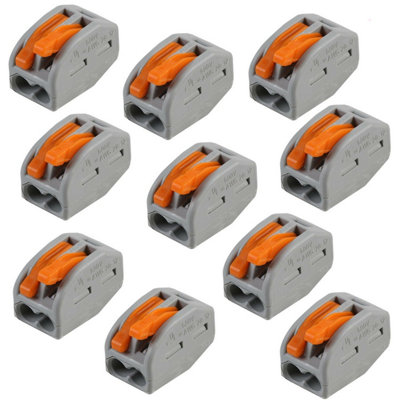

2 Way WAGO (Genuine) Lever Connectors Pack of 10 Overview: WAGO lever connectors are commonly used by electricians for joining power cables together. They ensure a quick, easy and safe installation every time. The connectors accept solid & stranded core wires and can be installed without needing any crimping / specialist tools. To use, simply push in the stripped cable into the connector and close the lever to secure the cable in place. Each block is reusable, simply release the lever and remove the cables from the connector in order to use the block again as many times as you need. Technical Specification: Colour - grey / orange Cable core / conductor size - 0.08mm² - 4mm²Wire Size – 12AWG – 28AWG Voltage rating – 400V max Side entry wiring type Dimensions per block (W x H x D) – 12.4mm x 14.5mm x 20.5mm
- Guarantee - 1 year
Specifications
| Amp rating | 32A |
|---|---|
| Pack quantity | 1 |
| Product diameter | 12.4mm |
| Product height | 14.5mm |
| Product length | 200mm |
| Product weight | 0.05g |
| Product code | 5055538134500 |
