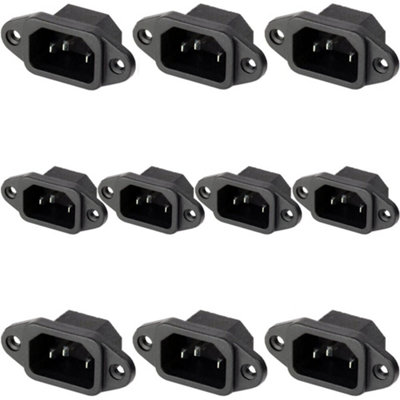

10x IEC C14 Power Socket 10A Screw In PCB Inlet Panel Chassis Mount Connector
Product details
Product information
10x Screw on IEC Socket Power Inlet – Solder Connector PLEASE NOTE – This is for 10 pieces, we also sell them in quantities of 1, please search our shop for more details. Overview – Perfect for replacing / adding any power sockets providing that there is enough room for it to be mounted (dimensions below). It is constructed from high quality materials is very simple to install.Dimensions: Panel cut-out required – 20mm x 27.7mmFrame size – 50mm x 22mmSolder tags – 5.5mm x 4mm x 0.8mmTechnical Specifications: Power/current rating – 10A @ 250V ACDielectric strength – 2000V @ 1 minuteInsulation resistance – 100Mohm @ 500V DCMaterials used – UL94V-0 & Nylon 66 housing Operating temperature range – -25°C to 85°CColour – Black Standards – ROHS Compliant
- Guarantee - 1 year
Specifications
| Product height | 200mm |
|---|---|
| Product length | 200mm |
| Product weight | 0.1g |
| Pack quantity | 1 |
| Product diameter | 20mm |
| Product code | 5055538147234 |
