16A Manual Thermostat - with Floor Sensor
Product details
Product information
This 16A manual thermostat is perfect for electric water heating systems as well as underfloor heating with floor or air sensor.
- Non-programmable
- Suitable for Any room, excluding wet-rooms
- 1 year Guarantee
Features and benefits

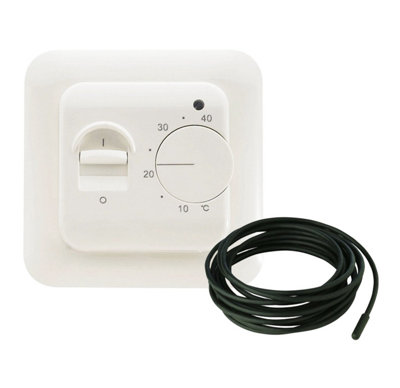

This 16A manual thermostat is perfect for electric water heating systems as well as underfloor heating with floor or air sensor. These thermostats will acquire the room temperature with its air or floor sensor, and the heating contact will close when the room temperature falls below the selected set point. Thermostats are used for the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings and light industrial buildings. Ideal for intermittent use. These thermostats work particularly well in mild weather where heating is often not fully required. Technical Information LED indicator is light when heating is on With manual switch and knob for easy operation On/off control output for heating device Voltage AC 230V Power Consumption 5W Floor Sensor Rubber-thermoplastic NTC sensor included, cable length is 3m Max Switch Rating 16A (3.6KW) but is good practice to restrict load to 10-12A (2-2.4KW) Switching Differential 0.5k Setting Range 4 C – 45 C Ambient Temperature 5 – 50 C Protective Housing IP20 Housing Material Self-extinguishing PC Dimensions 86 x 86mm, will fit into a standard single switch back box 35mm deep. Warranty UKCA Certification with 1 Year
- LED indicator is light when heating is on

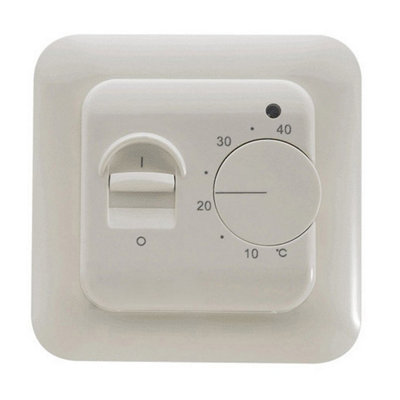

- With manual switch and knob for easy operation
- On/off control output for heating device
Specifications
| Control type | Manual |
|---|---|

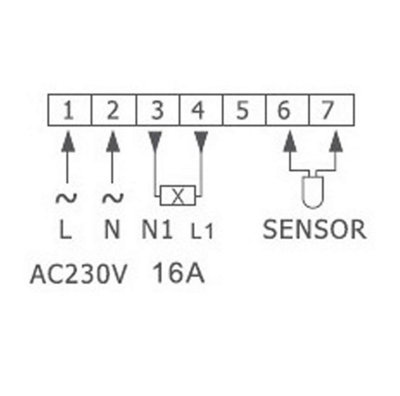

| Installation type | 3-wire |
| Model name/number | 16A Manual |
| Power voltage supply | 240V |

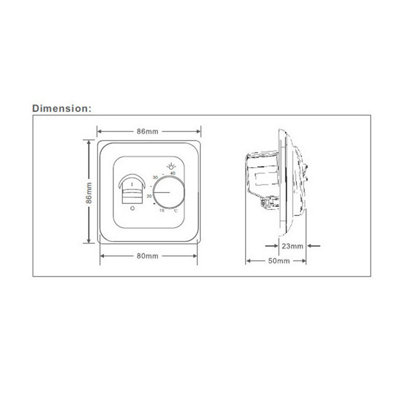

| Product depth | 35mm |
| Product height | 86mm |
| Product width | 86mm |
| Product code | 0799493544817 |
