2-Channel 5V USB Smart Relay Controller Module for PC Expansion
Product details
Product information

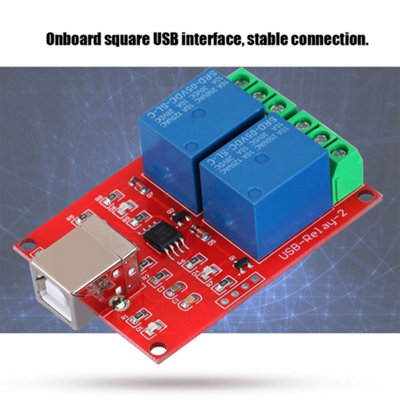

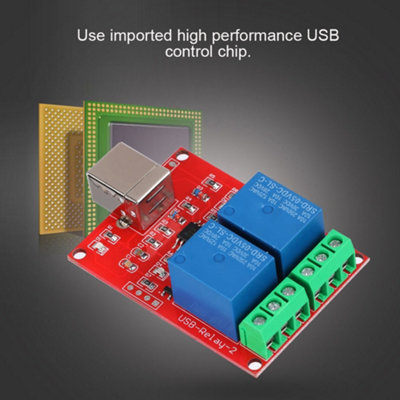

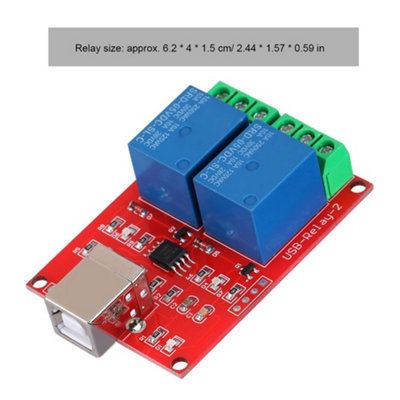

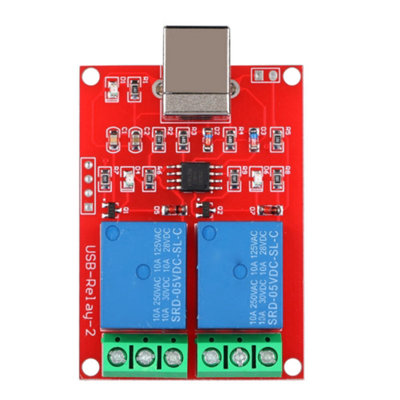

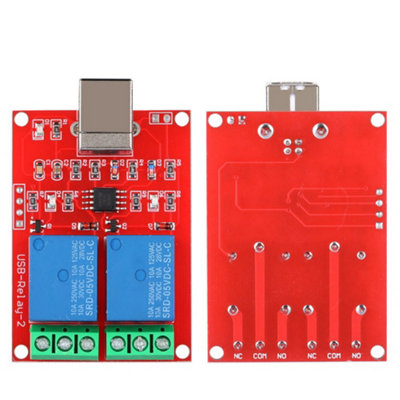

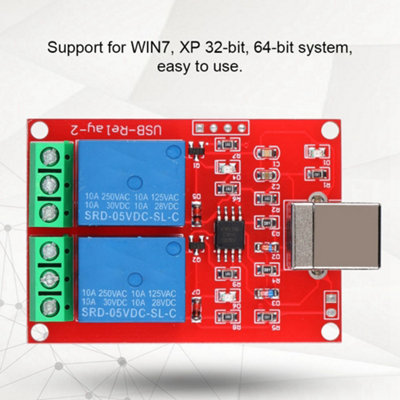

Features 1、Onboard square USB interface, stable connection. 2、Use imported high performance USB control chip. 3、Military-grade PCB board production. 4、Adopt for HID technology, no need for any driver, plug and play. 5、Support for WIN7, XP 32-bit, 64-bit system, easy to use. Specification Features: 1. Onboard square USB interface, stable connection. 2. Use imported high performance USB control chip. 3. Military-grade PCB board production. 4. Adopt for HID technology, no need for any driver, plug and play. 5. Support for WIN7, XP 32-bit, 64-bit system, easy to use. Specification: Voltage: 5V The relay can control 250V, 10A AC load and 30V, 10A DC load Support system: For WIN7, XP 32-bit, 64-bit system Control terminal connection method: NC/COM/NO Fixed hole size: 3 mm Fixed hole center distance: approx. 52.2 * 36.6 mm/ 2.06 * 1.44 in Relay size: approx. 6.2 * 4 * 1.5 cm/ 2.44 * 1.57 * 0.59 in Product Weight: approx. 32.5 g / 1.15 oz Package list: 1 * Relay Module Package List
- Guarantee - 3 months
Specifications
| Depth (mm) | 40mm |
|---|---|
| Product code | 8418981052826 |
