A1electrics 2 Way Garage Consumer Unit 63 Amp 30mA RCD with 6A and 32A MCBs

Product information

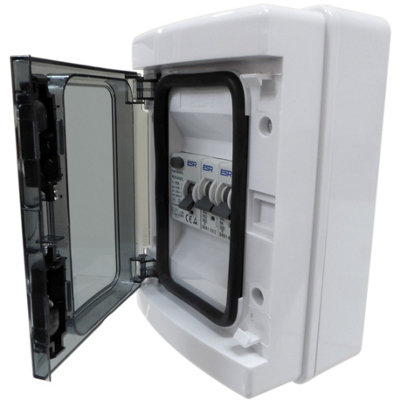

1 x Compact 2 Way Mains Consumer Unit - Pre-assembled, 63 Amp 30mA Double Pole RCD for earth leakage protection, 2 x Type B Single Pole 6kA Circuit Breakers, 6 Amp, ideal for Lighting, can take around 1400 watts of lighting, 32 Amp, ideal for a ring mains circuit for switches and sockets, IP65 Rated - Weatherproof - Suitable for installation indoors or outdoors, This unit has plain sides with no cable entry knockouts - fitter should drill their own cable entry holes with a suitable holesaw and install a gland in the holes to keep the IP rating intact, Dimensions: (H)210 x (W)142 x (D)105mm, Front hinged inspection door, Supplied with Busbar - just needs connected to mains, This unit is not supplied with a wiring diagram - it should be installed by a qualified electrician - if you don't know how to wire it then you shouldn't be wiring it - it is not a DIY project. Ideal for Garages, Sheds, Out buildings, Marinas etc

• Guarantee - Statutory
• Only fittings included
• DIN rail supplied
• Fixed busbar

Features and benefits

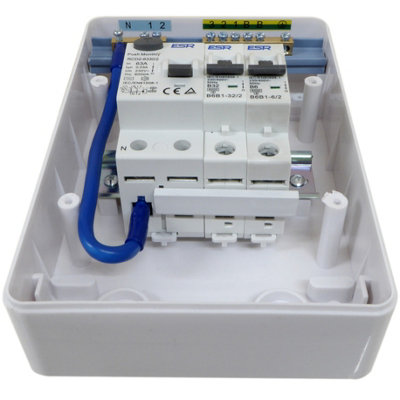

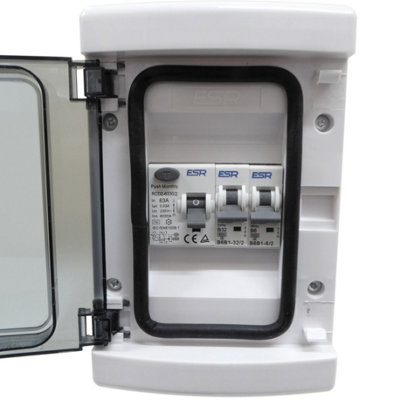

• Pre-assembled with 63 Amp 30mA RCD Switch and 2 x Type B MCB Circuit Breakers
• 6 Amp Type B MCB - Ideal for Lighting upto 1400 Watts
• 32 Amp Type B MCB - Ideal for ring mains circuit for switches and sockets
• Dimensions: (H)210 x (W)142 x (D)105mm

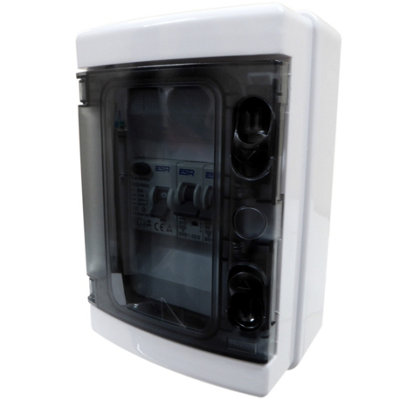

• IP65 rated - suitable for outdoor installations
• Ideal for Garages, Sheds, Outbuildings, Marinas etc

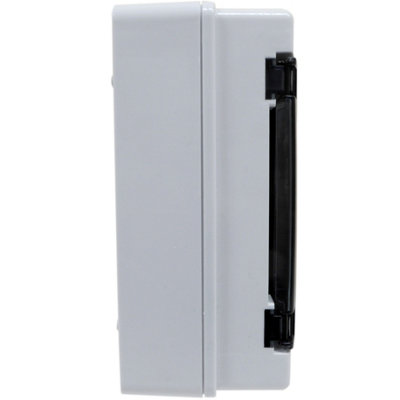

• This box has plain sides - no cable entry knockouts or guides for the knockouts, installer must drill their own cable entry holes, allowing the installer to drill where needed
• Installation instructions are not supplied - this should be installed by a qualified electrician who should (at the very least) know how to install a consumer unit
