BG 13A 1 gang 2 way Flat profile Switched Neon indicator Fused connection unit

Sold & shipped by B&Q

9.50

Checking availability...

Product details

Product information

This switched and fused 13A connection unit with indicator provides an outlet from the mains containing the fuse and is ideal for spur circuits and hardwired appliances. This FCU has a stainless steel finish with a moisture control gasket to protect the metal from tarnishing, whilst the screwed flat plate sits flush against the wall making it ideal for modern interior.

Guarantee - 25 years
Terminals accept up to 3 x 2.5mm² cables
Only fixings included

Features and benefits

Visible holes for screws facilitates easy installation
Ideal for spur circuits and hardwired appliances
Ideal for spur circuits and hard wired power appliances

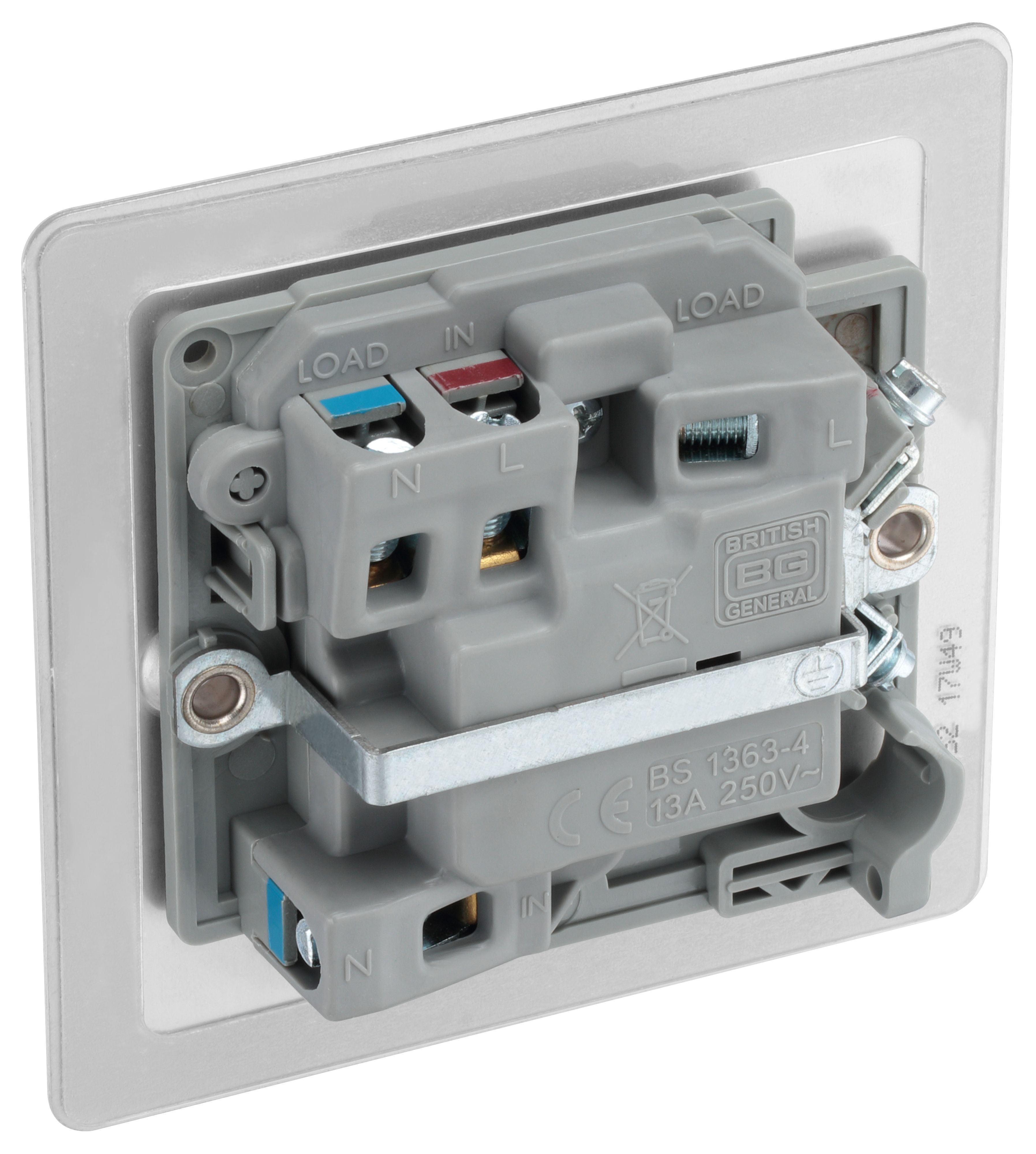

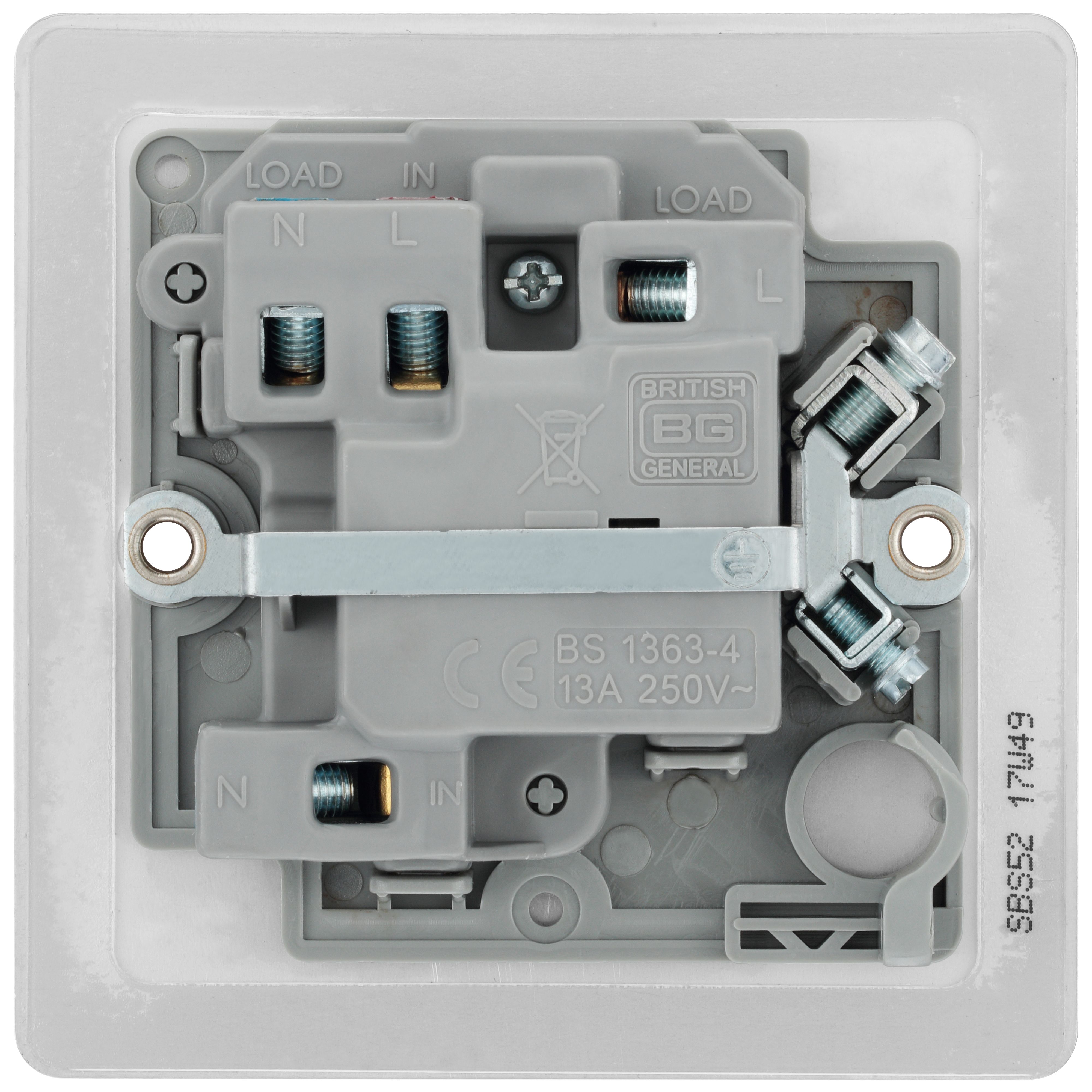

Angled colour coded terminals for ease of installation
Captive screws prevent screw loss
Screwless flat plate sits flush against the wall
No visible plastic around switch
Moisture control gasket prevents tarnishing from new plaster
Embossed with 'Fuse' on the fuse cover

Specifications

Brand	BG
Model name/number	SBS52
Pack quantity	1
Material	Stainless steel
Profile	Flat
Fused	Fused
Screwed/screwless	Screwed
Power voltage supply	250V
Switched/unswitched	Switched
Number of gangs	1
Number of poles	2
Minimum box depth required	35mm
Amp rating	13A
Indicator type	Neon indicator
Insert colour	Colour matched
Product code	5050765005869
