BG 6-way High integrity dual RCD Consumer unit with 63A mains switch

Sold & shipped by B&Q

Checking availability...

Product details

Product information

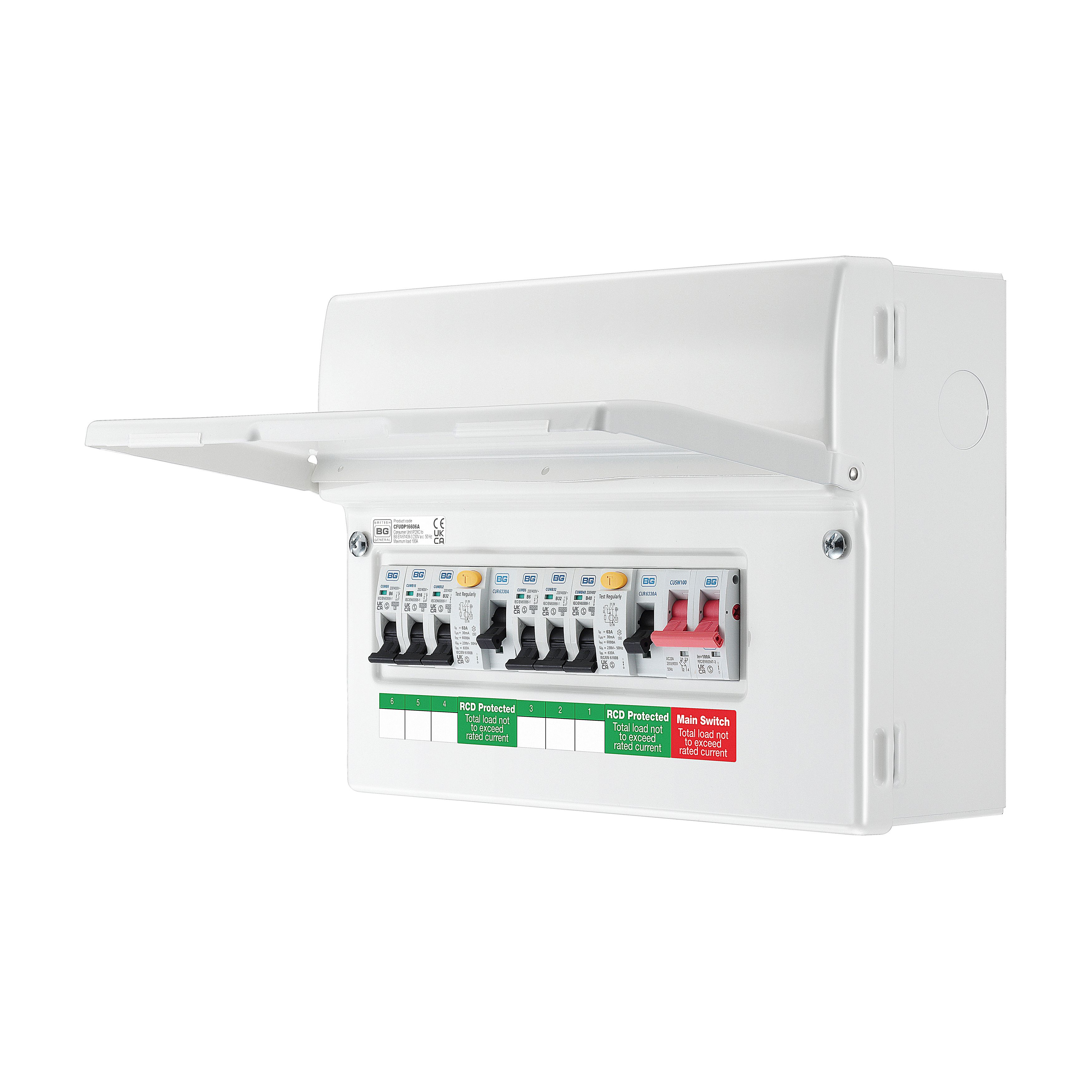

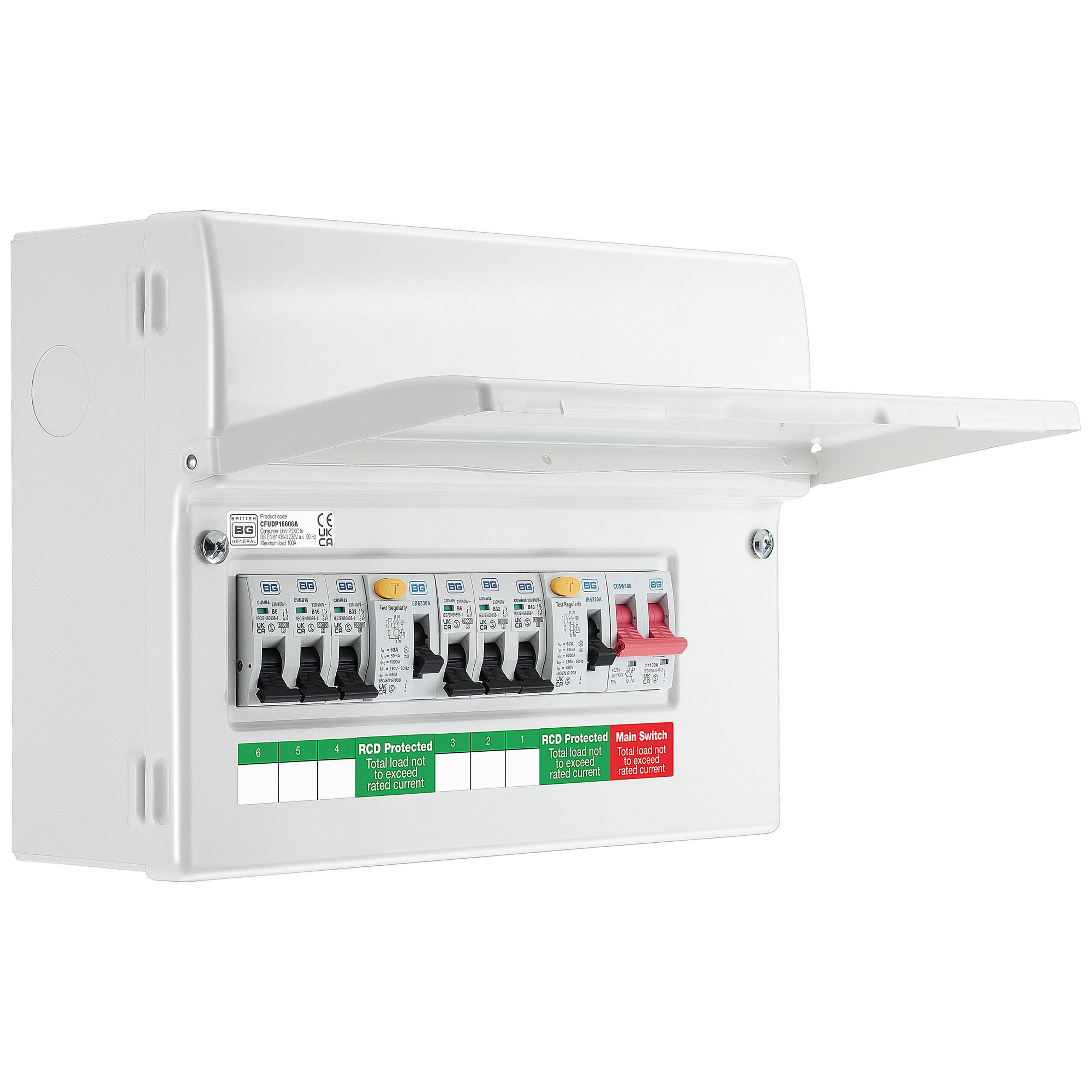

    This BG Fortress metal IP2XC populated 6 way dual RCD Consumer Unit allows the installer to split the consumers power needs across two 30mA RCD's, for example lighting and power. Supplied complete with an integral spirit level, 2 x 63A 30mA Type A RCDs 6 MCB's and all internal cables, terminals, busbar, labels and blanks. A modern stylish design and profile with flexible circuit combinations. Fast and easy installation with backed out and retained terminal screws and captive cover screws and painted in a high gloss finish to match all other BG wiring accessories.

      Features and benefits

      • Dual RCD 2 x 63A Type A RCD
      • Populated
      • High integrity
      • Integrated spirit Level
      • 100A main switch


      Amp rating63A
      Consumer unit usageDomestic
      Mains switch rating100A mains switch
      Model name/numberCFUDP16606A-BD
      Number of blanks2
      Number of MCBS supplied6 x MCBs (2 x 6A, 1 x 16A, 2 x 32A & 1 x 40A)
      Number of pieces1
      Number of populated ways6
      Number of RCDS supplied2 x 63A 30mA RCDs
      Pack quantity1
      Product depth116mm
      Product height231mm
      Product weight5.68kg
      Product width316.4mm
      Product code5050765194433
