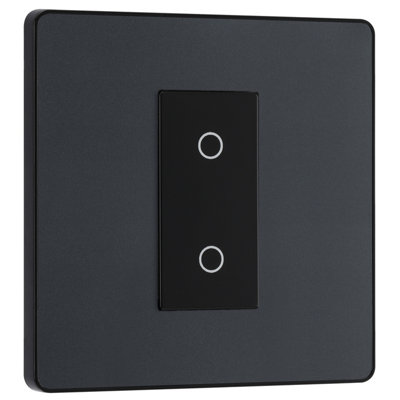

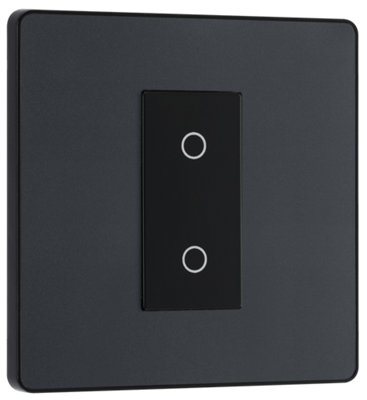

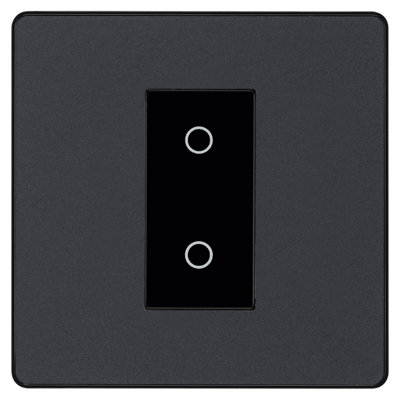

BG Evolve PCDMGTDS1B Matt Grey 1 Gang 200W Trailing Edge Secondary Touch Dimmer - Black Insert
Product details
Product information
Matt Grey Evolve 1 Gang 200W Trailing Edge Secondary Touch Dimmer - Black Insert About Product: 200W Rated (100W LED) Easy to install, supplied with fixing screws and installation instructions Adjust your light level for mood setting as well as energy saving with 2 way on/off Trailing (lagging) edge dimmer suitable for dimming LED, dimmable CFL's and traditional lighting Soft start brings the lights to a set level in around 1 second and extends the life of lamps Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected Silent operation - no noise when dimming Support for lower wattage lamps eliminates flicker Touch control Screwless front plate clips on and off easily, ideal for redecorating - polycarbonate construction This Evolve Matt Grey single secondary trailing edge touch dimmer allows you to control your light levels and set the mood. The intelligent electronic circuit monitors the connected load and provides a soft-start with protection against thermal, current and voltage overload, and is suitable for dimming LED, dimmable CFL's and traditional lighting. This Evolve Matt Grey
- Guarantee - 2 years
- Touch
Features and benefits

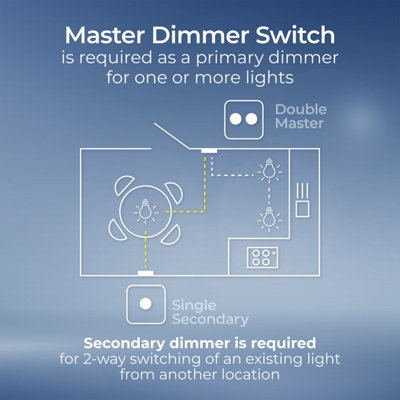

This Evolve Matt Grey single secondary trailing edge touch dimmer allows you to control your light levels and set the mood. The intelligent electronic circuit monitors the connected load and provides a soft-start with protection against thermal, current and voltage overload, and is suitable for dimming LED, dimmable CFL's and traditional lighting. This Evolve Matt Grey single secondary trailing edge touch dimmer is to be used in a secondary location, where a light (or circuit) is controlled by two switches, in conjunction with a master.
- 200W Rated (100W LED)
- Adjust your light level for mood setting as well as energy saving with 2 way on/off
- Trailing (lagging) edge dimmer suitable for dimming LED, dimmable CFL's and traditional lighting
- Soft start brings the lights to a set level in around 1 second and extends the life of lamps
- Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers and will turn the lights down or off until the load is corrected
- Silent operation - no noise when dimming
- Support for lower wattage lamps eliminates flicker
- Touch control
Specifications
| Brand | British General |
|---|---|
| Model name/number | Evolve |
| Colour | Matt Grey |
| Pack quantity | 1 |
| Number of ways | 2 |
| Power voltage supply | 220-240V |
| Screwed/screwless | Screwless |
| Number of gangs | 1 |
| Product width | 86mm |
| Product height | 86mm |
| Maximum dimmable load (incandescent) | 200W |
| Maximum dimmable load (halogen) | 200W |
| Maximum dimmable load (fluorescent) | 100W |
| Maximum dimmable load (LED) | 100W |
| Minimum dimmable load (fluorescent) | 5W |
| Minimum dimmable load (halogen) | 20W |
| Minimum dimmable load (incandescent) | 5W |
| Minimum dimmable load (LED) | 5W |
| Waveform | Trailing edge |
| Insert colour | Black |
| Voltage suitability | Mains voltage |
| Product code | 5050765184816 |
