BG Flatplate Switched Fused Connection Unit with LED, Matt Black
Sold & shipped by LUCECO PLC
Available online only and not stocked in B&Q stores
£11
Product details
Product information

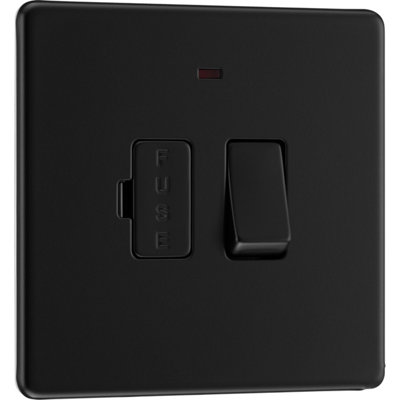

This BG Flatplate switched fuse connection unit with LED has a matt black finish with soft rounded edges and a flat metal profile. An integrated fuse and rocker switch enables isolation of an appliance from the main electrical supply.
- Guarantee - 25 years
- Only fixings included
Features and benefits
Ideal for spur circuits and hardwired appliances, and double pole for safer installation. The moisture control gasket prevents tarnishing from new plaster. Colour coded terminals and captive screws make installation easy. The screwless front plate clips on/off, ideal when redecorating. Requires a 35mm back box.

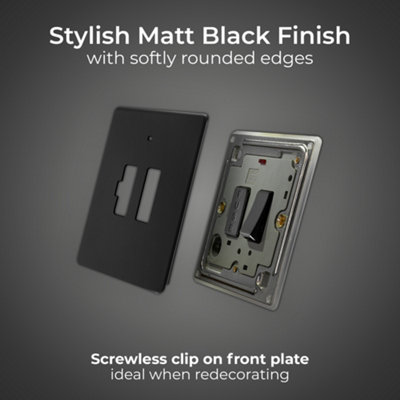

- Style: The Screwless Flatplate clips on and off, ideal when re-decorating. No visible plastic around the switch.

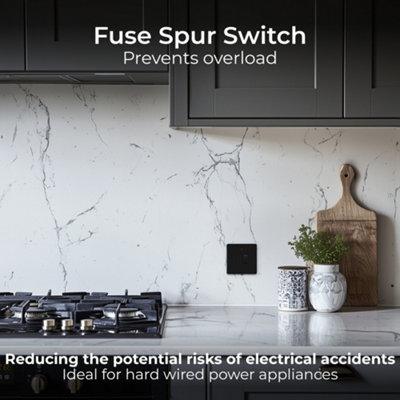

- 13A Switched Fused Connection Unit: Ideal for spur circuits and hardwired appliances where isolation from the mains supply is necessary.

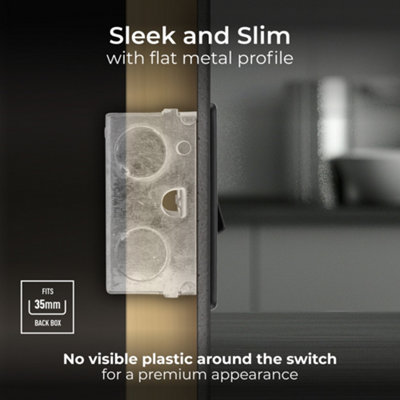

- Moisture Control Gasket: Protects metal edges from tarnishing. Minimum mounting box depth 35mm.

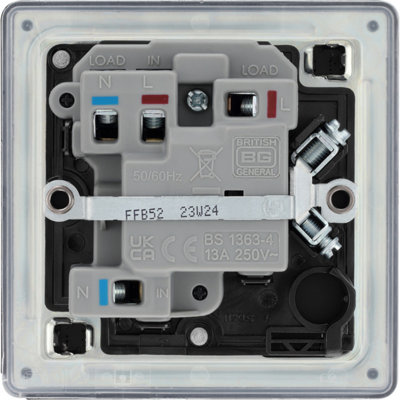

- Easy Identification: Colour coded terminals with captive screws provide easy access for quick installation.
- 25 Year Warranty: Giving you peace of mind with this British General product. Certified to BS 1363 Part 4 standards. ASTA certified.
Specifications
| Brand | British General |
|---|---|
| Model name/number | Screwless Flatplate |
| Colour | Matt Black |
| Pack quantity | 1 |
| Material | Steel |
| Profile | Flat |
| Fused | Fused |
| Screwed/screwless | Screwless |
| Power voltage supply | 220-240V |
| Switched/unswitched | Switched |
| Number of gangs | 1 |
| Number of poles | 2 |
| Minimum box depth required | 35mm |
| Amp rating | 13A |
| Indicator type | LED indicator |
| Product code | 5050765238113 |
