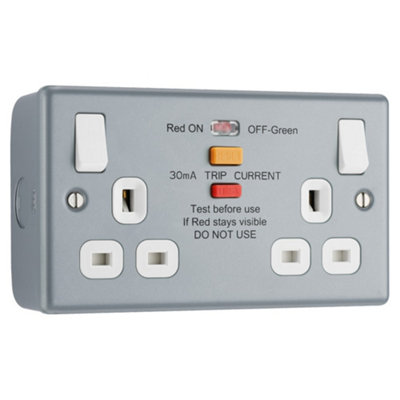

BG MC522RCD Metalclad Twin RCD Switch Socket 13A 2 Gang (Latching / Passive)

Product information

A rugged, scratch resistant range, suitable for everyday use in domestic, commercial and industrial environments

• Top, bottom & side knockouts
• Fittings & fixings not included
• Guarantee - 1 year

Features and benefits

• continuously monitors the power supply to any electrical appliance hardwired into it; and cuts off the power within 40 milliseconds if an earth current fault is detected
• If the unit loses supply - perhaps in a power cut or when a hazardous earth fault occurs – the RCD will trip and cut the power supply. When the supply resumes through the RCD, the appliance will revert to the original state, making it particularly useful for protecting indoor appliances such as refrigeration units
• 13A 250V AC 50Hz. Single pole switching. Latching / passive
• Due to latching operation, for safety this product is not recommended for use with power tools and garden equipment
• Comes with surface mounting back box. 30mA trip current. Trip speed <40mS
• Manufactured to BS 1363 Part 2 & BS 7288. UKCA & CE certified
• Dimensions: 142mm wide x 81.5mm high x 51mm deep
