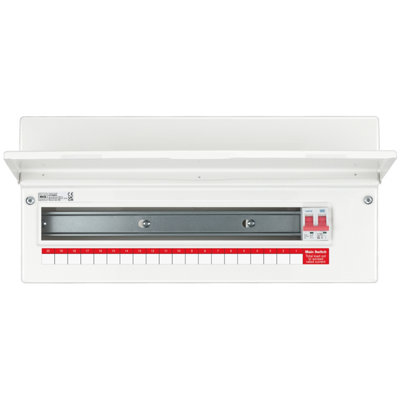

BG Metal Consumer Unit 22 Module, 20 Way Unpopulated With 100A Main Switch 2 x Cover Blanks With Up Opening Front Cover
Sold & shipped by Electricals247
Available online only and not stocked in B&Q stores
£60.66
Product details
Product information
The BG Fortress range of Main Switch Consumer units offers fast and simple installation with the flexibility for maximum circuit combinations and easy upgrades for additional MCB, RCBO and SPD devices to suit the installation.
- Surface-mounted
- Fittings & fixings not included
- Guarantee - 10 years
Features and benefits

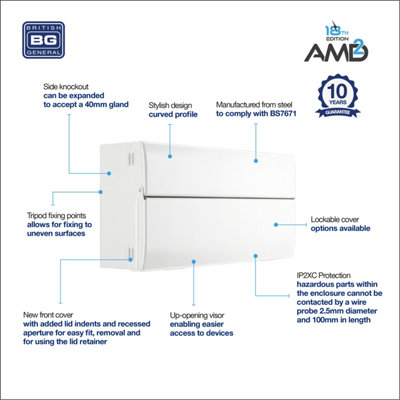

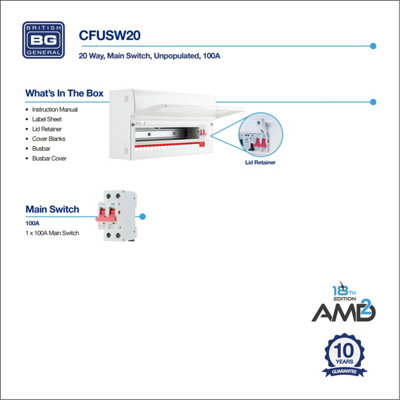

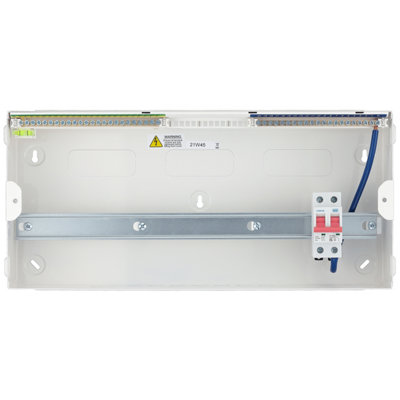

This BG Fortress metal IP2XC unpopulated 20 way Main Switch Consumer Unit offers double pole isolation, ready for MCB or RCBO circuits and comes complete with an integral spirit level, 100A Main Switch and all internal cables, terminals, busbar, labels and blanks. A modern stylish design and profile with flexible circuit combinations. Fast and easy installation with backed out and retained terminal screws and captive cover screws and painted in a high gloss finish to match all other BG wiring accessories.

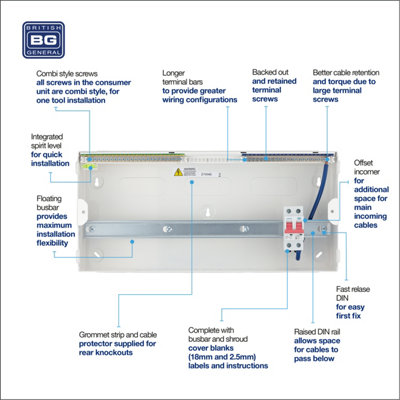

- Integrated spirit Level

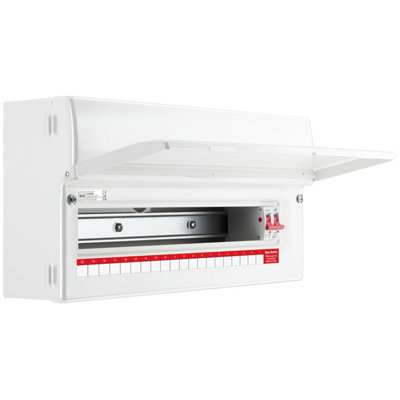

- Upward opening visor
- Combi style screws
- Offset incomer for greater cable space
- Backed out and retained terminal screws
Specifications
| Amp rating | 100A |
|---|---|
| Brand | British General |
| Busbar type | Floating busbar |
| Consumer unit material | Metal |
| Consumer unit type | Main switch |
| Consumer unit usage | Domestic |
| CSU populated/unpopulated | Part-populated |
| DIN rail supplied | DIN rail supplied |
| IP rating | IP2X |
| Mains switch rating | 100A mains switch |
| Model name/number | Fortress |
| Number of available ways | 20 |
| Number of MCBS supplied | 0 x MCBs |
| Number of module rows | 1 |
| Number of modules when empty | 20 |
| Number of RCBOs supplied | 0 x RCBOs |
| Number of RCDS supplied | 0 x RCDs |
| Pack quantity | 1 |
| Power voltage supply | 230V |
| Product depth | 116mm |
| Product height | 231mm |
| Product weight | 4.74kg |
| Product width | 496mm |
| Product code | 5050765159722 |
