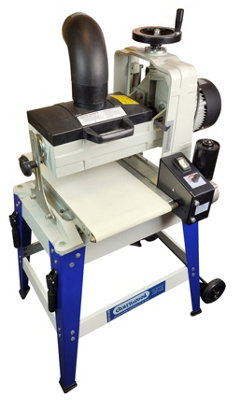

Charnwood DS10/20 Drum Sander With 10''/20'' Width Capacity

Product information

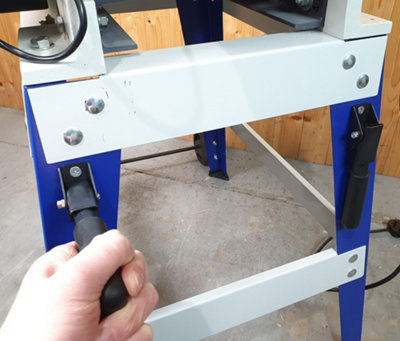

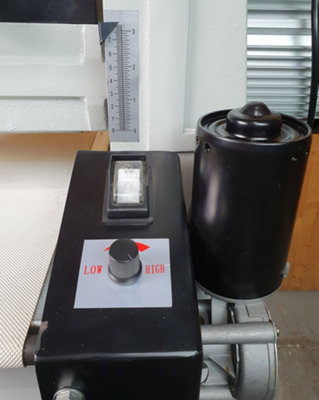

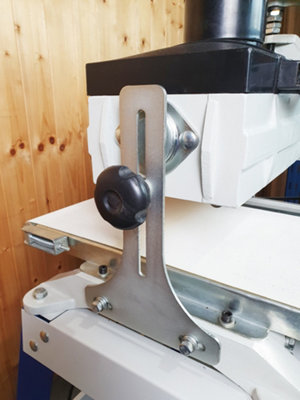

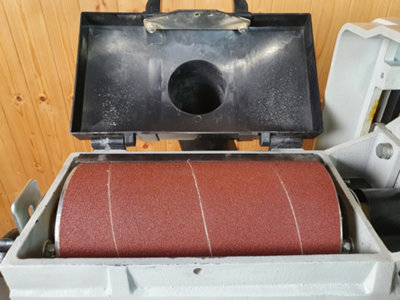

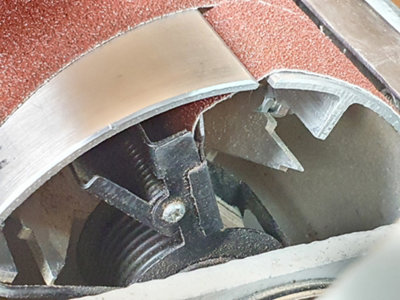

After planing timber, the drum sander can be used to complete the finishing process. The work piece is fed through the sander on a powered conveyor belt with a variable speed control to achieve an optimum finish on all timber types. The single pass capacity of the machine is 250mm (10″). However, by removing the side plate (which is fitted with a quick removal mechanism) the work piece can be fed through the now open end of the sander giving a capacity of up to 500mm (20″) by making 2 passes. The height of the sanding drum is adjusted using a large hand wheel and the position read off the scale, which is graduated in both millimetres and inches. Changing the sandpaper wrap is a simple task which requires no tools. Our sanding wraps are pre-cut with a taper at each which is clamped into each end of the drum. If you are using a sandpaper roll, you will need to make a template and cut the tapers before fitting. Mobility is no problem thanks to the wheels and lifting handles provided. Supplied with a fitted 80 grit sanding wrap, floor stand, wheels & lifting handles, dust port elbow, 2.0m cable and UK 3 pin plug. Charnwood DS10/20 Specification Maximum Width (1 Pass) 255mm (10″) Maximum Width (2 Passes) 505mm (20″) Maximum Workpiece Thickness 75mm (3″) Minimum Workpiece Thickness 5mm (1/5″) Minimum Length 65mm (2.6″) Maximum Removal 0.8mm (1/32″) Drum Motor (Induction) 1100w (1.5hp), 240v, 50hz Drum Speed 1440rpm Drum Size (Diameter / Length) 132mm / 260mm Conveyor Motor (DC) 50w (1/15hp) Conveyor Speed (Variable) 0-3 m/min Dust Port Diameter 100mm Dust Collection Minimum Requirement 1000m3/hour (50 Litres per second) Assembled Dimensions (WxDxH) 900 x 590 x 1140mm Shipping Dimensions (WxDxH) 800 x 640 x 640mm Weight (Net/Gross) 72kg / 80kg Assembly Time Required 30 minutes (Requires 2 people) Product Guarantee 5 Years

• Guarantee - 5 years

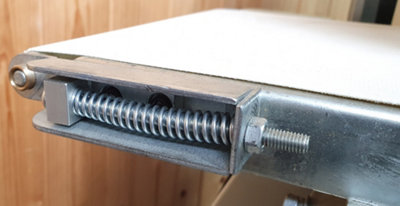

• Adjustable belt tracking
• Includes plug
• 1550mm
• 255mm

Features and benefits

Charnwood DS10/20 Specification: Maximum Width (1 Pass) 255mm (10″), Maximum Width (2 Passes) 505mm (20″), Maximum Workpiece Thickness 75mm (3″), Minimum Workpiece Thickness 5mm (1/5″), Minimum Length 65mm (2.6″), Drum Motor (Induction) 1100w (1.5hp) / 240v / 50hz, Drum Speed 1440rpm, Drum Size (Diameter / Length) 132mm / 260mm, Conveyor Motor (DC) 50w (1/15hp), Conveyor Speed (Variable) 0-3.5m/min, Dust Port Diameter 100mm, Dust Collection Minimum Requirement 1000m3/hour (50 Litres per second), Assembled Dimensions (WxDxH) 900 x 590 x 1140mm, Shipping Dimensions (WxDxH) 800 x 640 x 640mm, Weight (Net/Gross) 72kg / 100kg, Assembly Time Required 1 hour, Product Guarantee 5 Years.

• 10″ Sanding Width in a Single Pass
• 20″ Sanding Width using 2 Passes
• Variable Speed Feed Conveyor
• Floor Stand Included

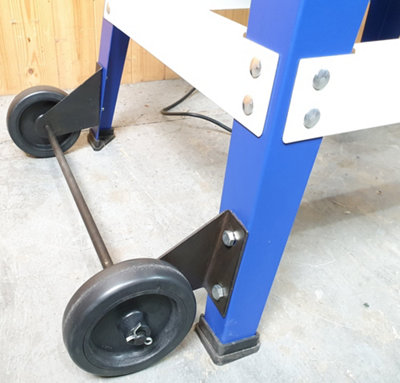

• Wheel Kit Included
• Special Offer: 5 FREE Sanding Wraps Included

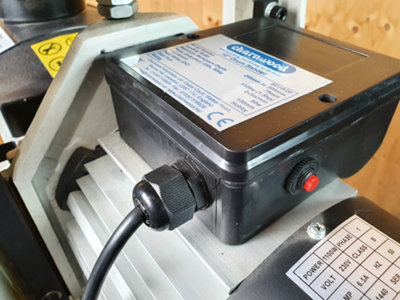

• 1100w Induction Motor
