Corefix Connect 100 Dot & Dab Wall TV Fixing Kit With Drill Bit Pack of 6
Product details
Product information
Corefix 100 - heavy duty dot & dab wall (plasterboard over blockwork) fixing, easy to install using just a drill, screwdriver & hammer. Patented system that includes an engineered steel core that bridges the cavity behind the plasterboard and transfers the load straight to the blockwork. Avoids having to rely on the strength of the plasterboard alone to hold heavy items.
- Guarantee - 1 year
- Suitable for Brick, block, concrete & plasterboard

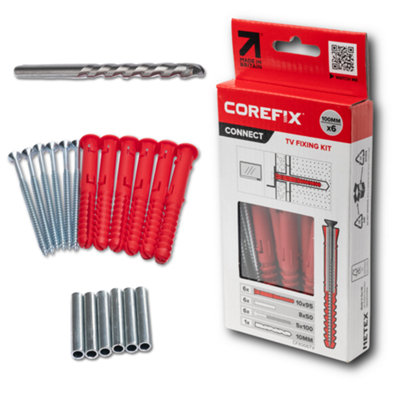

- Comes with 6x plugs, 6x screws, 6x steel cores, 1x drill bit
Features and benefits

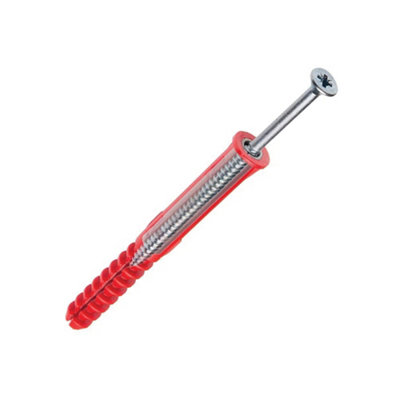

100mm screw length. 10mm maximum fixture depth, maximum distance to blockwork from face of plasterboard 45mm. Safe Working Load of 55kg each fixing (Factor Safety of 2). Includes 10mm masonry drill bit. 6 pack.
- Heavy Duty Dot & Dab wall fixing kit for mounting TVs

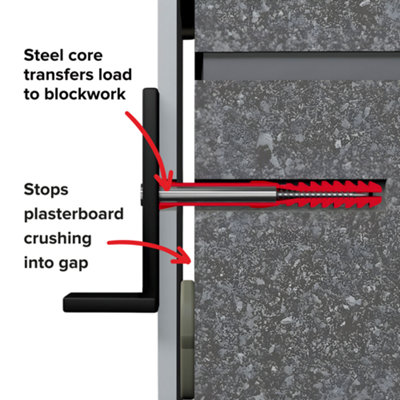

- Steel Core Transfers Load to Blockwork
- 55kg Safe Working Load/Fixing (Safety Factor 2)
- Max. 10mm Bracket / Fixture Thickness
- Suitable for All Brick & Block Types
- Includes Drill Bit
- Made In The UK
Specifications
| Brand | Corefix |
|---|---|
| Colour | red, silver |
| Diameter (mm) | 10mm |
| Drill bit size | 10mm |
| Length (mm) | 95mm |
| Material | Plastic & steel |
| Maximum load | 55kg |
| Maximum load (solid wall) | 55kg |
| Pack quantity | 6 |
| Weight (g) | 195g |
| Product code | 5060517030384 |
Documents
Product Guide
Manufacturer / EU responsible person
Reviews
5 / 5(1 reviews)R J F - 5 / 5 - 17/03/2025
Game changer - dot and dab walls
Tried lots of different fixings for dot and dab walls without much success until I came across these fixings at B and Q. Easy to use and very strong fixing. Instructions were very clear and helpful
