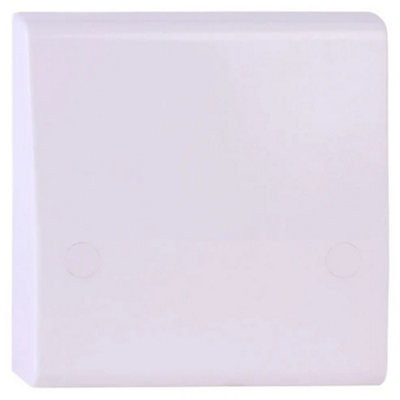

Deta S1217 Slimline Cooker Connection Outlet with Terminals 45A
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£8.45
Product details
Product information
Cooker Connection Outlet Plate
- Guarantee - 1 year
- Only fixings included
Features and benefits
- Cooker outlet plate. Normally located behind a cooker to allow connection to fixed wiring
- 240V ACV 50Hz. Maximum load 45 amps
- Minimum back box depth required 47mm
- Unique slim profile with curved top and bottom edges
- Manufactured to BS 5733 : 2010+A1:2014. UKCA & CE certified
- Dimensions: 86mm wide x 86mm tall
Specifications
| Colour | White |
|---|---|
| Fused | Unfused |
| GS approved | Not GS approved |
| Minimum box depth required | 47mm |
| Model name/number | S1217 |
| NF approved | Not NF approved |
| Number of gangs | 1 |
| Number of modules | Single |
| Product width | 86mm |
| Switch/socket profile | Raised rounded |
| Screwed/screwless | Screwed |
| Standard | BS 5733 : 2010+A1:2014 |
| Switched/unswitched | Unswitched |
| Switches & sockets type | Flex outlet |
| Product code | 5029163012175 |
