Diall M10 Steel Through bolt, nut & washer (L)120mm, Pack of 4
Sold & shipped by B&Q
£4
Product details
Product information

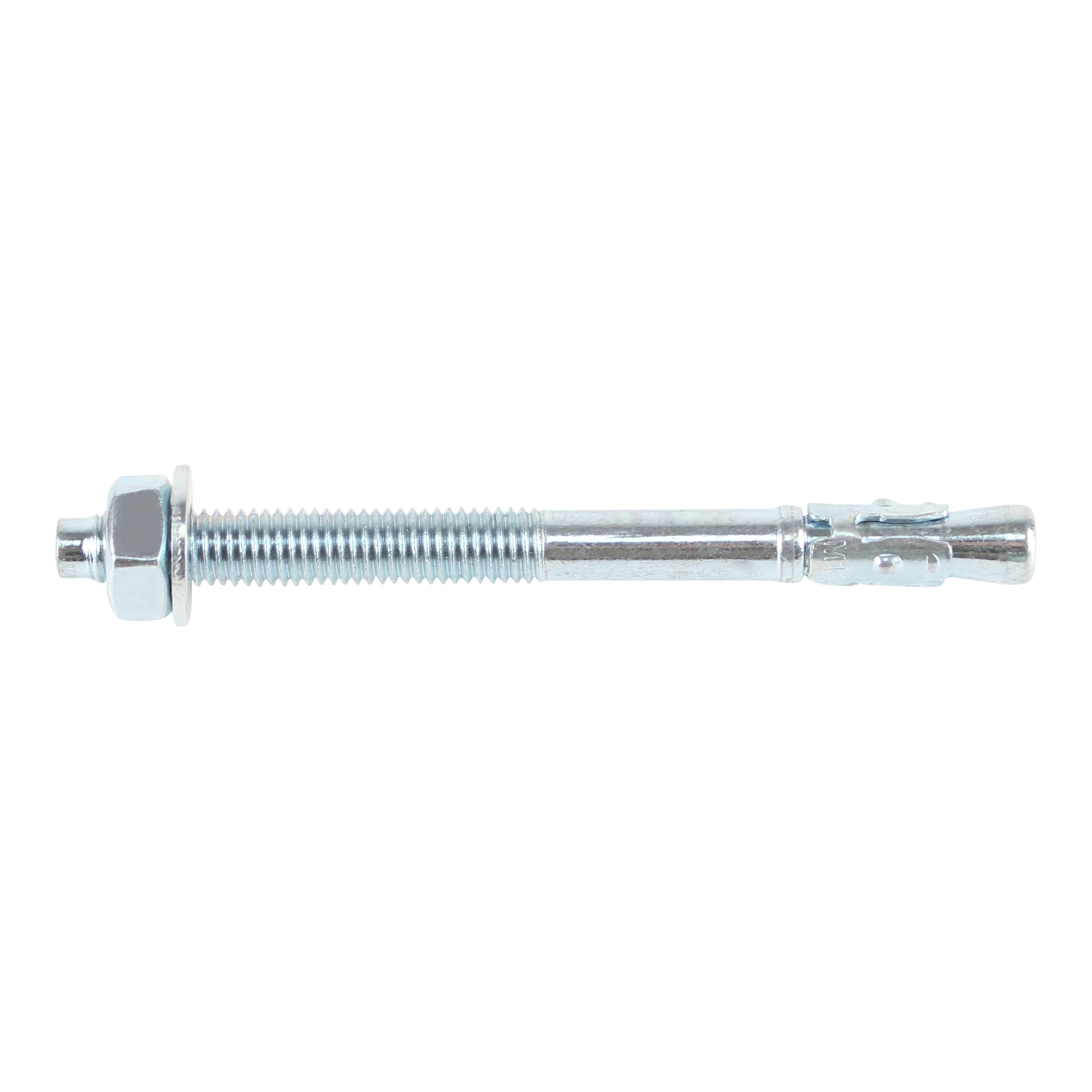

This Diall M10 Steel Through Bolts with Nut & Washer set is a reliable and high-performance solution for heavy-duty structural fixing applications. Designed for concrete-only installations, these through bolts provide strong anchorage, making them ideal for securing guard rails and other demanding projects. Each pack contains four 120mm bolts, complete with nuts and washers for convenience and ease of use.
- Guarantee - 2 years
- Suitable for Guard rails
- Resistant to rust
Features and benefits

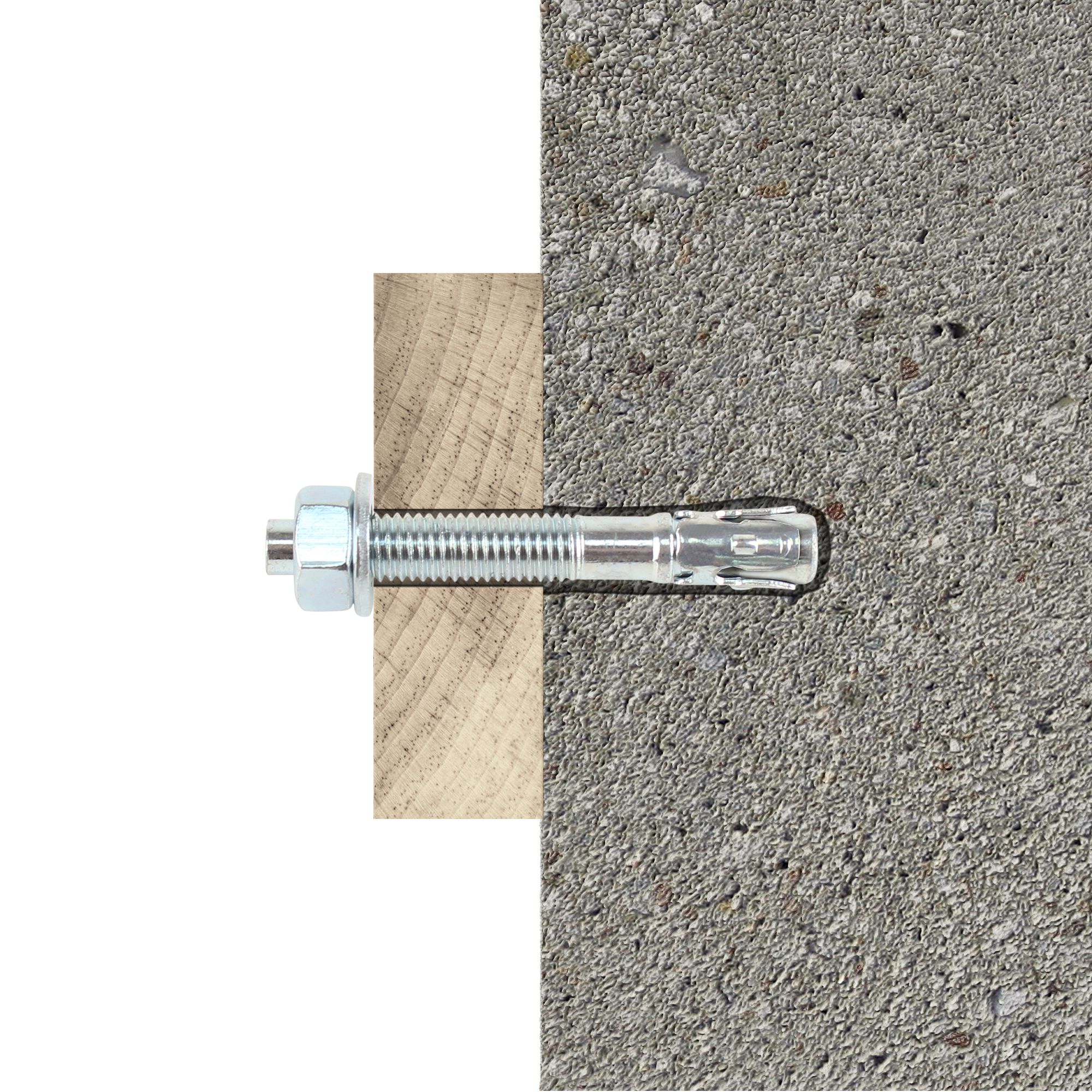

- Through bolt anchor are ideal for attaching items to concrete

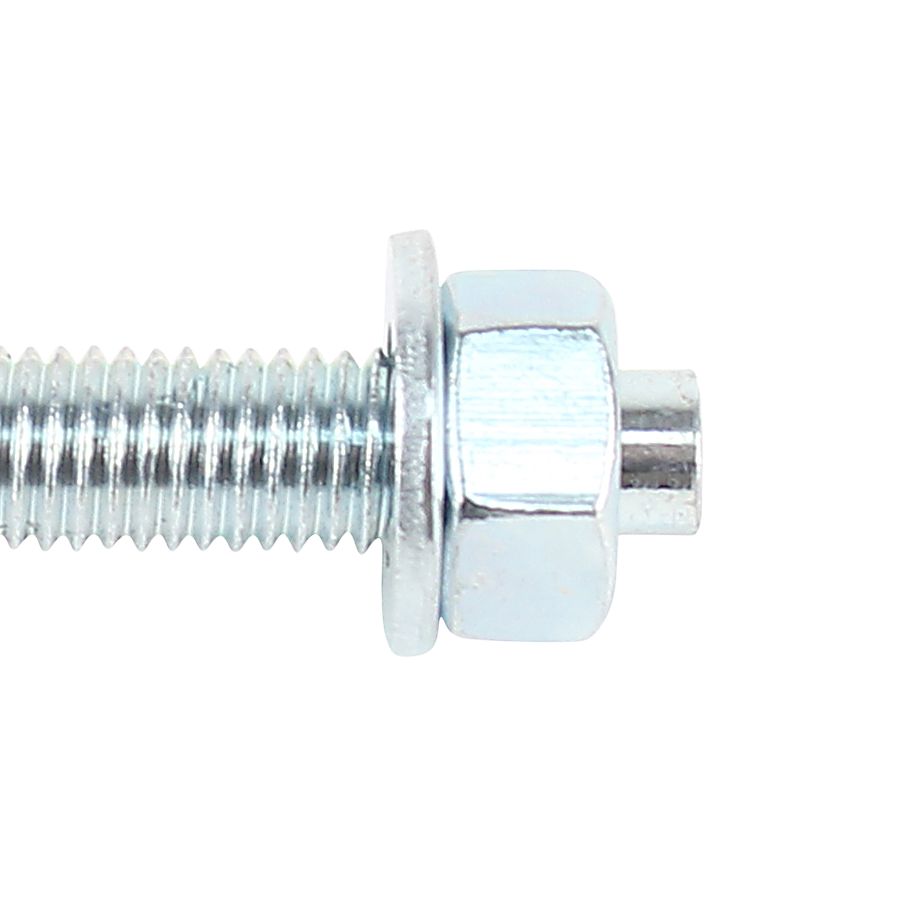

- Nut and washer already supplied for convenience and ease to use

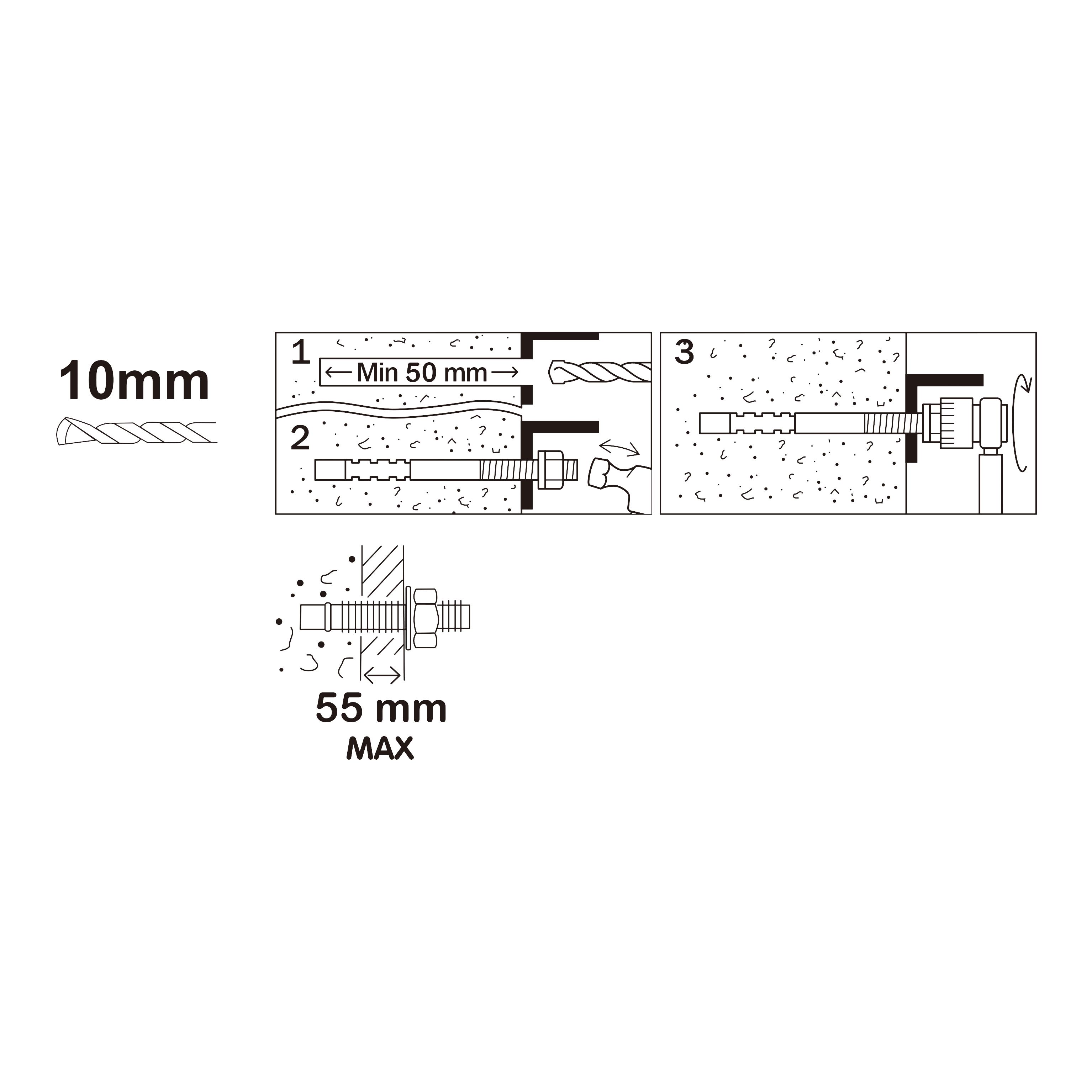

- The diameter of the drill bit/hole is the same as the diameter of the anchor
- The anchor is for heavy duty fastening applications where high pull out values in concrete are needed
- For concrete only, not for block or brick base material
Specifications

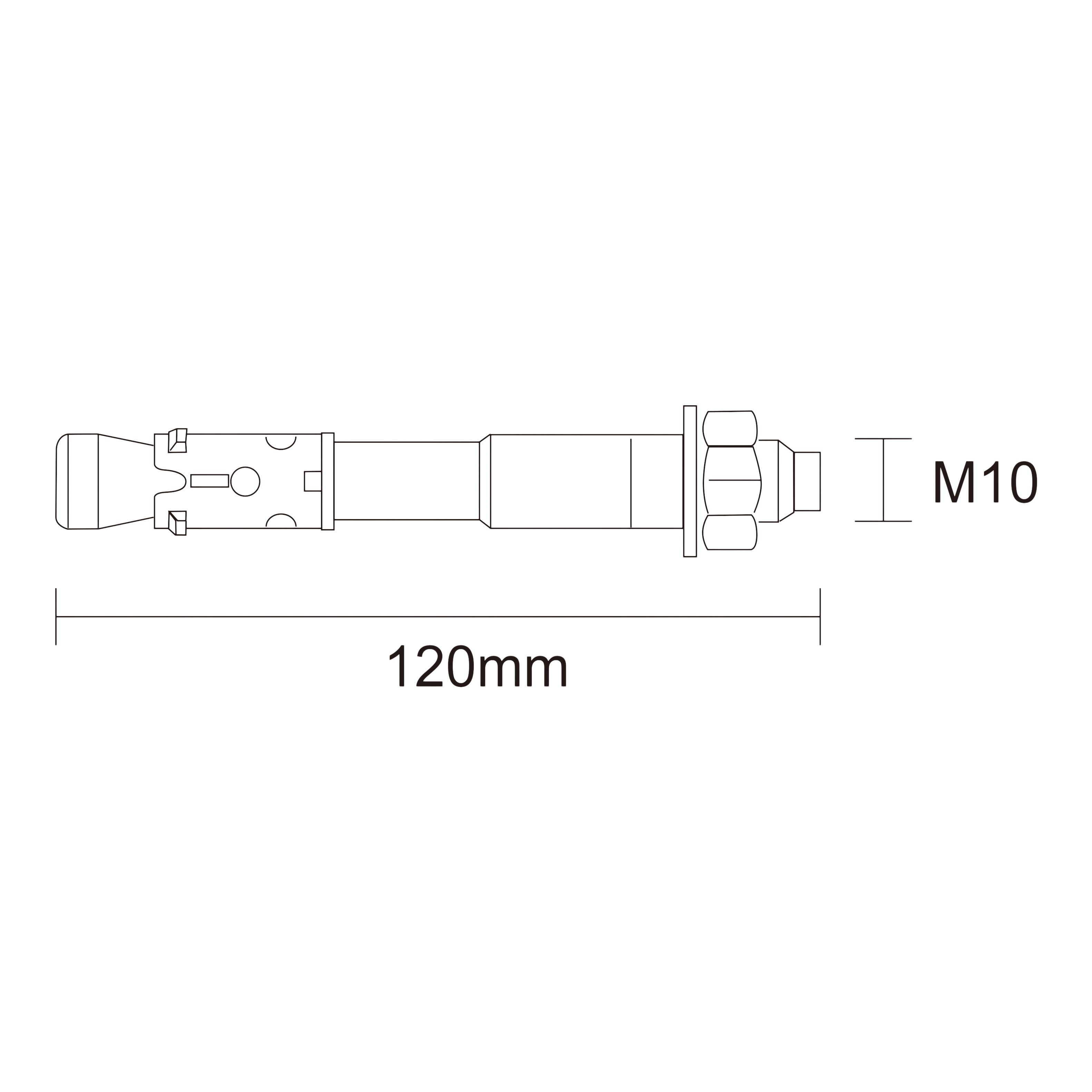

| Bolt size | M10 |
|---|---|
| Brand | Diall |
| Drill bit size | 10mm |
| Drive type | Hex |
| Head type | Embossed head |
| Length (mm) | 120mm |
| Material | Steel |
| Maximum load | 550kg |
| Pack quantity | 4 |
| Thread length | 54mm |
| Weight (g) | 280g |
| Product code | 5059340426549 |
