Faithfull EM908 Socket Polarity Tester with RCD Test Function FAIDETSOCRCD
Product details
Product information

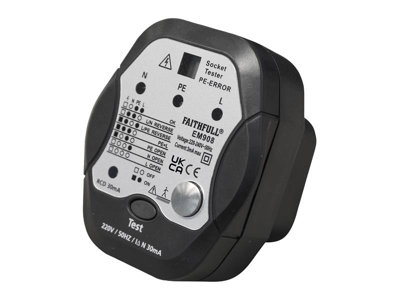

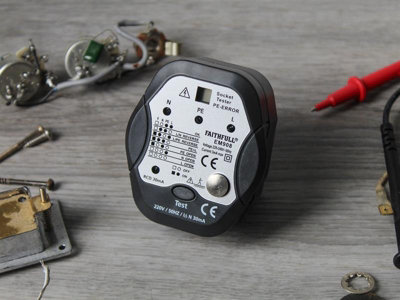

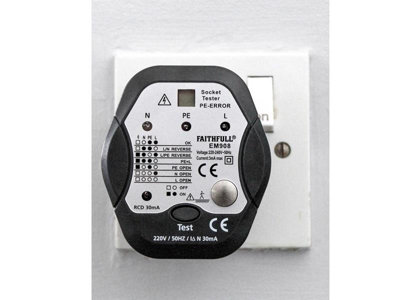

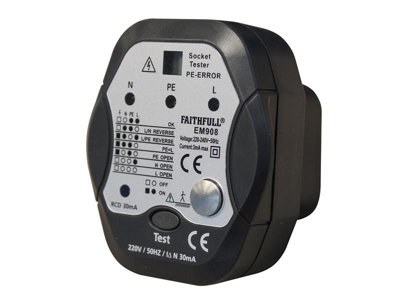

The Faithfull Socket Tester is an essential mains safety tester designed for testing socket wiring and RCDs. It will determine whether a socket is wired correctly or incorrectly. Used in conjunction with the coding table provided, the 5 combined indicators show the true status of the sockets wiring condition. It provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE). The use of 3 neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring. It is equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA. Specification: Socket Type: UK 240V 3-Pin Nominal Voltage: 220V 10% Frequency Range: 50~60Hz Measurement Category: CATIII, 300V RCD Test Time: 60~300ms Contact Voltage Threshold: <35 AC against ground depending on coupling to earth RCD Test Current: 30mA 15% Dimensions: 77 x 67 x 66mm Weight: approx. 70g
- Guarantee - Statutory
- Socket Tester, RCD Tester
- With RCD test
Features and benefits
Voltage Range:220-240V Current:AC Brand:Faithfull Category:Voltage Testers Height:135mm Width:75mm Depth:195mm Weight:0.126kg MPN:EM908
- Voltage Range:220-240V
- Current:AC
- Brand:Faithfull
- Category:Voltage Testers
- Height:135mm
- Width:75mm
- Depth:195mm
- Weight:0.126kg
Specifications
| Brand | Faithfull |
|---|---|
| Pack quantity | 1 |
| Product height | 1mm |
| Product width | 1mm |
| Model name/number | EM908 |
| Product code | 5023969001258 |
