G3/4-G3/4 Thread Water Pump Adjustable Flow Sensor Pressure Automatic Control Switch

Product information

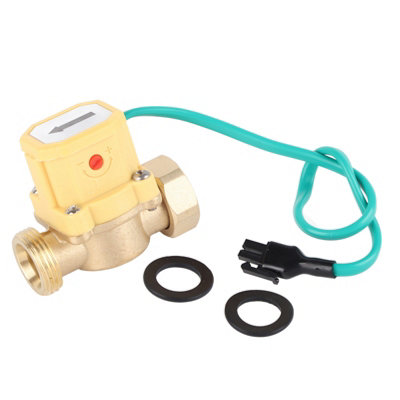

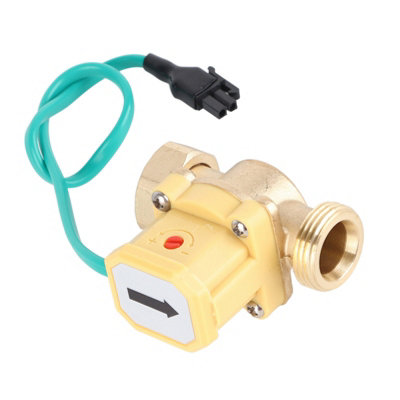

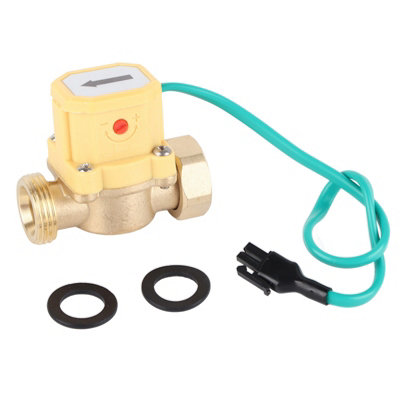

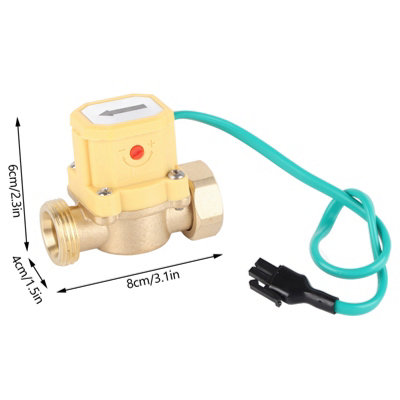

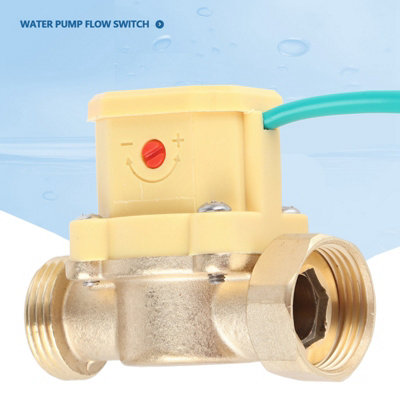

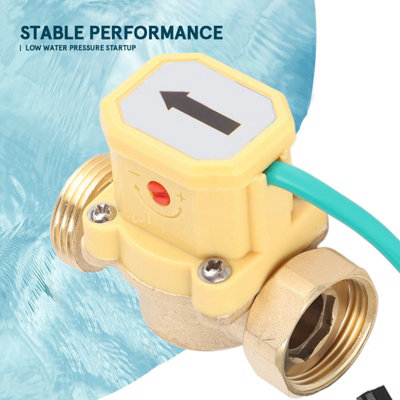

Features: Stable performance; induction chamber, magnetic control chamber and electronic components are designed separately in order to avoid switch failure caused by iron matter in pipeline is magnetic adsorbed. High temperature resistant materials allows the product to be used for both hot(up to 70℃) and cold water. Low water pressure startup; reset spring is made of high quality stainless steel; it can start up pump when water pressure is >0.03KG. The electronic components as control device will not cause spark during work which is quite safe. This product is widely used for low pressure area family, especially important for low water pressure ignition start-up of water heater, automatic water cycle of solar water heater. The sensitivity of this flow switch is adjustable. Specification: Model: HT-200 Overload Current: 1.5A Connection Thread: G3/4-G3/4 Suitable Liquid: Water or other liquid of similar physical and chemical property Liquid Pressure: <0.6Mpa Liquid Temperature: <70℃ Weight: 194g / 6.8oz (approx.) Package list: 1 * Flow Switch (with gasket) Package List
