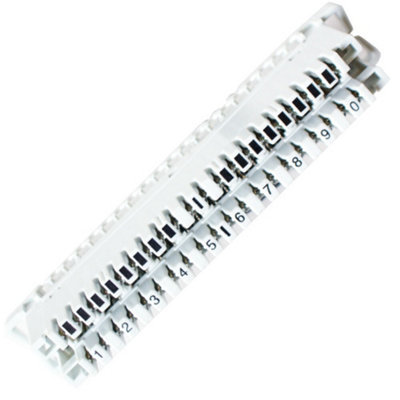

IDC Strip 237B Grey 10 Pair BT Cable Terminal Connection Block Coupler Joiner

Product information

​IDC Strip Grey 237B - 10 Pair Size – Length 120mm, Width 20mm, Depth 40mm Overview Suitable for use with mount frames that are 105mm in width (they tend to be a standard universal fitting). 10 pair 237 strip connections simply push on to mount frame. A 10 pair 237 strip connection has 40 IDC ports, 20 incoming and 20 outgoing which are jointed together individually. Product Specification Each pair features a test point. Termination – Dry Gas Tight Insulation Displacement Wire Size (solid) – 0.4-0.9mm Wise Size (stranded) – 7/0.15 – 7/0.25 (19-26AWG) Materials – Body: ABS, Contacts: Phosphor Bronze, Silver Plated

• Guarantee - 1 year
