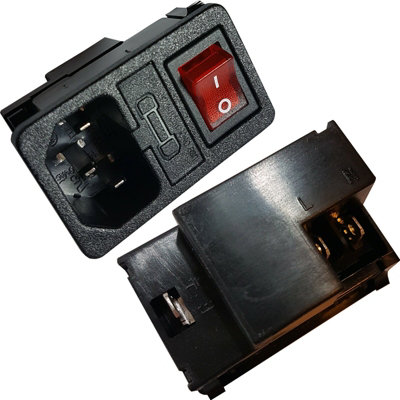

IEC C14 Switched & Fuse Power Socket 10A Snap on Panel Chassis Mount Connector
Product details
Product information
Snap on IEC Socket Power Inlet – Switched & Fused PLEASE NOTE – This is for 1 piece only, we also sell them in quantities of 10, please search our shop for more details. Overview – Perfect for replacing / adding any power sockets providing that there is enough room for it to be mounted (dimensions below). It is constructed from high quality materials is very simple to install. This particular unit features a power switch and the means of attaching a fuse (please note that a fuse is not included).Dimensions: Panel cut-out required – 47mm x 27.7mmFrame size – 50mm x 30.5mmSolder tags – 5.5mm x 4mm x 0.8mmTechnical Specifications: Power/current rating – 10A @ 250V ACDielectric strength – 2000V @ 1 minuteInsulation resistance – 100Mohm @ 500V DCSnap on connectors – no screws needed to secure the positionColour – Black Standards – ROHS Compliant
- Guarantee - 1 year
Specifications
| Pack quantity | 1 |
|---|---|
| Product diameter | 20mm |
| Product height | 200mm |
| Product length | 200mm |
| Product weight | 0.01g |
| Product code | 5055538148101 |
