INVERTER SMA 3KW, ON-GRID, SINGLE-PHASE, 2 MPPT, NO DISPLAY, WIFI SMA - SB3.0-1AV-41

Product information

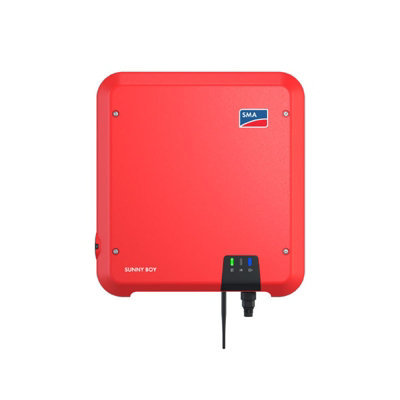

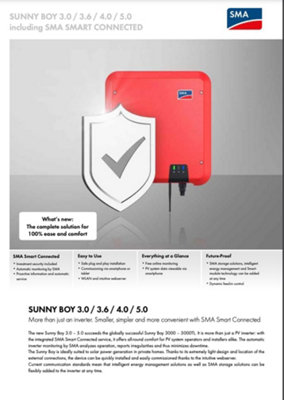

The Sunny Boy 3.0–6.0 inverter ensures maximum solar energy yields in households. It combines the integrated SMA Smart Connected service and intelligent technology, thanks to which it will work in all conditions. Extremely lightweight design makes it easy to assemble the device. The integrated web interface enables the Sunny Boy to be commissioned quickly using a smartphone or tablet. For specific conditions on the roof, e.g. shading, you can easily add power optimizers of TS4-R modules. Compliance with current communication standards guarantees that the inverter can be used in the future and can be retrofitted with an intelligent energy management module and energy storage systems from SMA at any time.

• Guarantee - 5 years

Features and benefits

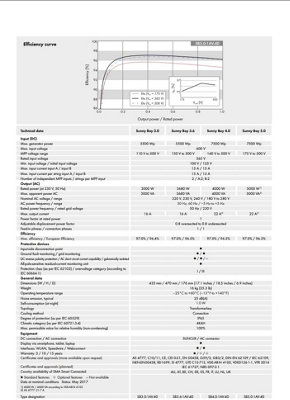

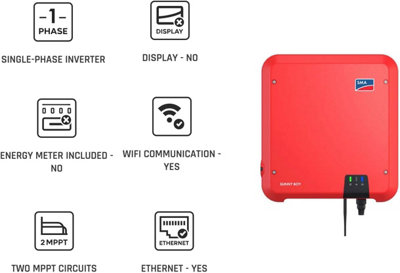

MECHANICAL DATA: WIDTH: 435.00 mm LENGTH: 470.00 mm HEIGHT: 176.00 mm WEIGHT: 17.50 kg TECHNICAL DATA: WARRANTY: 5 NUMBER OF PHASES: 1 MPPT: 2 WIFI: Yes LCO: No ETHERNET: Yes MINIMUM OPERATING TEMPERATURE: -40°C MAXIMUM OPERATING TEMPERATURE: 60°C POWER: 3000W MINIMUM OPERATING FREQUENCY: 45hz MAXIMUM OPERATING FREQUENCY: 65hz LOGISTIC PARAMETERS: GROSS WIDTH (WITH PACKAGING): 490.00 mm GROSS HEIGHT (WITH PACKAGING): 590.00 mm GROSS THICKNESS (WITH PACKAGING): 245.00 mm GROSS WEIGHT (WITH PACKAGING): 21.90 kg CERTIFICATE: U19-0139 U21-0614 report number: 16TH0348-EN50549-1_2 U22-0137 report number: 16TH0348-IEC61683_0 SG PSB-PV-00005 / CBS 070122 0006 Rev. 00 U19-0102 report number: 16TH0348-VDE0126-1-1/A1_0 U20-0839 report number: 16TH0348-G99/1-6_0

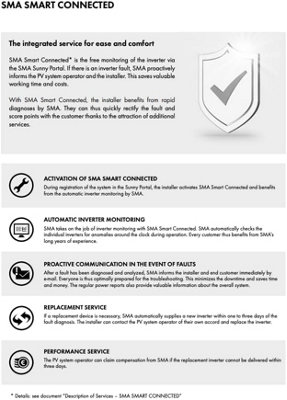

• SMA Smart Connected: Investment security included / Automatic monitoring by SMA /Proactive information and automatic
• Easy to Use: Safe plug and play installation / Commissioning via smartphone or tablet /WLAN and intuitive webserver
• Everything at a Glance: Free online monitoring /PV system data viewable via smartphone
• Future-Proof: SMA storage solutions, intelligent energy management and Smartmodule technology can be added at any time / Dynamic feed-in control
