IR Infrared Hub Distribution System 2 Sources 4 TV s Remote Control Extender

Product information

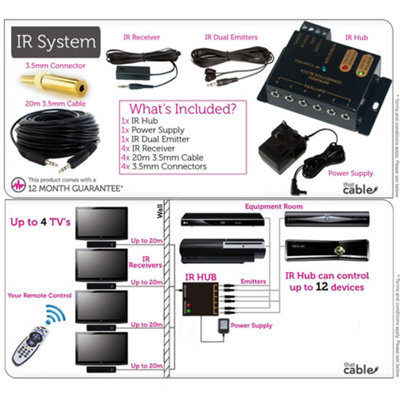

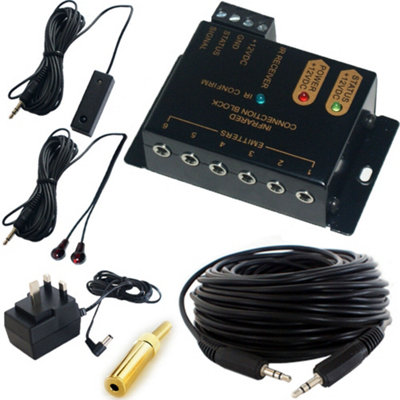

IR System - To control Hidden AV Equipment Over a Long Distance (23m) from multiple TVs (locations).OverviewOur IR system is suitable for use with all major brands of remote control including universal remote controls. It allows information gathered from IR receivers to be relayed to IR emitters to control and operate AV equipment (whether they are in an AV cupboard or another room). Up to 5 IR receivers and 12 IR emitters can be used with this hub to control up to 12 sources such as an amp, Blu-Ray player, DVD player, sky box, etc. Once installed it can be fixed into position using the supplied screws.What's Included?1 x IR Hub1 x Dual IR Emitter (3m Long) - for use with up to 2 sources1 x 12V Power Supply - for IR Hub4 x IR Receivers (3m Long)4 x 20m 3.5mm Plug to Plug Cable - For extending the IR receivers4 x 3.5mm Stereo Socket Connector - For soldering to the supplied 20m 3.5mm cable after it has been cut down to the desired length. Screws for mounting IR HubSelf-adhesive tape underneath the IR receiver and IR emittersInstallationNormally the IR hub would be located near to your AV equipment. There are six 3.5mm mono emitter sockets (as seen on the diagram above) to which up to six dual IR emitters can be connected, please search through our shop to find this product, single emitters are available too. Up to five IR receivers can be used with this hub by wiring them in parallel at the screw terminals. The screw terminals are labelled +12VDC, ground, status and signal, the IR receiver has the following wiring to the 3.5mm stereo plug, Signal is tip, ground is the ring and power is the sleeve. To extend an IR receiver cable, one of the supplied 20m '3.5mm plug to plug cable' should be used along with a 3.5mm stereo socket connector. One of the plugs can be cut off the supplied cable, the cable should be cut to the desired length and the 3.5mm socket soldered on. If you do not wish to solder the connector on and are happy with the 20m cable then a '3.5mm coupler a

• Guarantee - 1 year
