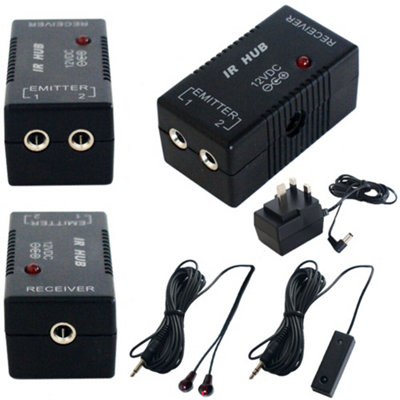

IR Infrared Hub Repeater Remote Control System 1 Receiver & Emitter AV Extender

Product information

Our IR system is suitable for use with all major brands of remote control including universal remote controls. It allows information gathered from IR receivers to be relayed to IR emitters to control and operate AV equipment . Up to 2 IR receivers and 4 IR emitters can be used with this hub to control up to 4 sources such as an amp, Blu-Ray player, DVD player, sky box, for use with up to 2 sources1 x 12V Power Supply - for IR HubSelf-adhesive tape underneath the IR receiver and IR emittersInstallationNormally the IR hub would be located near to your AV equipment.There are two 3.5mm mono emitter sockets to which up to two dual IR emitters can be connected, single emitters are available too. Up to two IR receivers can be used with this hub by using a 3.5mm stereo splitter adapter in the IR receiver socket. When two IR receivers are being used we recommend only extending the IR receiver cables up to 15 metres each. When only one IR receiver is being used, we recommend not exceeding 30 metres for the total cable length To extend an IR receiver cable, a '3.5mm extension cable' should be used, alternatively you can make your own cable to a set length by using, CAT5 cable and 3.5mm stereo plug and socket connectors. IR emitters should be positioned in front of, above, below or fixed on to the IR receiver. IR receivers should be positioned in the room where you would like to control your equipment from. They will then pick up any IR commands sent from your remote control and relay them back to the hub.Dimensions-47mm(l)x25mm(w)x22mm (d)12V DC Socket with LED indicator 2 x IR emitter output connections (3.5mm mono sockets)1 x 12V IR receiver input connection (3.5mm stereo socket). Can be used with many brands of IR receiver. IR ReceiverCFL Friendly-This IR receiver works in most lighting environments, even areas with compact fluorescent lighting.IR Confirmation LED - This is to confirm that an IR command has been picked up from your remote controlWide/Dual Band IR Receiver.

• Guarantee - 1 year
