IR Infrared Hub Repeater System Remote Control Extender Magic Eye Receiver Kit

Product information

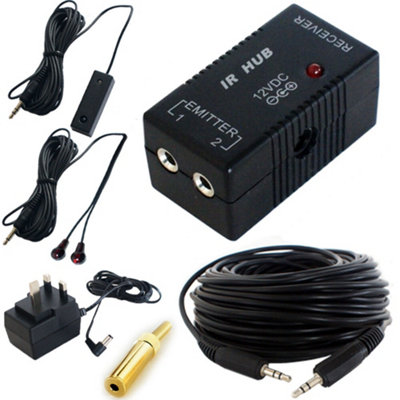

IR Hub Kit - To control Hidden AV Equipment Over a Long Distance (23m)OverviewOur IR system is suitable for use with all major brands of remote control including universal remote controls. It allows information gathered from IR receivers to be relayed to IR emitters to control and operate AV equipment (whether they are in an AV cupboard or another room). Up to 2 IR receivers and 4 IR emitters can be used with this hub to control up to 4 sources such as an amp, Blu-Ray player, DVD player, sky box, etc.What's Included?1 x IR Hub1 x IR Receiver (3m Long)1 x Dual IR Emitter (3m Long) - for control of 2 sources.1 x 12V Power Supply - for IR Hub1 x 20m 3.5mm Plug to Plug Cable - For extending IR Receiver1 x 3.5mm Stereo Socket Connector - For soldering to the supplied 20m 3.5mm cable after it has been cut down to the desired length. Self-adhesive tape underneath the IR receiver and IR emittersInstallationNormally the IR hub would be located near to your AV equipment. There are two 3.5mm mono emitter sockets (as seen on the diagram above) to which up to two dual IR emitters can be connected, please search through our shop to find this product, single emitters are available too. Up to two IR receivers can be used with this hub by using a 3.5mm stereo splitter adapter in the IR receiver socket. When two IR receivers are being used we recommend only extending the IR receiver cables up to 15 metres each. When only one IR receiver is being used, we recommend not exceeding 30 metres for the total cable length. IR receivers are available in our shop too, they come in pre-set lengths of 3 metres. To extend the IR receiver cable, a 20m '3.5mm plug to plug cable' is supplied along with a 3.5mm stereo socket connector. One of the plugs can be cut off the supplied cable, the cable should be cut to the desired length and the 3.5mm socket soldered on. If you do not wish to solder the connector on and are happy with the 20m cable then a '3.5mm coupler adapter' could be purchased to avoid

• Guarantee - 1 year
