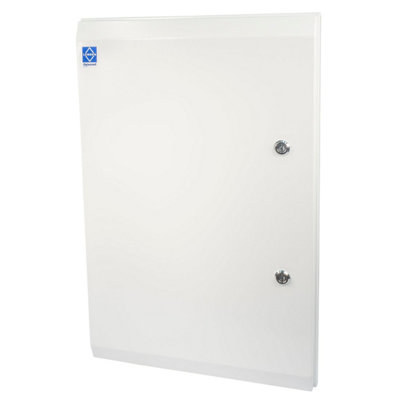

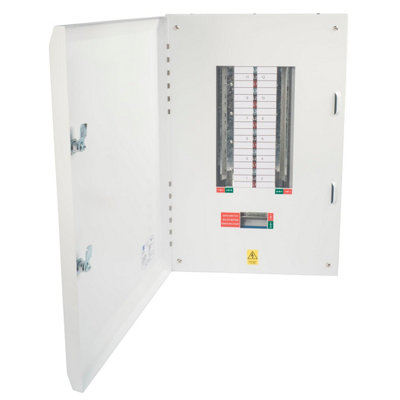

Lewden E-TPN12LW 12 Way 125A TP+N Three Phase Distribution Board without Incomer
Product details
Product information
12 Way 125A TP+N Three Phase Distribution Board without Incomer Lewden E-TPN12LW Supplied unpopulated for maximum design flexibility. Compatible with Lewden 10kA MCB's & RCBO's. Compatible with Lewden 6kA MCBs & RCBO's with the use of additionalmounting kit. Designed for commercial premises. Supplied with lock & key for security. Optimal space for simple & safe wiring. The Lewden E-TPN12LW Distribution Board provides maximum design flexibility for commercial premises. Compatible with Lewden 10kA and 6kA MCB's & RCBO's, this 125A TP+N Three Phase Board can be easily wired for optimal space and safety. It also comes with a secure lock and key for added security. . Rated operating voltage 230/400V IP Protection degree IP2XC Manufacturing material Steel Frequency 50Hz Phase 3 Execution Wall mounting Modules Number 12way (36 x single phase) Rated current 125A Dimensions 700x458x120mm (HWD) Standards BS EN 60439-3
- Guarantee - 1 year
Specifications
| Weight (g) | 14850g |
|---|---|
| Product code | 5026992047712 |
