Motor Forward/Reverse Controller Timing Delay Time Cycles Relay

Product information

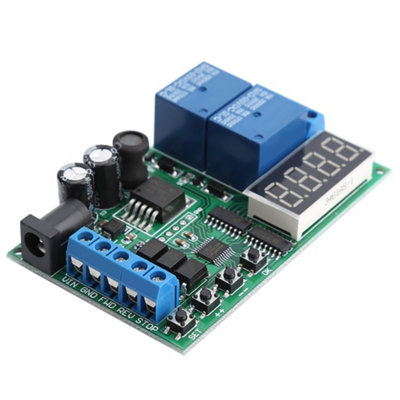

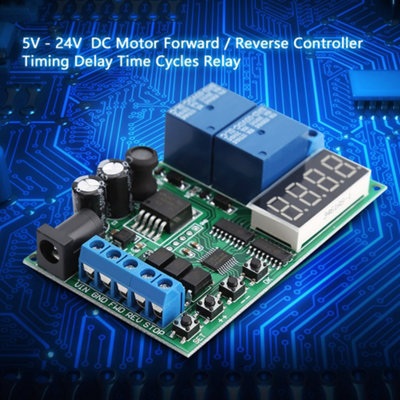

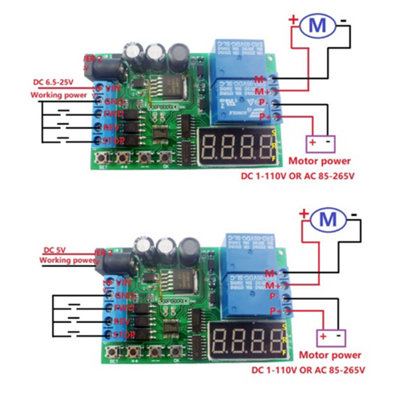

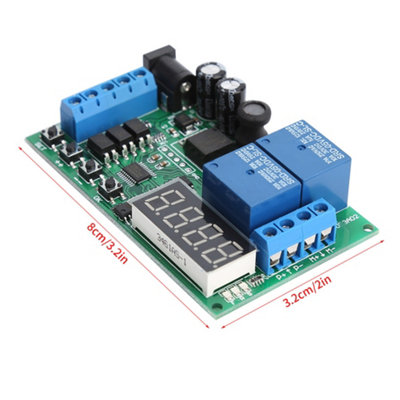

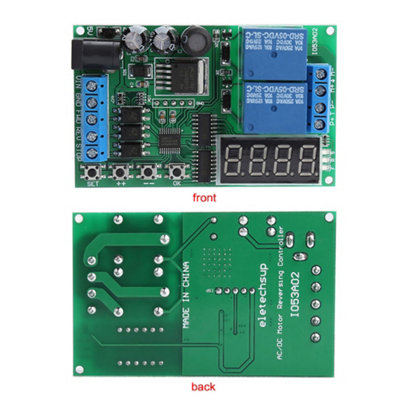

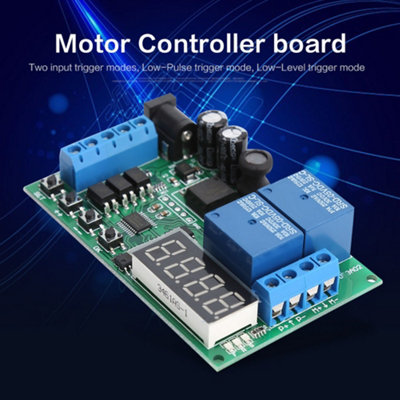

Product features: Working current: (normal mode) standby current 41mA, working current 83mA; (energy saving mode) standby current 7mA, working current 44mA. Two input trigger modes: low pulse trigger mode, low level trigger mode. Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes. Number of cycles: no cycle, 2-99 cycles, always cycle. Relay load current is recommended to be less than 5A. Interface: DC 5.5MM female socket: power supply 1, DC 5V power supply. VIN: Power supply 2 positive, DC 6.5-25V power supply GND: Power supply 2 negative M+: Motor positive M-: Motor negative P+: Motor power positive P-: Motor power negative Specifications: Power supply: DC 6.5-25V, DC 5V Relay load current: Size: 8*5cm/3.2*2inch Weight: about 51g/1.8oz Timing unit: 0.1s, 1s, 1min Relay action: Motor forward rotation: Relay 1 is closed, Relay 2 is disconnected, and F LED indicator flashes. Motor reverse: Relay 1 is disconnected, Relay 2 is closed, and the R LED indicator flashes. Motor stop: Relay 1 is disconnected, Relay 2 is disconnected, and the S LED indicator flashes. Factory setting: Press and hold the "++" and "--" keys for 5 seconds at the same time. Function mode: F-01: After power is turned on, the motor rotates forward for T1 time; then the motor stops for T3 time; then the motor reverses for T2 time; and this cycle repeats N times. After the STOP port is triggered, the motor stops working immediately. (FWD and REV ports are invalid) F-02: This function is a variant of F-01. F-01 runs directly after power-on, while F-02 needs to trigger the FWD or REV port to run.
