Optimum 7 Day Socket Box Timer Time Switch Surface Single Wall Pattress
Sold & shipped by SPARES2GO
Available online only and not stocked in B&Q stores
£27.49
Product details
Product information

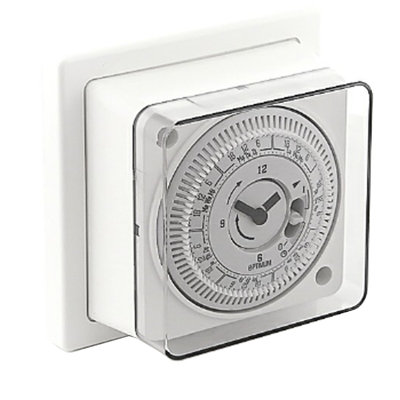

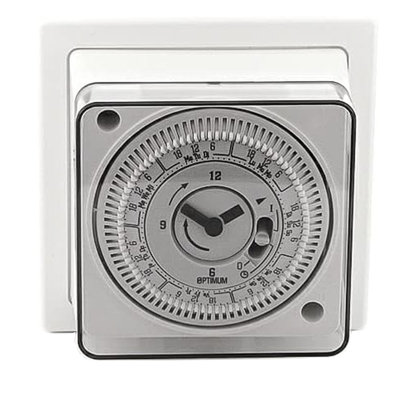

Optimum 7 Day Socket Box Timer Switch OP-SBSW
- Guarantee - 6 months
Features and benefits
Brand new, captive-tappet 7 day time switch. Each tappet operates the output for a period of 2 hours. The timer is suitable for installation on a surface or in-wall pattress box. The 7 day dial controls a volt-free changeover, switch, with a resistive rating of 16 amperes.

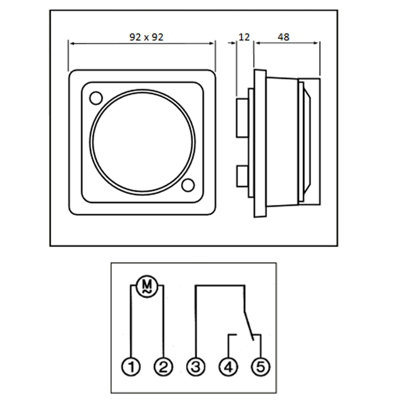

- Dimensions: 92 x 92 x 48 (See Drawing Below) -- Weight 160g
- Connections 5 x Wire-protect Screw Terminals + Earth Park
- Power Consumption 1va @ 230v 50hz
- Resistive Load 16 Amperes -- Inductive Load 8 Amperes (Cos Ø 0.6)
- Minimum Load 100ma @ 20v Ac/dc
- Temperature Rating -20t55
- Accuracy Main Synchronised (Typically +/- 2.5 Sec / Day)
- Minimum Switching 2 Hours -- Manual Override Fix on / Timed / Fix Off
Specifications
| Brand | Optimum |
|---|---|
| Pack quantity | 1 |
| Product height | 92mm |
| Product width | 92mm |
| Product depth | 48mm |
| Product code | 5028415005491 |
