Optimum Synchronous Timer Module 24 Hour Time with Manual Override OP-FM1STUH0
Sold & shipped by SPARES2GO
Available online only and not stocked in B&Q stores
£16.49
Product details
Product information
Optimum Synchronous Timer Module 24 Hour Manual Override OP-FM1STUH0
- Guarantee - 6 months
Features and benefits

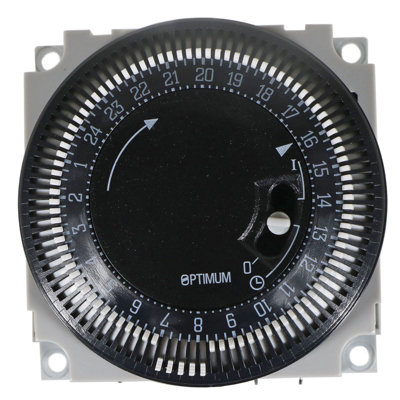

Captive-tappet 24-hour time switch module. Each tappet operates for 15 minutes. The timer is suitable for sub-panel mounting. The 24 hour dial controls a volt-free changeover switch, with a resistive rating of 16 amperes.

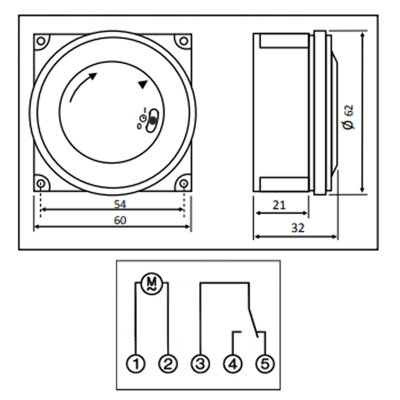

- Dimensions: 60 x 60 x 32

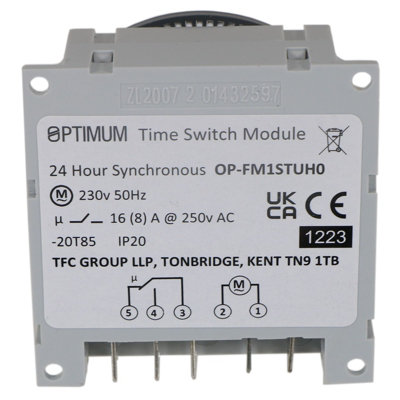

- Connections: 5 x Din 6.3mm Tab Terminals
- Power Consumption: 1va @ 230v 50hz
- Resistive Load: 16 Amperes, Inductive Load: 8 Amperes (Cos Ø 0.6), Minimum Load: 100ma @ 20v Ac/dc
- Temperature Rating: -20t85
- Accuracy: Main Synchronised (Typically +/- 2.5 Sec / Day)
- Minimum Switching: 15 Minutes
- Manual Override: Timed, Fix on, Fix Off
Specifications
| Brand | Optimum |
|---|---|
| Pack quantity | 1 |
| Product height | 60mm |
| Product width | 60mm |
| Product depth | 32mm |
| Timer | 24 hour mechanical |
| Product code | 5028415005590 |
