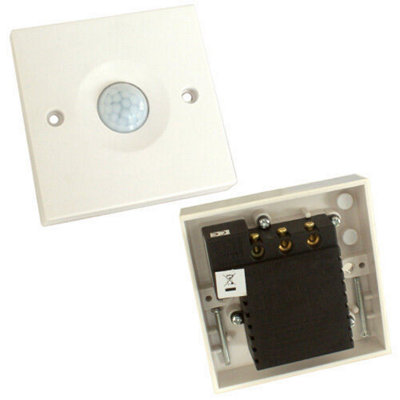

PIR Motion Sensor Wall Light Switch 1 Gang Way 10A Ceiling Movement Automatic

PIR Motion Sensor Wall Light Switch 1 Gang Way 10A Ceiling Movement Automatic

Sold & shipped by LoopsDirect.com

Available online only and not stocked in B&Q stores

£
28.49
Loading
Checking availability...

Product details

Product information

    10A PIR Switch - 1 Way - 5m RangePlease note - 3 Terminals on back - Load in, Load out, Neutral (must always be connected). We also sell a PIR product with a switch on the faceplate for keeping a circuit constantly live or dead, please search through our shop.Overview - This PIR switch is ideal for areas where lights and/or a fan are only required when the area is occupied. It works by detecting and monitoring body heat in an area, when the area becomes vacant, the switch will go off after a chosen duration (1-16 minutes). Perfect for use in toilets, warehouses and corridors to reduce the amount of electricity used and save money on energy bills. It is suitable for use with fluorescent lights, incandescent lamps, energy saving lamps or fans. This light switch can be used as a replacement or new switch with a 250V rated consumer unit (fuse box) as found in most UK houses. It can be used with a standard single back box and requires a 25mm depth as a minimum. If required more than one of these PIR switches can be linked in parallel to

    make a circuit live, this could be useful at the top and bottom of a stair case.

    Specification -Power rating - 240V - 50/60HzCurrent Rating - 10A for incandescent lamps, 3A for energy saving lamps, fluorescent lamps and fans.Colour - White Photocell included - This allows you to adjust in what sort of lighting conditions the PIR switch becomes active (5 to 1000 lux). For example, only at night. Time lag on vacant area - 1 to 16 minutes (adjustable)Coverage - 120 degress within a 5 metre distance.Range - Range can be increased to 8m when room temperature is 20 degrees or lower. In higher temperatures the detection area is reducedStandby power consumption - <0.2WFor optimum use, the distance between the lamp and this switch should be greater than 0.5mDimensions - 85mm (W) x 85mm (H) x 33mm (D)Standards - ROHS

    • Guarantee - 1 year

    Specifications

    Pack quantity1
    Product width200mm
    Product height200mm
    Product weight0.12g
    Product code5055538126628
