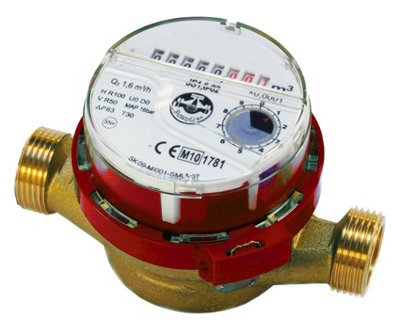

Powogaz 3/4 Inch Hot Water Meter Flow 15mm Pipe High Quality Meters 1,6 m3/h

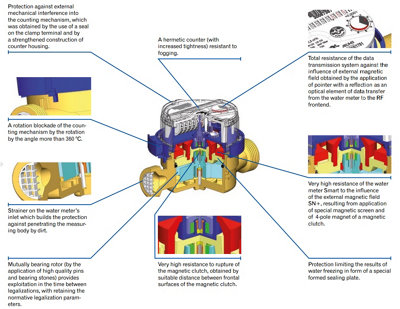

For measuring the flow and volume of warm water with a temperature up to 90C in the closed-circuit system with the full flow of the flux, and on the maximum working pressure up to 16 bar (PN16). Suitable for installation in the horizontal hoses (pipelines) with the counter directed upwards (H) and in vertical or horizontal hoses with the counter directed sidewards (V). Water meters SMART+ in standard version are equipped with low eight-barrel counter (IP65), antimagnetic protection SN+, brass housing and they are adapted to operation in the systems of remote data transfer (AMR). Features and advantages: 3/4" male thread BSP with possibility of removing adaptor and switch to 1" male bsp thread;Maximum flow rate: 4 m3/h;Resistant to strong external magnetic field;Preequipped for installation of: radio module for communication in the Wireless M-Bus, impulse module and M-Bus module;Readings reliability fulfils the newest metrological requirements of MID;Easy reading of the water meter counter;Hermetic counter (with increased tightness) resistant to steaming;Counter mechanism with blockade against multiple rotating, at rotation angle more than 360deg;Protection against mechanical tampering;Protection limiting the results of water freezing;Outlet port of water meter housing suitable for optional installation of a return valve;Double-sided rotor bearing.
