Prysmian 6181Y Grey & Yellow 3 core Meter tails & earth cable 16mm² x 3m, Pack of 3
Product details
Product information

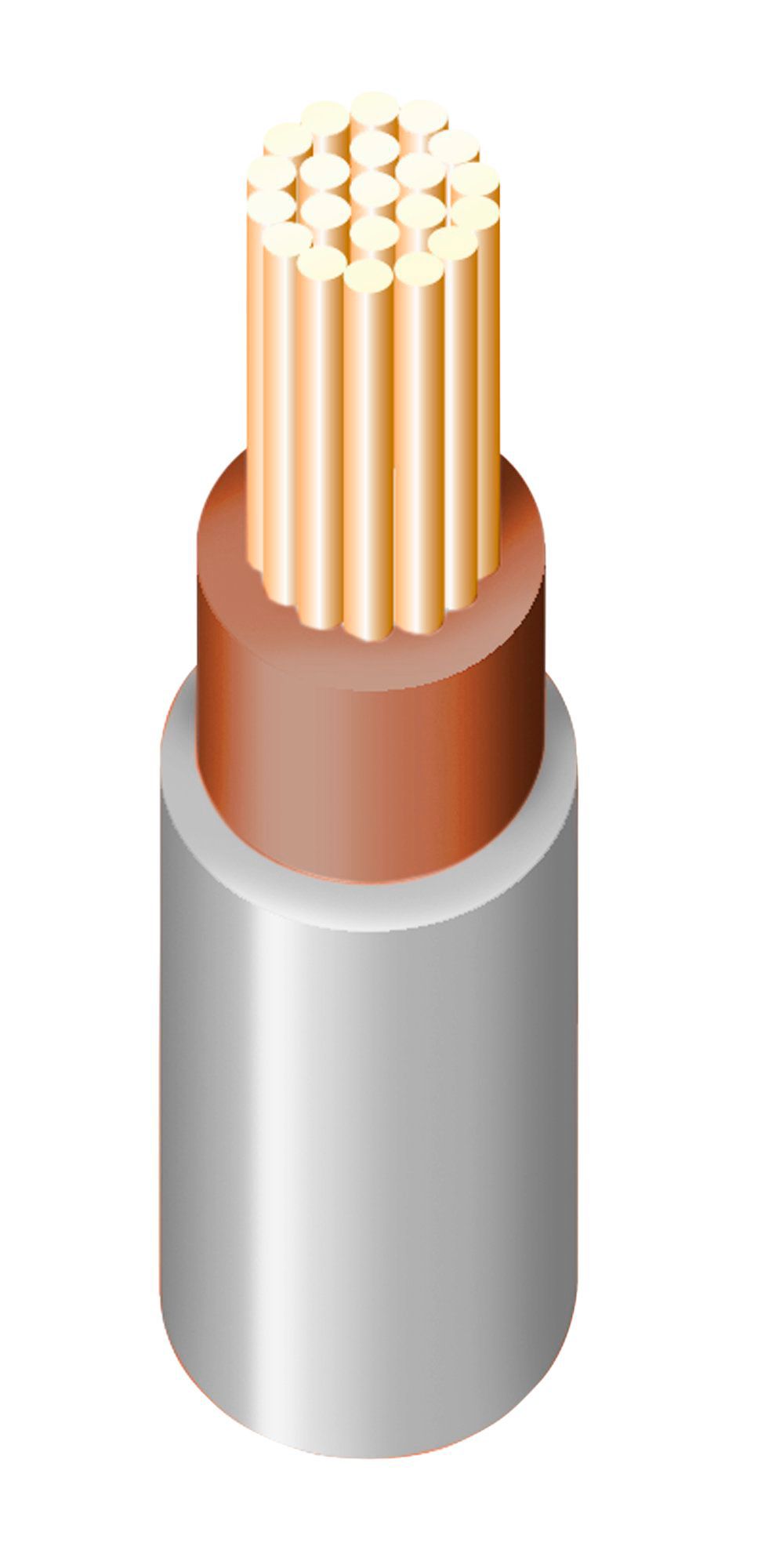

This 3m multicoloured meter tail cable pack is a reliable connection between your meter and fuse box. Featuring three durable PVC-sheathed cores and stranded copper conductors, these meter tails can handle up to 87A to power your home. The flexible, round cables come neatly coiled for tangle-free storage. At only 1.75kg, this handy cable pack is easy to transport and install.
- Guarantee - 1 year
- Meter tails
- CE marked
- Stored in a coil
Features and benefits
- 450/750V
- Amps - 87 / earth wire 16mm is 76
- Maximum voltage for 3-phase is 750V.
- Maximum voltage for single phase is 450V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Brand | Prysmian |
|---|---|
| Pack quantity | 3 |
| Cable length | 3m |
| Colour | Grey & Yellow |
| Number of pieces | 3 |
| Maximum operating temperature | 70°C |
| Minimum operating temperature | -15°C |
| Sheath properties | Standard |
| Cable code | 6181Y |
| Number of cores | 3 |
| Outer sheath material | PVC |
| Conductor area | 16mm² |
| Number of wire strands | 7 |
| Product code | 5019325361951 |
Reviews
4.5 / 5(2 reviews)Timwr1 - 4 / 5 - 12/10/2022
Beware 7 core not 19 core but does the job
Bought this for a tight fitting CU but was 7 core when I received it, not 19 core as per photo. Did the job fine bit would have been much easier with 19 core tails.
MicroSteve - 5 / 5 - 07/02/2014
Cheapest tails I could find
The product was at the desk waiting for me. The cables were as described. I had checked several different suppliers and these were the cheapest that I could buy.
