Prysmian Black 3-core Armoured Cable 4mm² x 25m
Product details
Product information

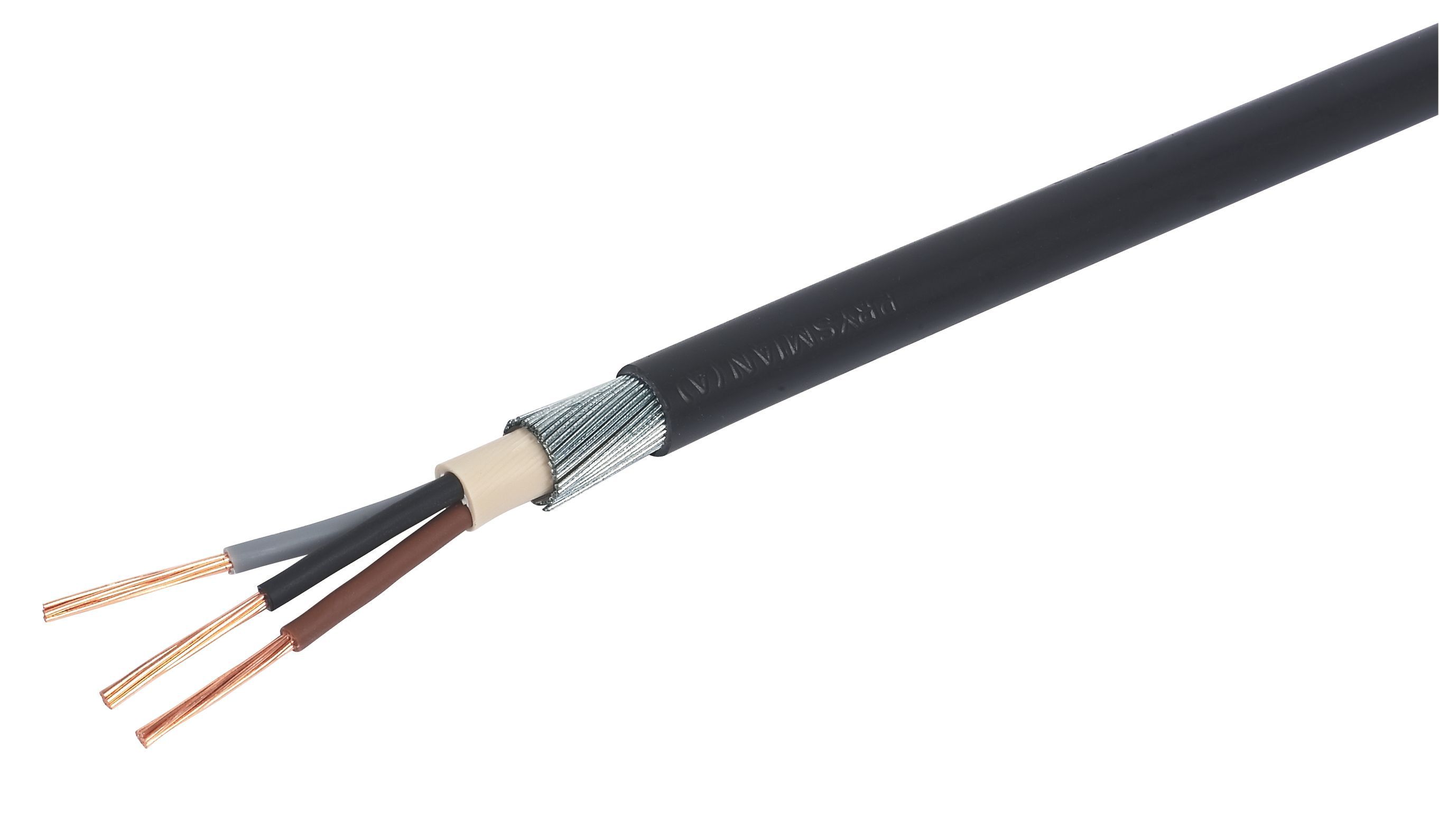

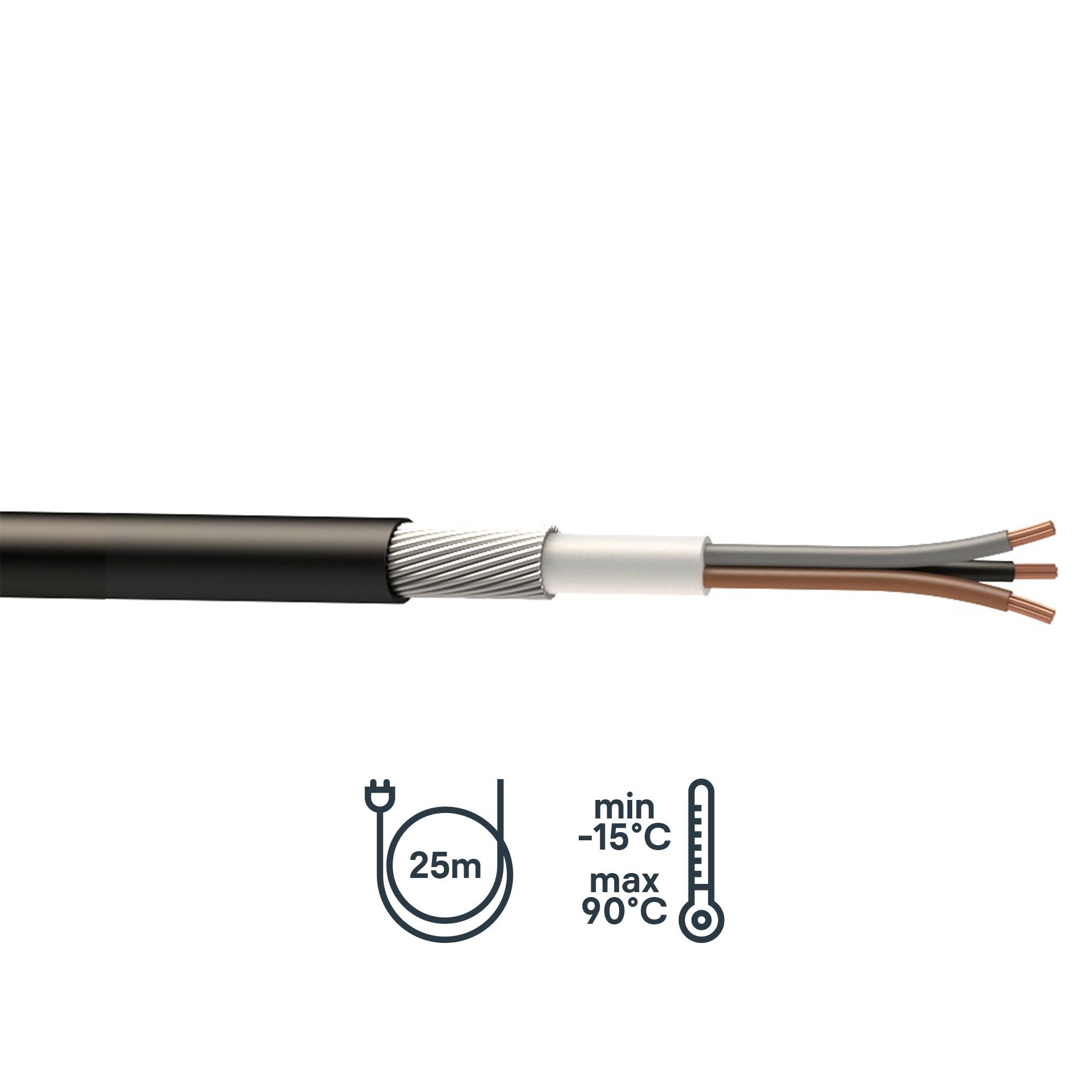

This is a 25m long, black, circular copper multi-core PVC-insulated and sheathed power cable. It is rated at 49A 1000V, suitable for mains and low voltage industrial wiring and distribution applications. The cable is manufactured in the UK to BS 5467 standards. It has an armoured PVC outer sheath and contains multiple copper cores. The cable is supplied coiled for convenient installation and has a total weight of 11kg.
- Guarantee - 1 year
- Cable type - Armoured
- CE marked
- Stored in a coil
- Non fire rated
Features and benefits
- Prysmian BS 5467 is the low voltage armoured cable for industrial wiring and mains distribution
- 49 A 3 core cable
- Can also be laid direct in ground or in ducts in free draining soil, or embedded in concrete.
- The design of Prysmian BS 5467 is particularly robust and is well suited to areas at risk of mechanical damage.
- Maximum voltage for 3-phase is 1000V.
- Maximum voltage for single phase is 600V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Amp rating | 49A |
|---|---|
| Brand | Prysmian |
| Cable code | 6943X |
| Cable length | 25m |
| Colour | Black |
| Conductor area | 4mm² |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 7 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 4mm² |
| Circuit protective conductor (CPC) | Without CPC |
| Number of CPC cores | 0 |
| Product code | 5019325287527 |
