RF REMOTE FOR MICROWAVE SENSOR SKU T343X
Product details
Product information

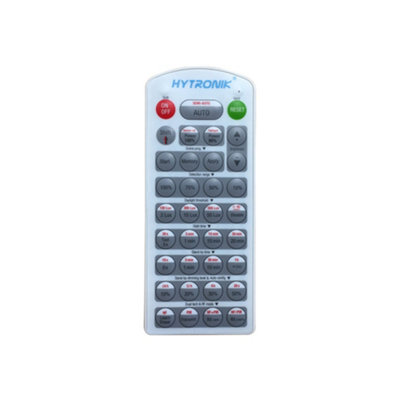

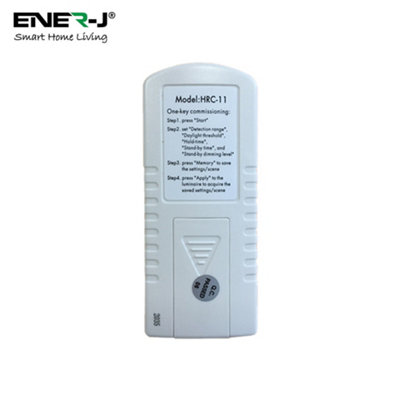

How to Use this Remote with our Microwave Sensor: • Permanent ON/OFF [button (1)]Press button (1) to select permanent ON or permanent OFFmode.*Press button (2)/(4) to resume automatic operation.The mode will change to AUTO Mode after power failure.• Reset [button (2)]Press button (2), all setting go back to the default settings:Detection range: 100%Hold time: 1minStand-by period: 5 min.Stand-by dimming level: 20%Daylight sensor: LUX disable• Shift [button (3)]Press button(3), the LED on the top left corner will flash toindicate mode selection.All values / settings in RED are valid for 20 seconds.• Auto Mode [button (4)]Press button (4) to initiate automatic mode. The sensorstarts working and all settings remain as before the lightwas switched ON/OFF.• Semi-auto Mode [button (3) & (4)]1. Press button (3) Shift (the red LED is on for indication),2. Press button (4) to initiate semi-auto mode. The fixtureis manually on by push-switch and automatically off insemi-auto mode.• Power Output [button (5)]Press button (5), the light output shifts between 80% and100%.NOTE: The function of "Sensor off" and "Twilight" aredisabled.• Brightness +/- [button (6)]Press button (6) to adjust the light brightness between10%~100%.
- Guarantee - 1 year
Specifications
| Brand | Ener-J |
|---|---|
| IP rating | IP20 |
| Pack quantity | 1 |
| Product height | 5mm |
| Product length | 5mm |
| Product weight | 100g |
| Product width | 5mm |
| Product code | 5060774553039 |
