Selectric DSL11-26 M5 Unswitched Socket 5A 1 Gang (Matt Black)
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£
16.55
Checking availability...
Product details
Product information

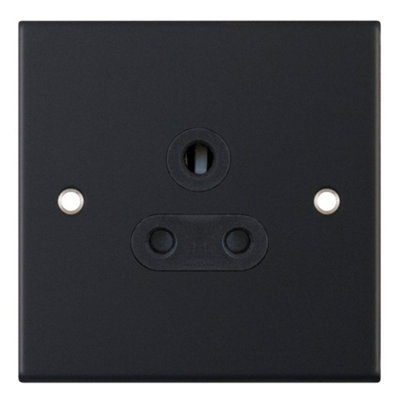

Matt Black unswitched Socket
- Guarantee - 1 year
- Only fixings included
Features and benefits
- Normally used to connect occasional table lamps etc into the fixed wiring
- 5 amp maximum load
- Premium grade steel, Minimum back box depth required 25mm
- ASTA approved. Class I - earth connection required
- Bottom pins 4mm diameter, centres 18mm. Earth pin 6mm diameter
- Fixing screws included
- Dimensions: 86mm wide x 86mm tall x 5mm deep plate. 60.3mm fixing centres
- Dimensions: 86mm wide x 86mm tall x 5mm deep plate. 60.3mm fixing centres
Specifications
| Brand | Selectric |
|---|---|
| Model name/number | DSL11-26 |
| Colour | Black |
| Pack quantity | 1 |
| Material | Steel |
| Switch/socket profile | Raised square |
| Screwed/screwless | Screwed |
| Switched/unswitched | Unswitched |
| Number of gangs | 1 |
| Minimum box depth required | 25mm |
| Insert colour | Black |
| Amp rating | 5A |
| Product code | 5025117018996 |
